Turning Insert CNMG

Turning insert CNMG, rhombic shape 80°, clearance angle 0°, double-sided, in several brand and references. Contact us for your desired insert.



First choice for external turning and boring of all types of steel, according to the technical information of the insert. Rhombic shape with medium nose angle means increased vibration tendency, but stronger cutting edge, suitable for roughing, medium finishing and finishing.

specifications

ISO code CNMG
Shape Rhombic 80°
Clearance angle 0°
Tolerance Class M
Hole configuration Cylindrical hole
Chipbreaker Double-sided

material

Articles

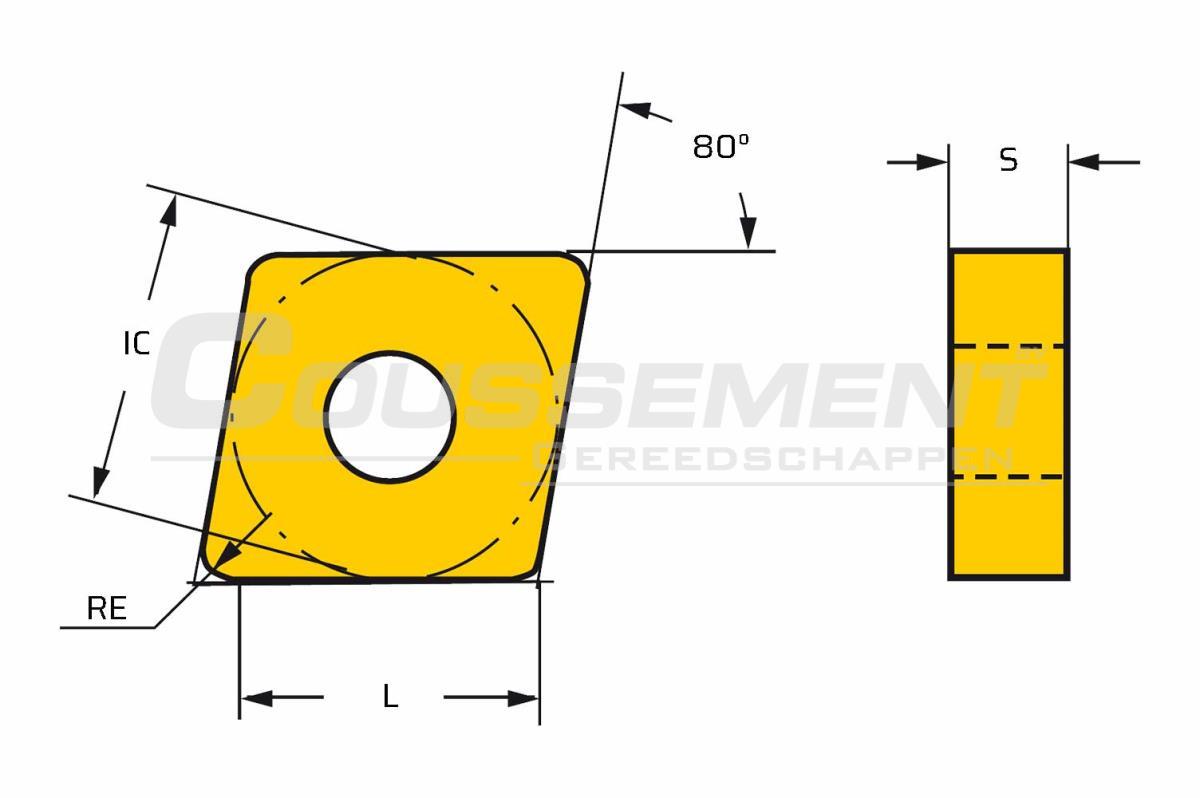

Article code L mm IC mm S mm RE mm
CNMG 090404 9,67 9,52 4,76 0,4
CNMG 090408 9,67 9,52 4,76 0,8
CNMG 120402 12,9 12,7 4,76 0,2
CNMG 120404 12,9 12,7 4,76 0,4
CNMG 120408 12,9 12,7 4,76 0,8
CNMG 120412 12,9 12,7 4,76 1,2
CNMG 120416 12,9 12,7 4,76 1,6
CNMG 160608 16,12 15,88 6,35 0,8
CNMG 160612 16,12 15,88 6,35 1,2
CNMG 160616 16,12 15,88 6,35 1,6
CNMG 190608 19,34 19,05 6,35 0,8
CNMG 190612 19,34 19,05 6,35 1,2
