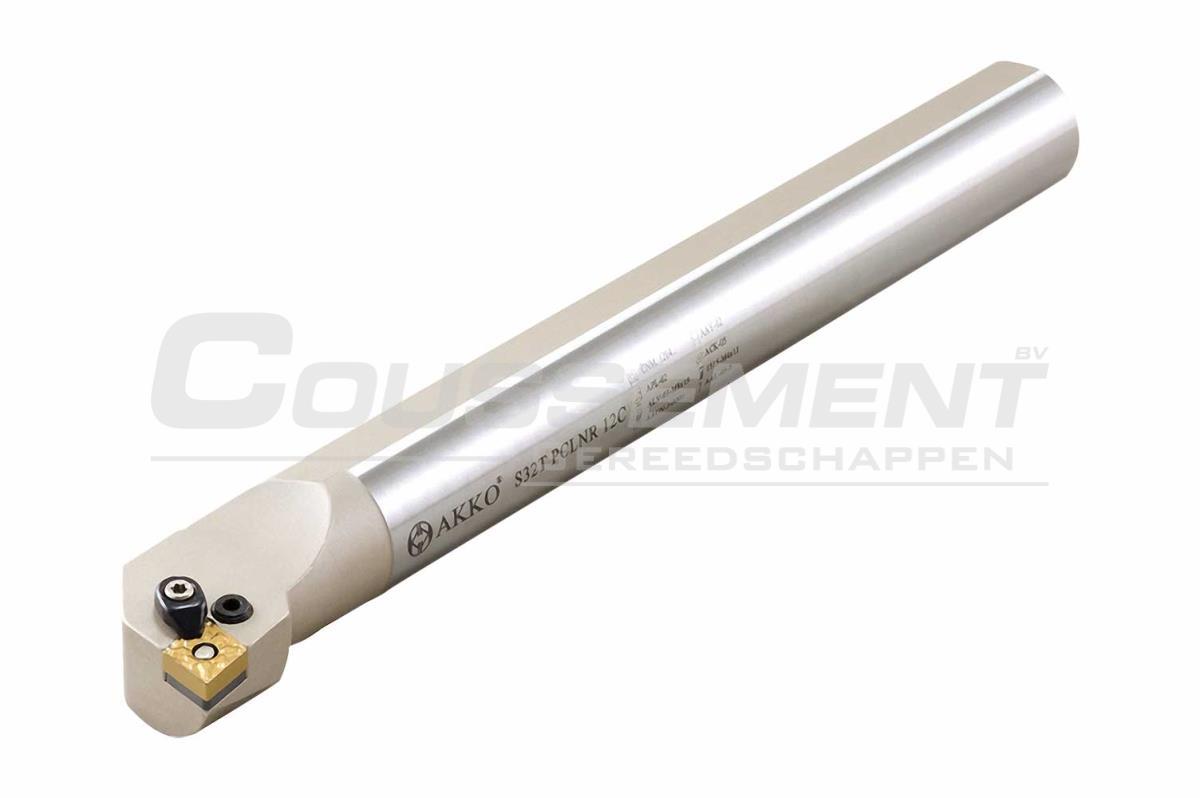

Boring Bar With Internal Coolant PCLNR/L Akko A-PCLN

Boring bar, according to ISO code PCLNR (right-hand) or PCLNL (left-hand), equiped with internal coolant. Brand Akko with reference A-PCLN.

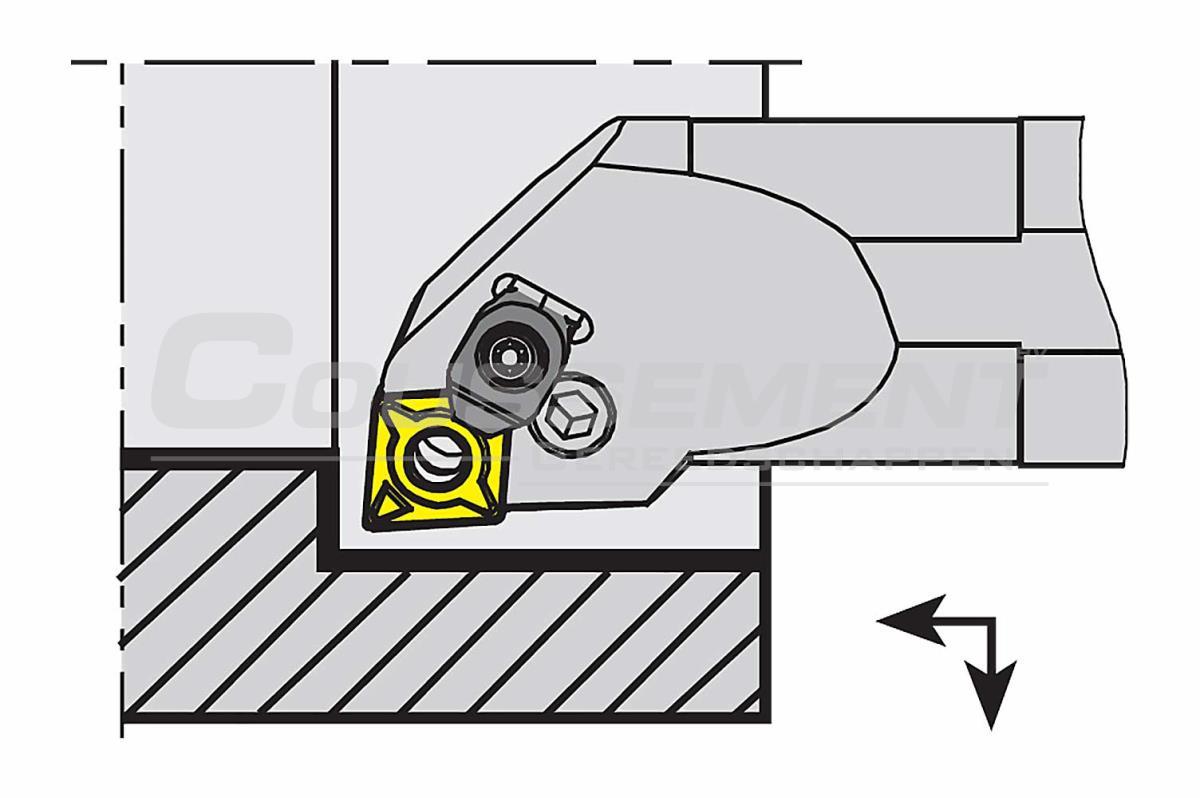

For clamping turning insert CNM., for internal turning with right or left direction of rotation according to turning toolholder.

specifications

Brand Akko
Reference A-PCLN
ISO code PCLNR (Right-hand) / PCLNL (Left-hand)
Type Internal
Coolant Internal coolant
Clamping Lever clamping
Entering angle (KAPR) 95°
Cutting direction Right-hand / Left-hand
Shank Rectangular, rounded

ARTIcles CNM. 0903..

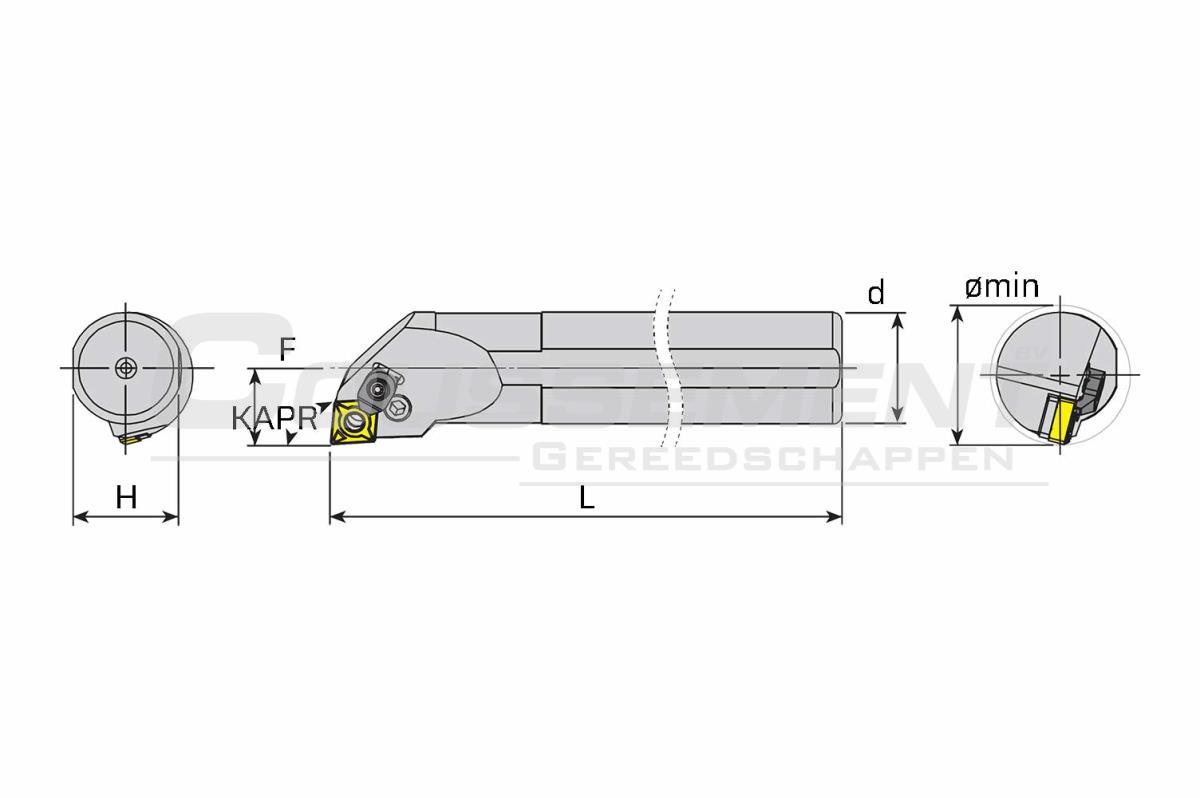

Article code d mm H mm L mm F mm ømin mm
A20P PCLNR 09 20 18,3 170 13 25
A20P PCLNL 09 20 18,3 170 13 25

articles cnm. 1204..

Article code d mm H mm L mm F mm ømin mm
A25R PCLNR 12C 25 23 200 17 32
A25R PCLNL 12C 25 23 200 17 32
A32S PCLNR 12C 32 30 250 22 40
 A32S PCLNR 12C 32 30 250 22 40
A40T PCLNR 12C 40 37,5 300 27 50
A40T PCLNL 12C 40 37,5 300 27 50
A50U PCLNR 12C 50 47 350 35 63
A50U PCLNL 12C 50 47 350 35 63

articles cnm. 1606..

Article code d mm H mm  L mm F mm  ømin mm
A32S PCLNR 16C 32 30 250 22  40
A32S PCLNL 16C 32 30 250 22 40
A40T PCLNR 16C 40 37,5 300 27 50
A40T PCLNL 16C 40 37,5 300 27 50
A50U PCLNR 16C 50 47 350 35 63
A50U PCLNL 16C 50 47 350 35 63

articles cnm. 1906..

Article code d mm H mm L mm F mm ømin mm
A40T PCLNR 19C 40 37,5 300 27 50
A40T PCLNL 19C 40 37,5 300 27 50
A50U PCLNR 19C 50 47 350 35 63
A50U PCLNL 19C 50 47 350 35 63
