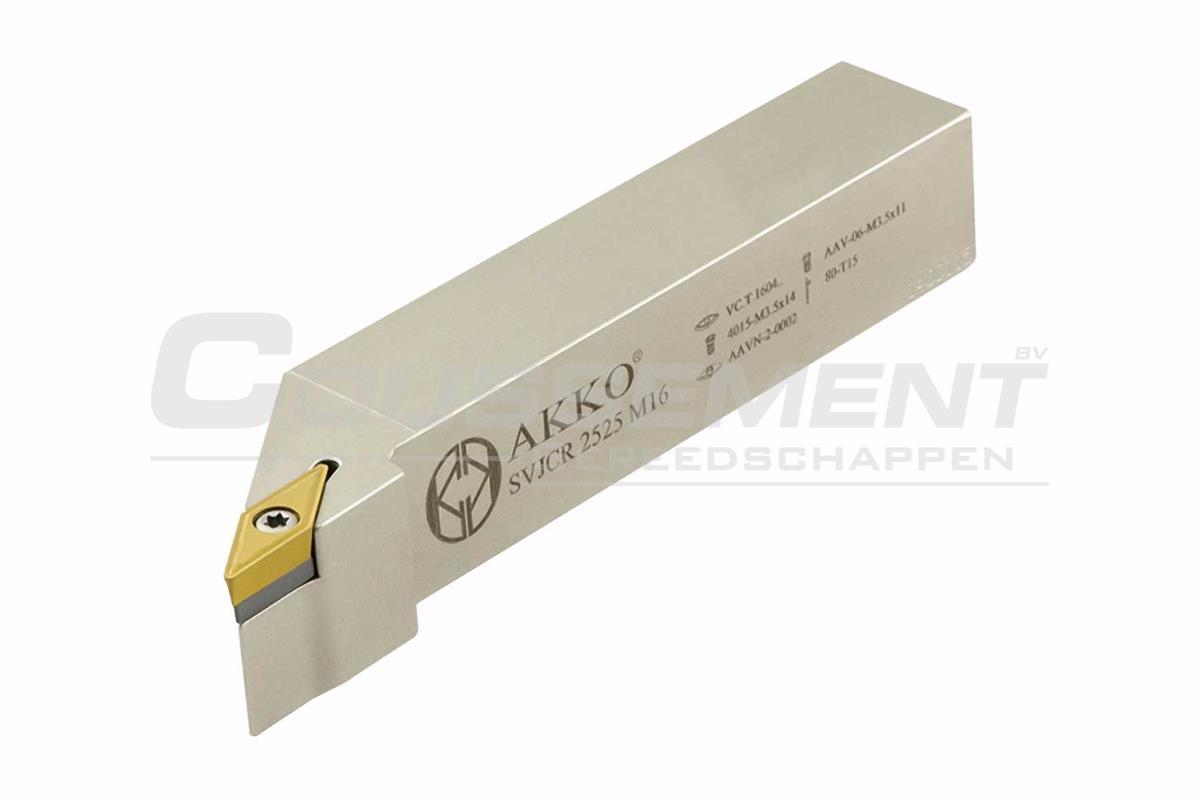

External Turning Toolholder SVJCR/L Akko SVJC

External turning toolholder, according to ISO code SVJCR (right-hand) or SVJCL (left-hand). Brand Akko with reference SVJC.

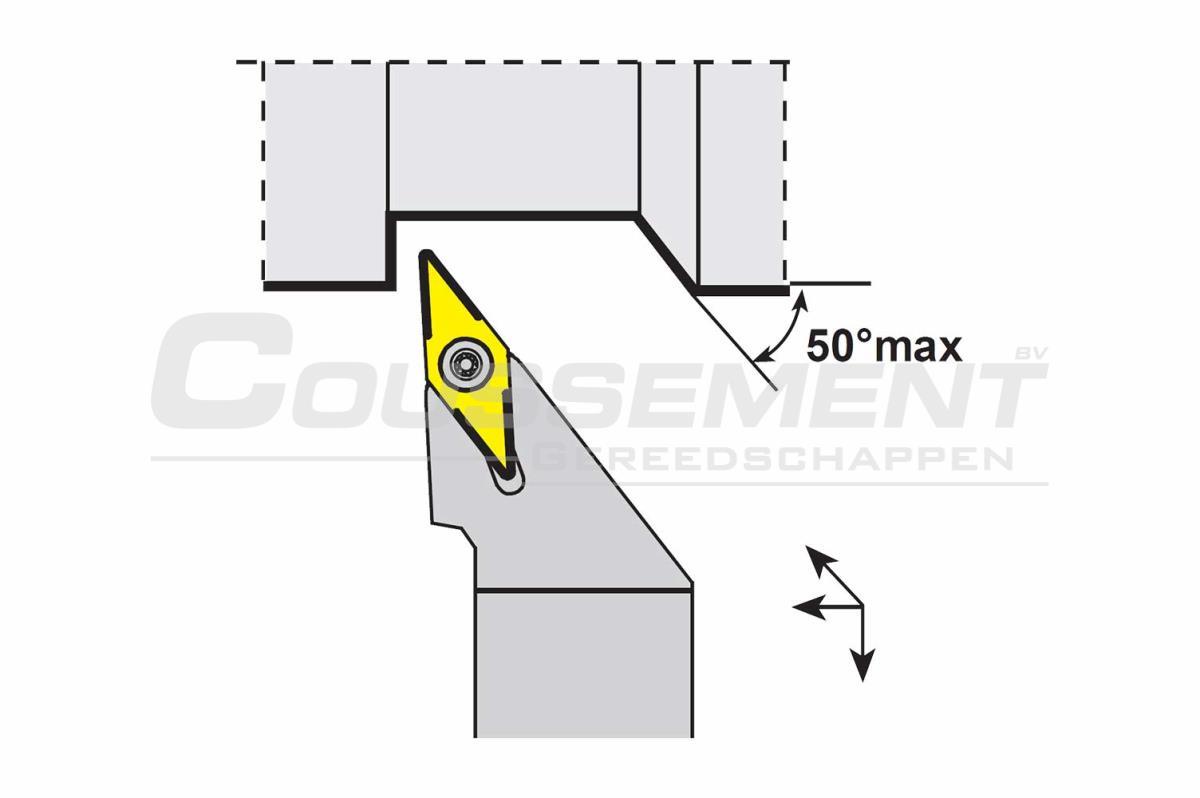

For clamping turning insert VC.T, for external turning with right or left direction of rotation according to turning toolholder.

specifications

Brand Akko
Reference SVJC
ISO code SVJCR (Right-hand) / SVJCL (Left-hand)
Type External
Coolant -
Clamping Screw clamping
Entering angle (KAPR) 93°
Cutting direction Right-hand / Left-hand
Shank Square

articles VC.T 1103..

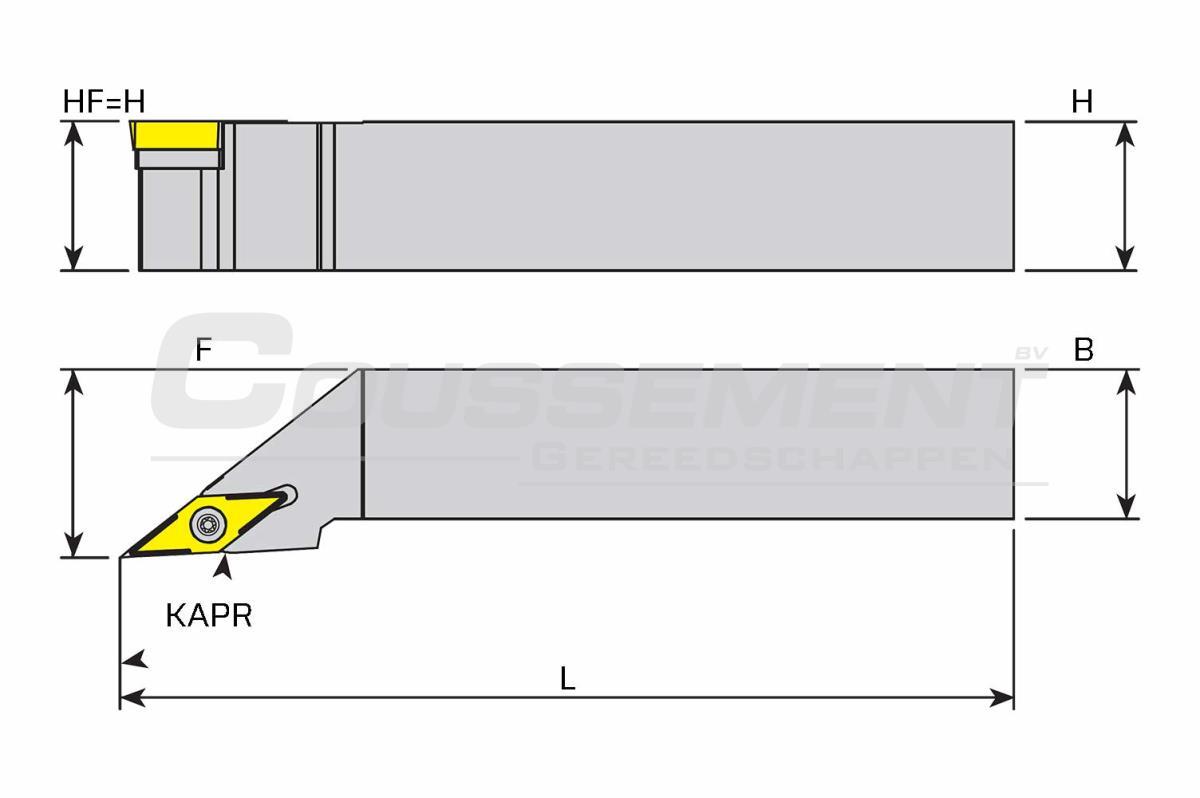

Article code H mm B mm L mm F mm
SVJCR 1212 F11 12 12 80 16
SVJCL 1212 F11 12 12 80 16
SVJCR 1616 H11 16 16 100 20
SVJCL 1616 H11 16 16 100 20
SVJCR 2020 K11 20  20 125 25
SVJCL 2020 K11 20 20 125 25
SVJCR 2525 M11 25 25 150 32
SVJCL 2525 M11 25 25 150 32

Articles VC.t 1604..

Article code H mm B mm L mm F mm
SVJCR 1212 F16 12 12 80 16
SVJCL 1212 F16 12 12 80 16
SVJCR 2020 K16 20 20 125 25
SVJCL 2020 K16 20 20 125 25
SVJCR 2525 M16 25 25 150 32
SVJCL 2525 M16 25 25 150 32
SVJCR 3232 P16 32 32 170 40
SVJCL 3232 P16 32 32 170 40
