Turning Insert VCGT

Turning insert VCGT, rhombic shape 35°, clearance angle 7°, single-sided, in several brand and references. Contact us for your desired insert.



First choice for internal turning and external turning of slim workpieces of all types of steel, according to the technical information of the insert. Rhombic shape with small nose angle means decreased vibration tendency, but weaker cutting edge, suitable for medium finishing and finishing.

specifications

ISO code VCGT
Shape Rhombic 35°
Clearance angle
Tolerance Class G
Hole configuration Cylindrical hole - Countersink
Chipbreaker Single-sided

material

Articles

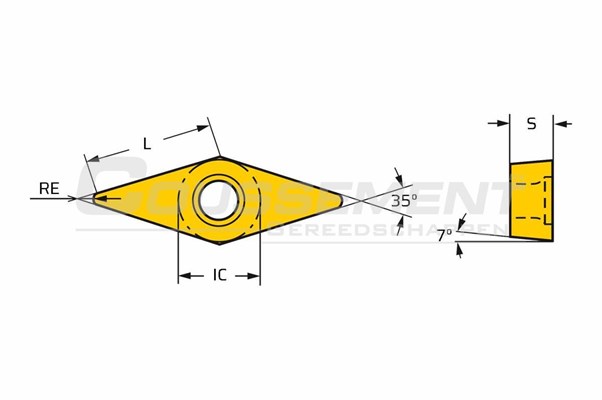

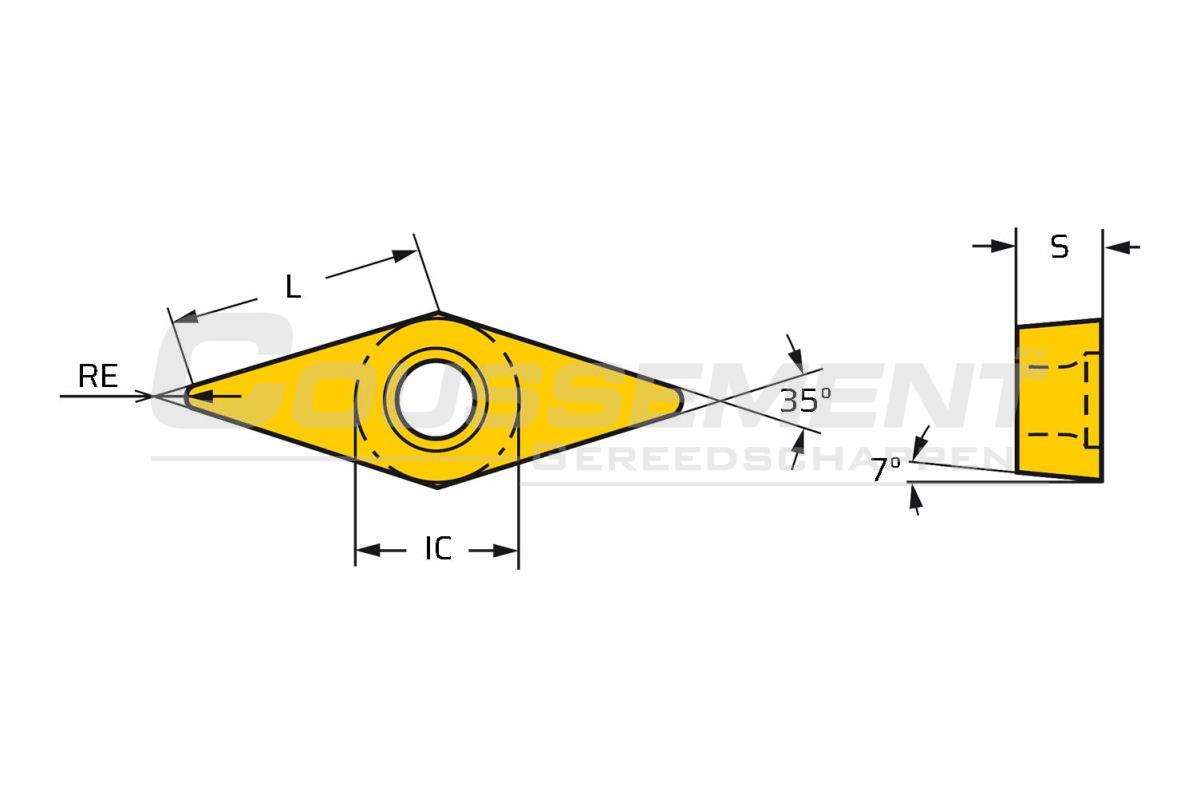

Article code L mm IC mm S mm RE mm
VCGT 110302  11,1 6,35 3,18 0,2
VCGT 110304  11,1 6,35 3,18 0,4
VCGT 160401  16,6 9,52 4,76 0,1
VCGT 160402  16,6 9,52 4,76 0,2
VCGT 160404  16,6 9,52 4,76 0,4
VCGT 160408  16,6 9,52 4,76 0,8
VCGT 160412  16,6 9,52 4,76 1,2
VCGT 220530  22,1 12,7 5,56 3,0
