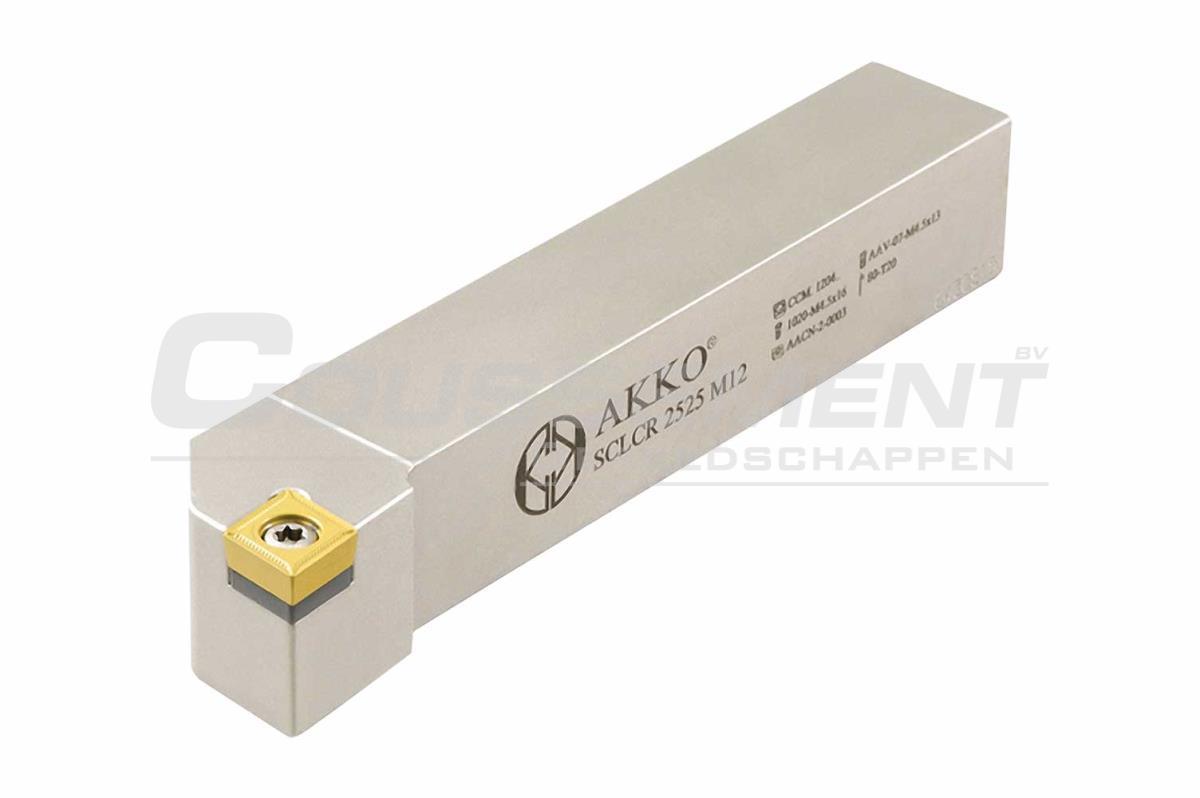

External Turning Toolholder SCLCR/L Akko SCLC

External turning toolholder, according to ISO code SCLCR (right-hand) or SCLCL (left-hand). Brand Akko with reference SCLC.

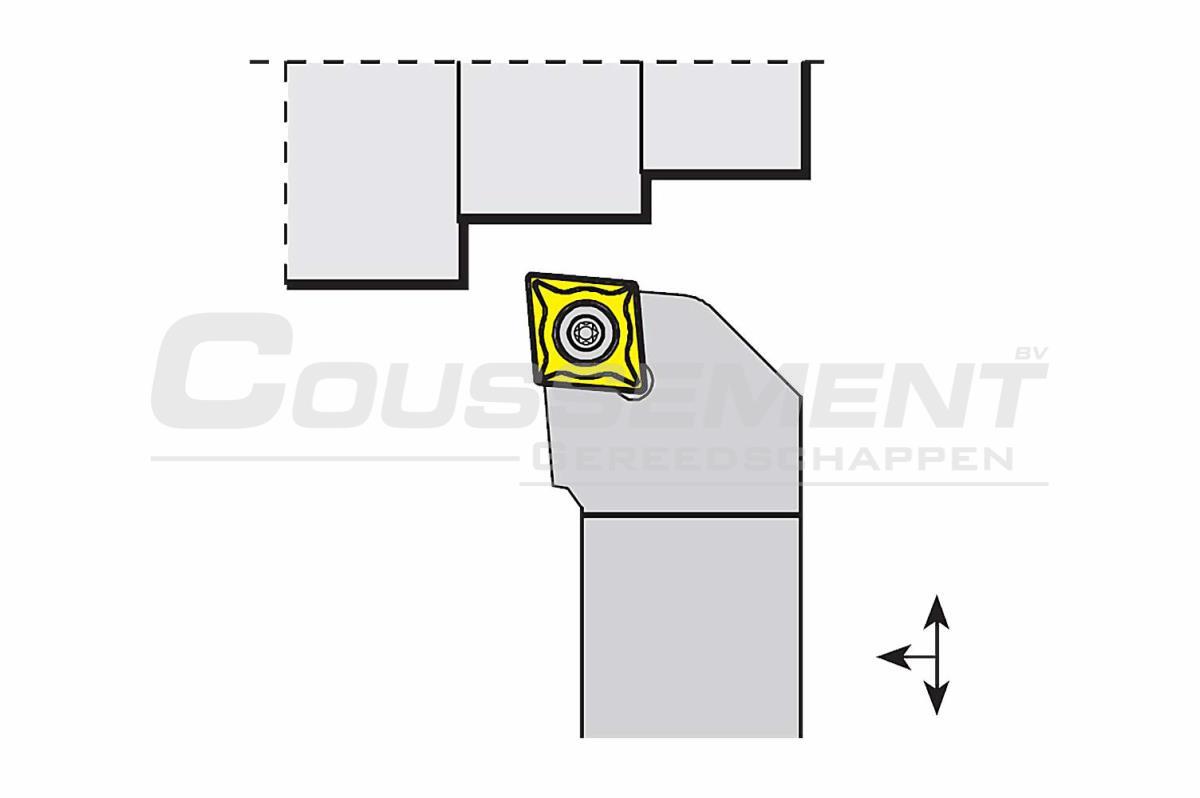

For clamping turning insert CC.T, for external turning with right or left direction of rotation according to turning toolholder.

specifications

Brand Akko
Reference SCLC
ISO code SCLCR (Right-hand) / SCLCL (Left-hand)
Type External
Coolant -
Clamping Screw clamping
Entering angle (KAPR) 95°
Cutting direction Right-hand / Left-hand
Shank Square

articles cc.T 0602..

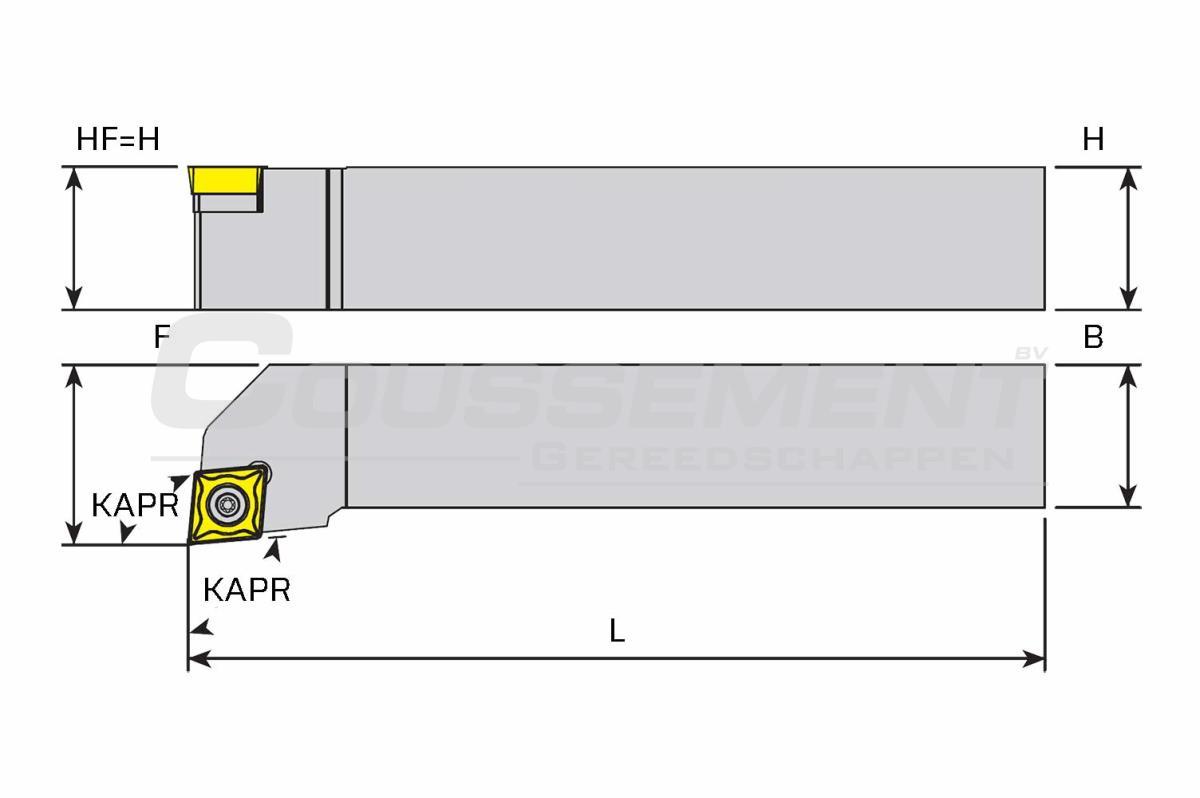

Article code H mm B mm L mm F mm
SCLCR 0808 E06 8 8 70 10
SCLCL 0808 E06 8 8 70 10
SCLCR 1010 E06 10 10 70 12
SCLCL 1010 E06 10 10 70 12
SCLCR 1212 F06 12 12 80 16
SCLCL 1212 F06 12 12 80 16

articles cc.t 09t3..

Article code H mm B mm L mm F mm
SCLCR 1010 E09 10 10 70 12
SCLCL 1010 E09 10 10 70 12
SCLCR 1212 F09 12 12 80 16
SCLCL 1212 F09 12 12 80 16
SCLCR 1616 H09 16 16 100 20
SCLCL 1616 H09 16 16 100 20
SCLCR 2020 K09 20 20 125 25
SCLCL 2020 K09 20 20 125 25
SCLCR 2525 M09 25 25 150 32
SCLCL 2525 M09 25 25 150 32

articles CC.T 1204..

Article code H mm B mm L mm F mm
SCLCR 1616 H12 16 16 100 20
SCLCL 1616 H12 16 16 100 20
SCLCR 2020 K12 20 20 125 25
SCLCL 2020 K12 20 20 125 25
SCLCR 2525 M12 25 25 150 32
SCLCL 2525 M12 25 25 150 32
