Turning Insert CCMT

Turning insert CCMT, rhombic shape 80°, clearance angle 7°, single-sided, in several brand and references. Contact us for your desired insert.



First choice for internal turning, external turning of slim workpieces and boring of all types of steel, according to the technical information of the insert. Rhombic shape with medium nose angle means increased vibration tendency, but stronger cutting edge, suitable for roughing, medium finishing and finishing.

specifications

ISO code CCMT
Shape Rhombic 80°
Clearance angle
Tolerance Class M
Hole configuration Cylindrical hole - Countersink
Chipbreaker Single-sided

material

Articles

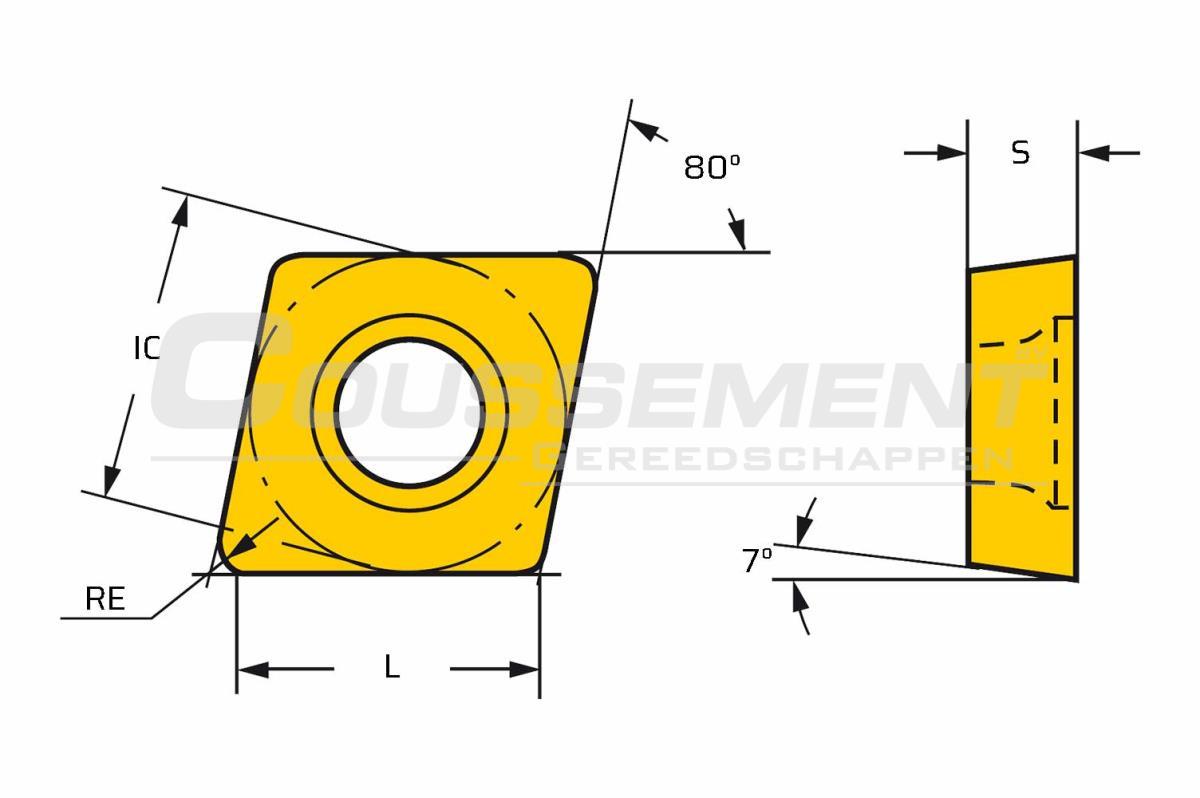

Article code L mm IC mm S mm RE mm
CCMT 060202  6,45 6,35 2,38 0,2
CCMT 060204  6,45 6,35 2,38 0,4
CCMT 060208  6,45 6,35 2,38 0,8
CCMT 09T302  9,7 9,52 3,97 0,2
CCMT 09T304  9,7 9,52 3,97 0,4
CCMT 09T308  9,7 9,52 3,97 0,8
CCMT 120404  12,9 12,7 4,76 0,4
CCMT 120408  12,9 12,7 4,76 0,8
