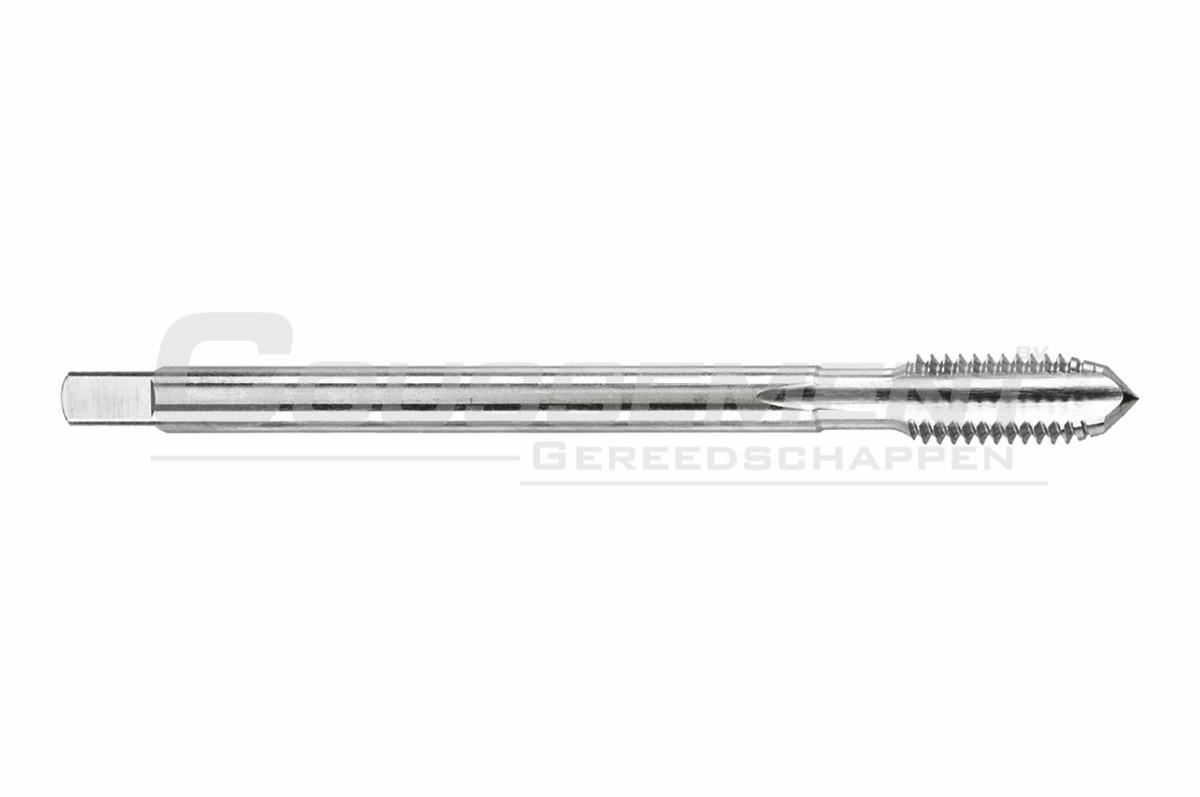

Machine Tap HSS-E Vg Blind-Trough Hole DIN 374 C Hepyc 2243


Machine tap HSS-E, Vg, according to standard DIN 374, form C.  Brand Hepyc with reference 2243.



For internal threading of Vg thread DIN 7756 with right direction of rotation in blind and trough holes, in steel, cast iron and non-ferrous metal.

specifications

Brand Hepyc
Reference 2242
Cutting material HSS-E
Coating -
Standard DIN 374
Form C
Helix -
Cutting direction Right-hand
Thread Vg DIN 7756
Tolerance -
Shank Straight with square

material

Articles

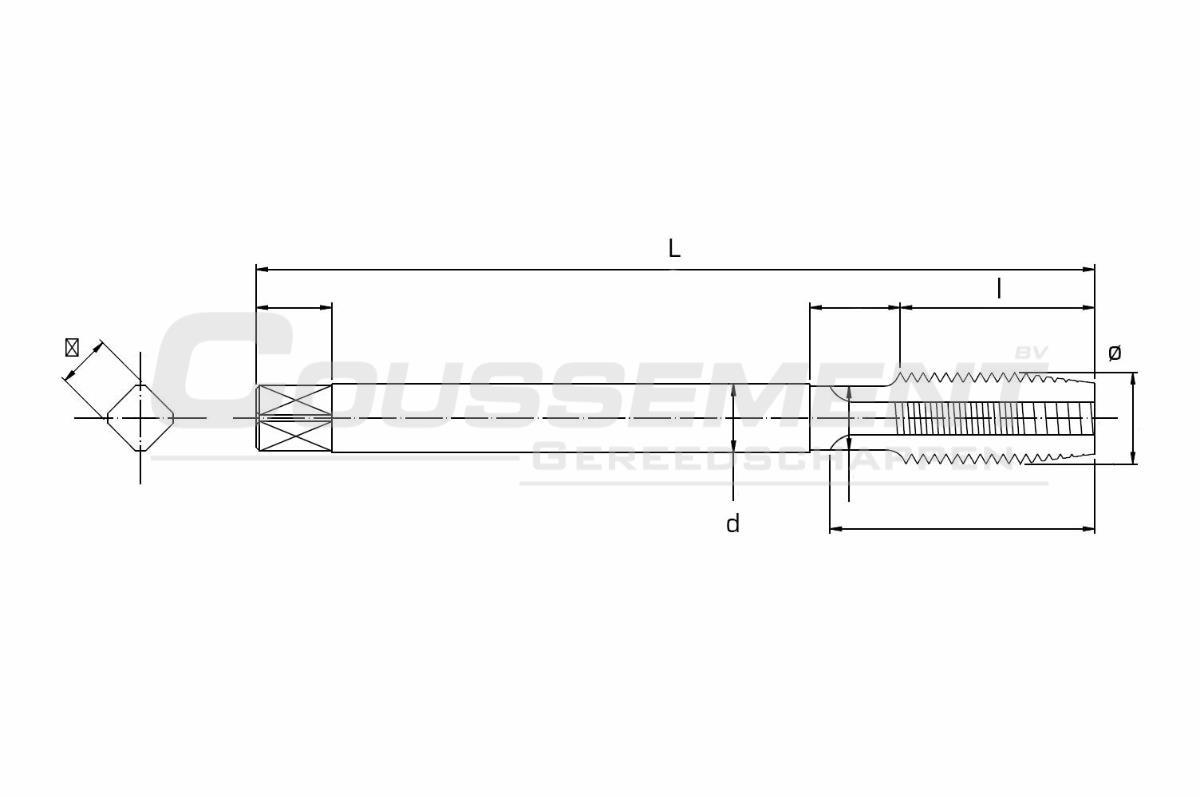

Article code ø x G inch L x l mm ◘ x d mm
22430000960 9,6 x 1 90 x 20 5,5 x 7,0
22430001000 10 x 28 90 x 22 6,2 x 8,0
22430001200 12 x 26 100 x 22 7,0 x 9,0
