Set Hand Taps HSS UNF Left DIN 2181 Hepyc 2308/5

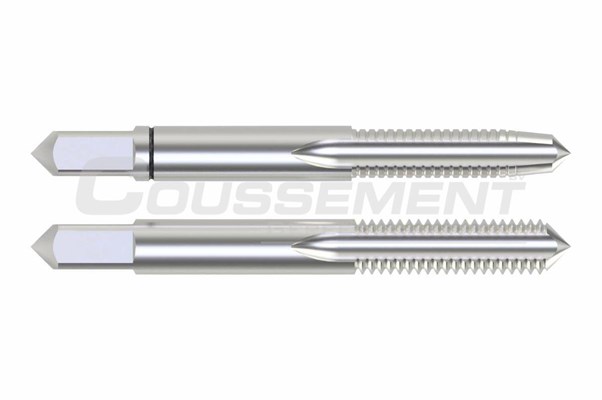

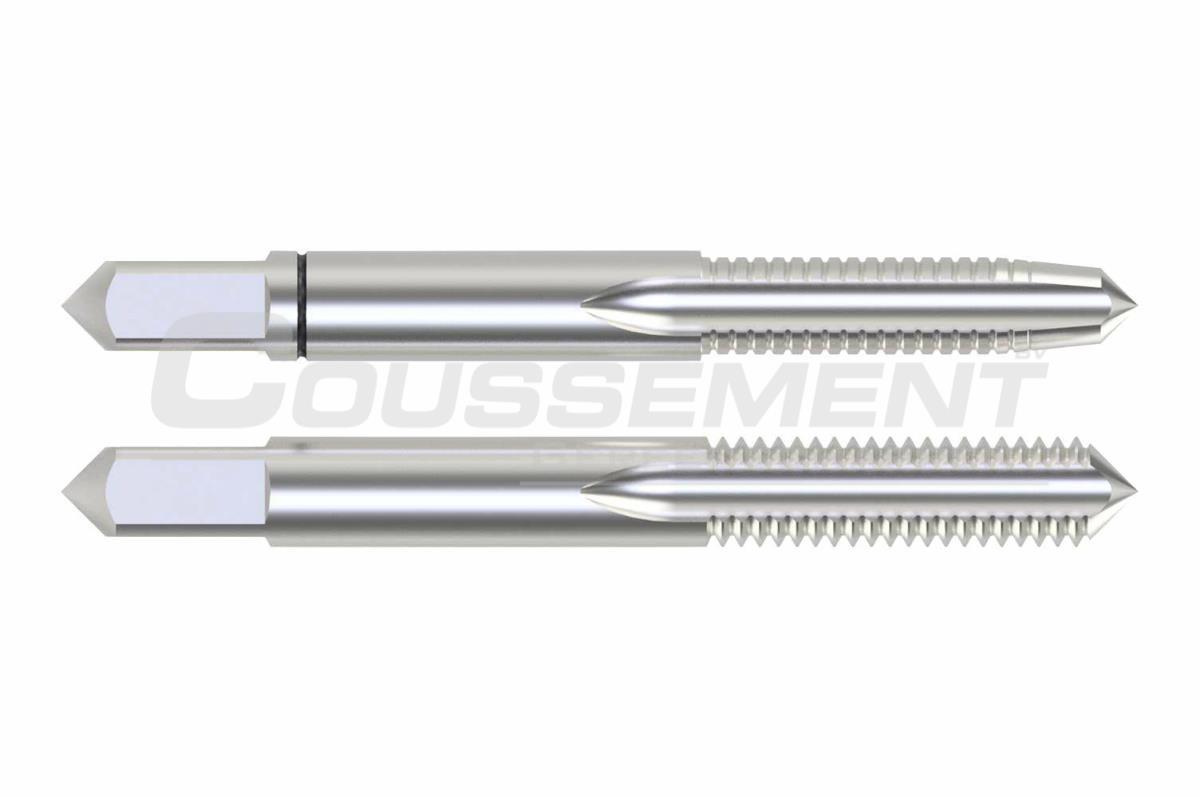

Set hand taps HSS, UNF left, according to standard DIN 2181, 2-pieces with taper and plug tap. Brand Hepyc with reference 2308/5.


For internal threading of UNF thread ANSI B1.1 with left direction of rotation in blind and through holes, in steel and non-ferrous metal.

specifications

Brand Hepyc
Reference 2308/5
Cutting material HSS
Coating -
Standard DIN 2181
Form -
Helix -
Cutting direction Left-hand
Thread UNF ANSI B1.1
Tolerance 2B
Shank Straight with square

material

Articles

Article code ø x G inch L x l mm ◘ mm
23085010400
 1/4 x 28 50 x 18 4,9
23085051600 5/16 x 24 56 x 22 4,9
23085030800 3/8 x 24 63 x 22 5,5
23085071600 7/16 x 20 63 x 22 6,2
23085010200 1/2 x 20 75 x 24 7,0
23085091600 9/16 x 18 80 x 28 9,0
23085050800 5/8 x 18 80 x 28 9,0
23085030400 3/4 x 16 95 x 32 11,0
23085070800 7/8 x 14 100 x 36 14,5
23085100000 1" x 12 110 x 40 14,5
