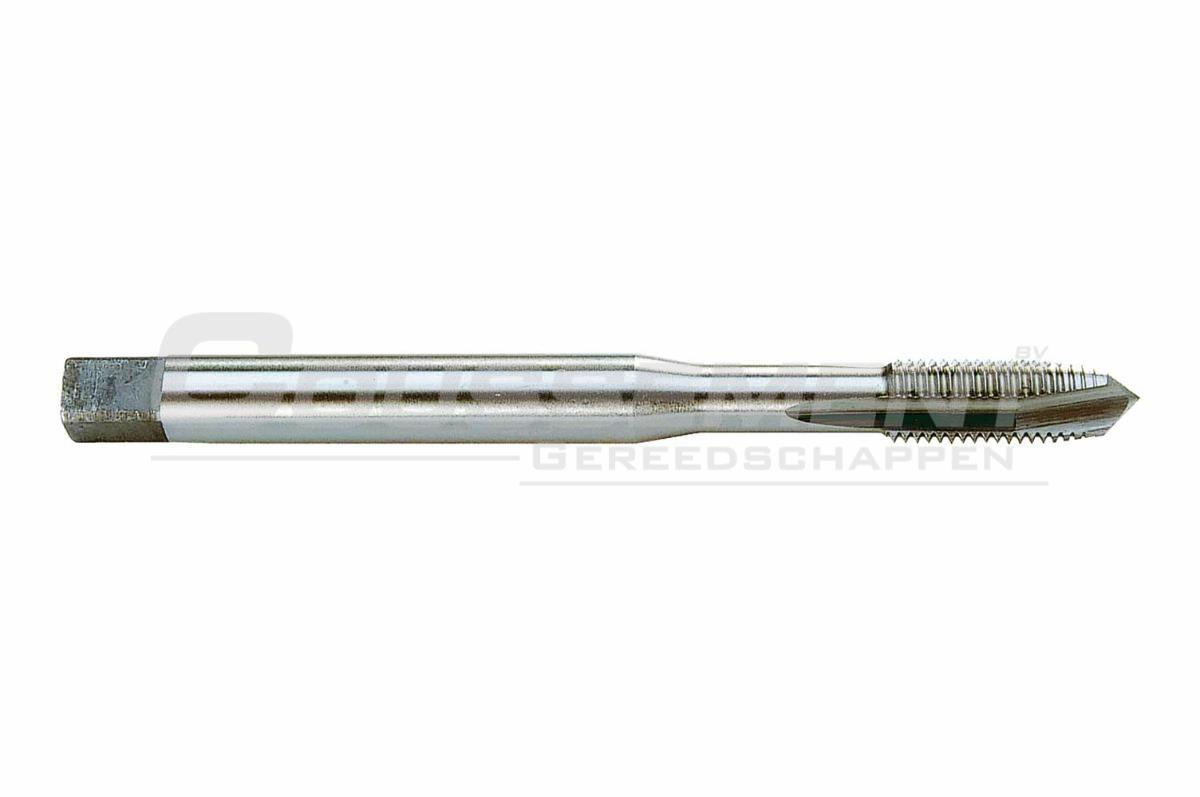

Machine Tap HSS-E UNF Trough Hole DIN 371 B Hepyc 2156


Machine tap HSS-E, UNF, according to standard DIN 371, form B. Brand Hepyc with reference 2156.



For internal threading of UNF thread ANSI B1.1 with right direction of rotation in trough holes, in steel, stainless steel, cast iron and non-ferrous metal.

specifications

Brand Hepyc
Reference 2156
Cutting material HSS-E
Coating -
Standard DIN 371
Form B
Helix -
Cutting direction Right-hand
Thread UNF ANSI B1.1
Tolerance 2B
Shank Straight with square

material

Articles

Article code ø x G inch L x l mm ◘ x d mm
21560000400
 N°4 x 48 56 x 11 2,7 x 3,5
21560000500 N°5 x 44 56 x 11 2,7 x 3,5
21560000600 N°6 x 40 56 x 11 3,0 x 4,5
21560000800 N°8 x 36 63 x 13 3,4 x 4,5
2156000100 N°10 x 32 70 x 16 4,9 x 6,0
2156000120 N°12 x 28 80 x 19 4,9 x 6,0
21560010400 1/4 x 28 80 x 19 5,5 x 7,0
21560051600 5/16 x 24 90 x 22 6,2 x 8,0
