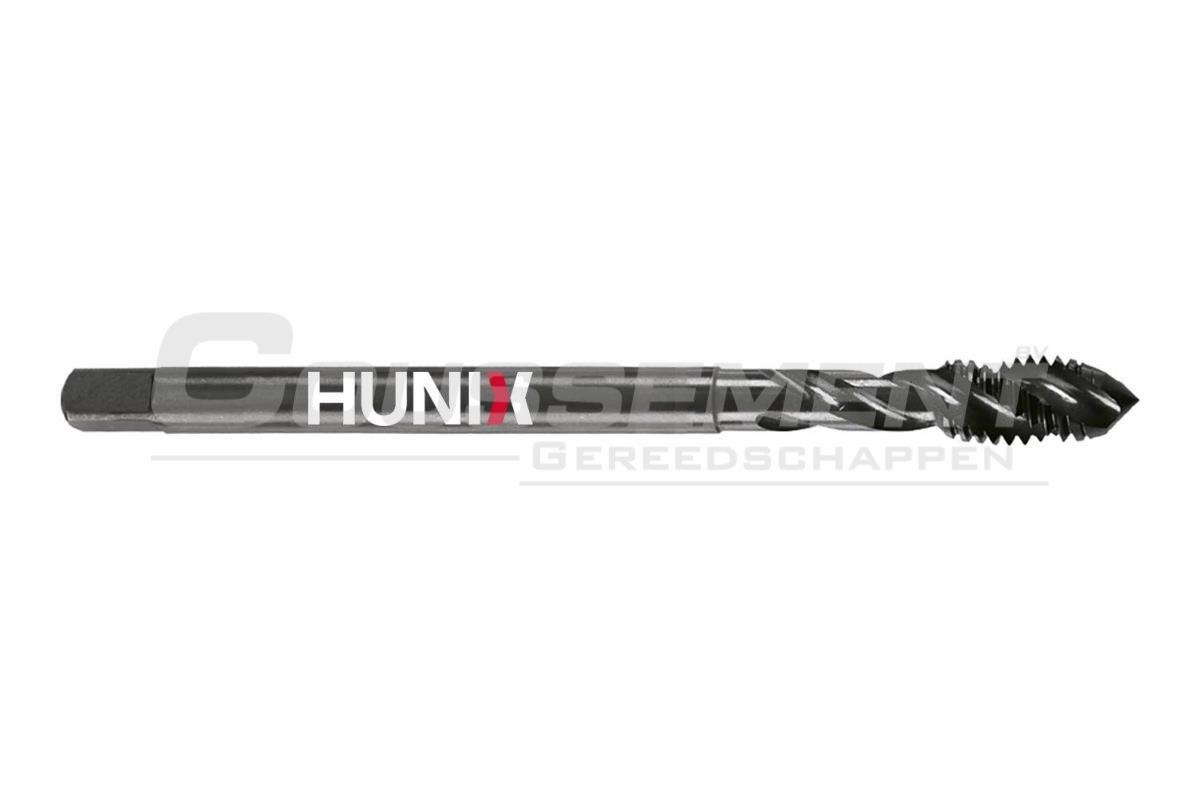

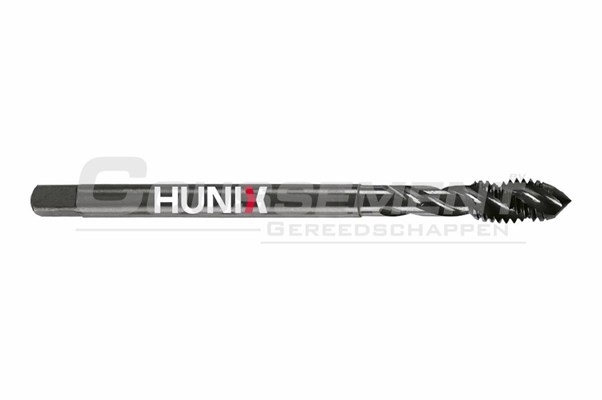

Machine Tap HSS-E VAP UNC Blind Hole DIN 376 C35° Hepyc 2265



Machine tap HSS-E, VAP-coated, UNC, according to standard DIN 376, form C, helix 35°. Series Hunix by Hepyc with MicroFinish-technology. Brand Hepyc with reference 2265.

For internal threading of UNC thread ANSI B1.1 with right direction of rotation in blind holes, in steel, stainless steel, cast iron and non-ferrous metal.

specifications

Brand Hepyc
Reference 2265
Cutiing material HSS-E
Coating VAP
Standard DIN 376
Form C
Helix 35°
Cutting direction Right-hand
Thread UNC ANSI B1.1
Tolerance 2B
Shank Straight with square

material

Articles

Article code ø x G inch L x l mm ◘ x d mm
22650071600 7/16 x 14 100 x 15 6,2 x 8,0
22650010200 1/2 x 13 110 x 18 7,0 x 9,0
22650091600 9/16 x 12 110 x 20 9,0 x 11,0
22650050800 5/8 x 11 110 x 20 9,0 x 12,0
22650030400 3/4 x 10 125 x 25 11,0 x 14,0
22650070800 7/8 x 9 140 x 30 14,5 x 18,0
22650100000 1" x 8 160 x 30 16,0 x 20,0
