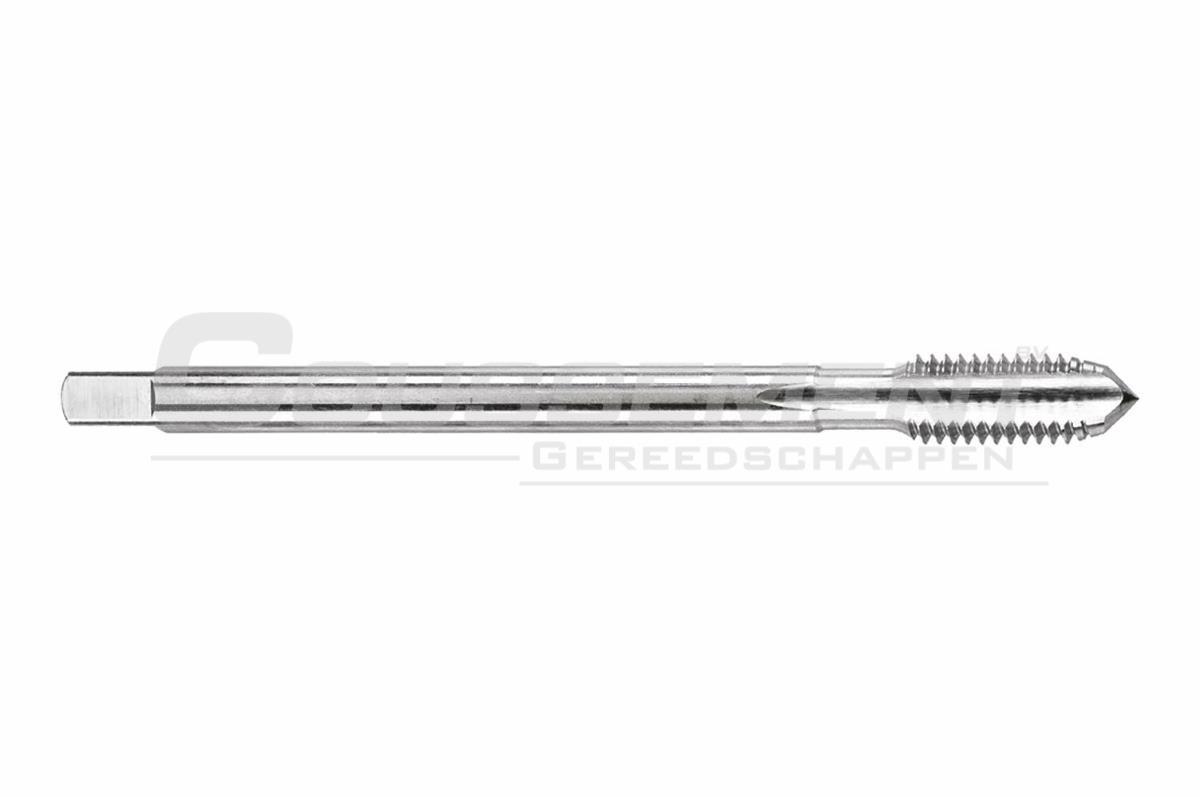

Machine Tap HSS-E UNC Left Blind-Trough Hole DIN 376 C Hepyc 2147/5


Machine tap HSS-E, UNC left, according to standard DIN 376, form C. Brand Hepyc with reference 2147/5.



For internal threading of UNC thread ANSI B1.1 with left direction of rotation in blind and trough holes, in steel, cast iron and non-ferrous metal.

specifications

Brand Hepyc
Reference 2147/5
Cutting material HSS-E
Coating -
Standard DIN 376
Form C
Helix -
Cutting direction Left-hand
Thread UNC ANSI 1.1
Tolerance 2B
Shank Straight with square

material

Articles

Article code ø x G inch L x l mm ◘ x d mm
21475010400 1/4 x 20 80 x 19 3,4 x 4,5
21475051600 5/16 x 18 90 x 22 4,9 x 6,0
21475030800 3/8 x 16 100 x 24 5,5 x 7,0
21475071600 7/16 x 14 100 x 24 6,2 x 8,0
21475010200 1/2 x 13 110 x 29 7,0 x 9,0
21475091600 9/16 x 12 110 x 30 9,0 x 11,0
21475050800 5/8 x 11 110 x 30 9,0 x 12,0
21475030400 3/4 x 10 125 x 35 11,0 x 14,0
21475070800 7/8 x 9 140 x 36 14,5 x 18,0
21475100000 1" x 8 160 x 38 14,5 x 18,0
