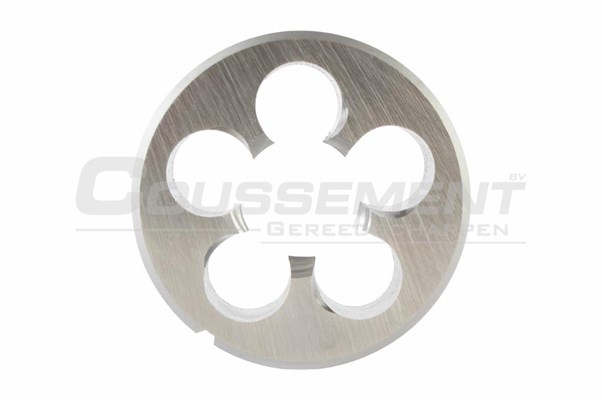

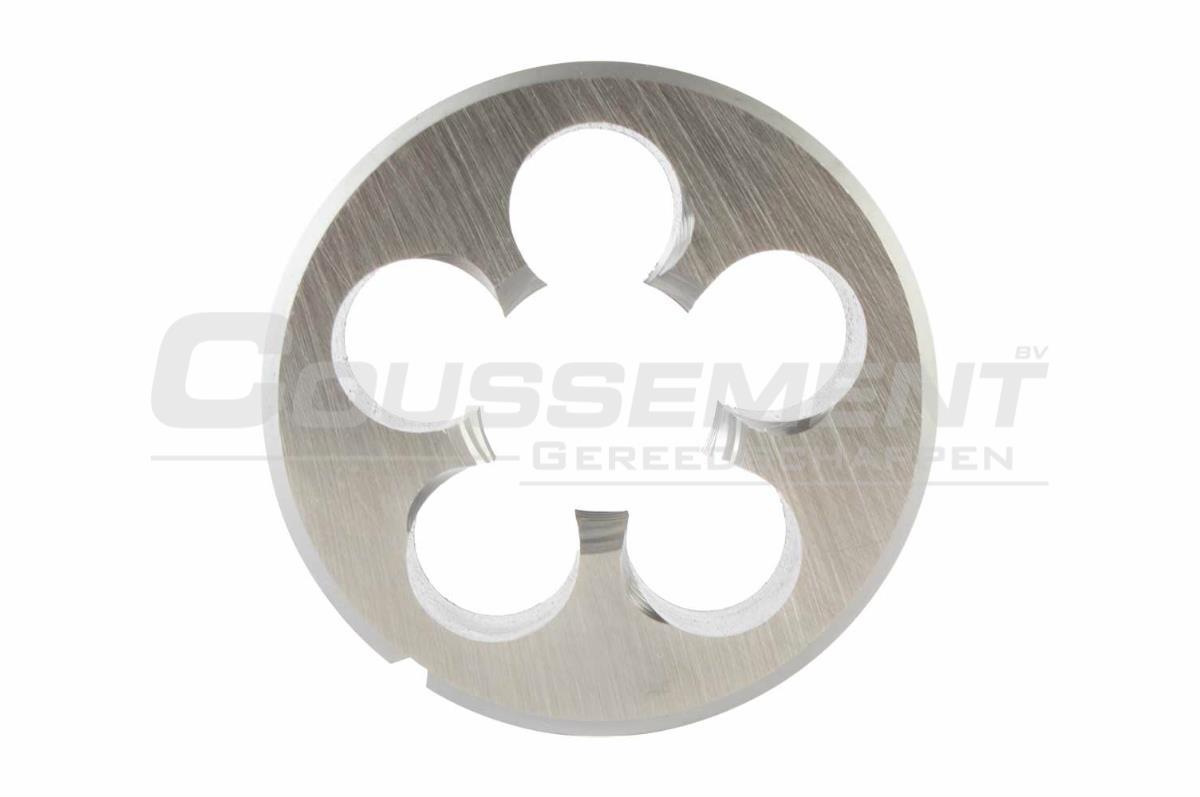

Round Die HSS PG DIN EN 40434 Hepyc 2510

Round die HSS, PG, according to standard DIN 40434. Brand Hepyc with reference 2510.

For external threading of PG thread DIN 40430 with right direction of rotation, in steel and non-ferro metal.

specifications

Brand	Hepyc
Reference	2510
Cutting material	HSS
Coating	-
Standard	DIN 40434
Form	"Gun"
Cutting direction	Right-hand
Thread	PG DIN 40430
Tolerance	-
Shape	Round

material

Articles

Article code	ø x S mm	D mm	B mm
25100007038	7 (12,50 x 20)	38	10
25100009045	9 (15,20 x 18)	45	14
25100011045	11 (18,60 x 18)	45	14
25100013545	13,5 (20,40 x 18)	45	14
25100016055	16 (22,50 x 18)	55	16
25100021065	21 (28,30 x 16)	65	18
25100029065	29 (37,00 x 16)	65	18
25100036090	36 (47,00 x 16)	90	22
25100042010	42 (54,00 x 16)	105	22
25100048010	48 (59,30 x 16)	105	22
