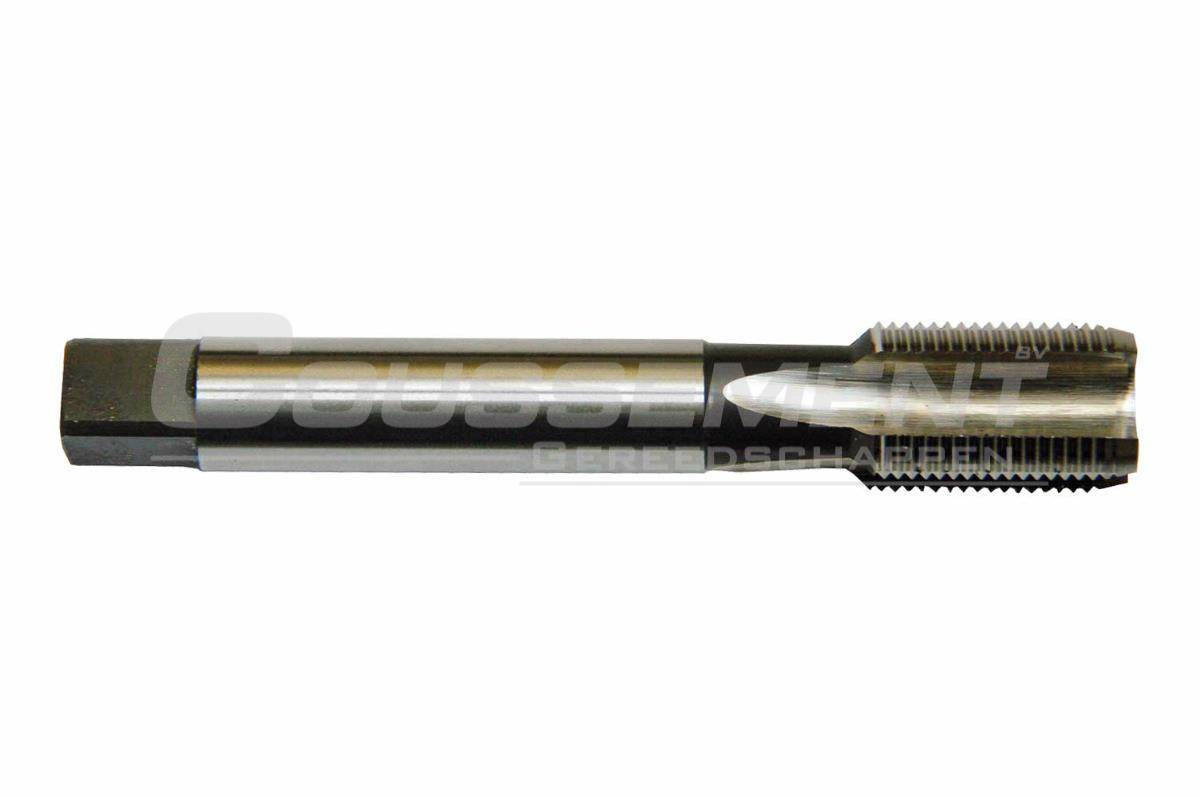

Machine Tap HSS-E PG Blind-Trough Hole DIN 40433 C Hepyc 2163

Machine tap HSS-E, PG, according to standard DIN 40433, form C. Brand Hepyc with reference 2163.

For internal threading of PG thread DIN 40430 with right direction of rotation in blind and trough holes, in steel, cast iron and non-ferrous metal.

specifications

Brand	Hepyc
Reference	2163
Cutting material	HSS-E
Coating	-
Standard	DIN 40433
Form	C
Helix	-
Cutting direction	Right-hand
Thread	PG DIN 40430
Tolerance	-
Shank	Straight with square

materiaL

Articles

Article code	ø x G inch	L x l mm	◘ x d mm
21630007000	7 (12,50 x 20)	100 x 22	7,0 x 9,0
21630009000	9 (15,20 x 18)	100 x 22	9,0 x 12,0
21630011000	11 (18,60 x 18)	110 x 25	11,0 x 14,0
21630013500	13,5 (20,40 x 18)	125 x 25	12,0 x 16,0
21630016000	16 (22,50 x 18)	125 x 25	14,5 x 18,0
21630021000	21 (28,30 x 16)	150 x 28	18,0 x 22,0
21630029000	29 (37,00 x 16)	170 x 30	22,0 x 28,0
21630036000	36 (47,00 x 16)	190 x 32	29,0 x 36,0
21630048000	42 (54,00 x 16)	190 x 32	32,0 x 40,0
21630420000	48 (59,30 x 16)	220 x 40	35,0 x 45,0
