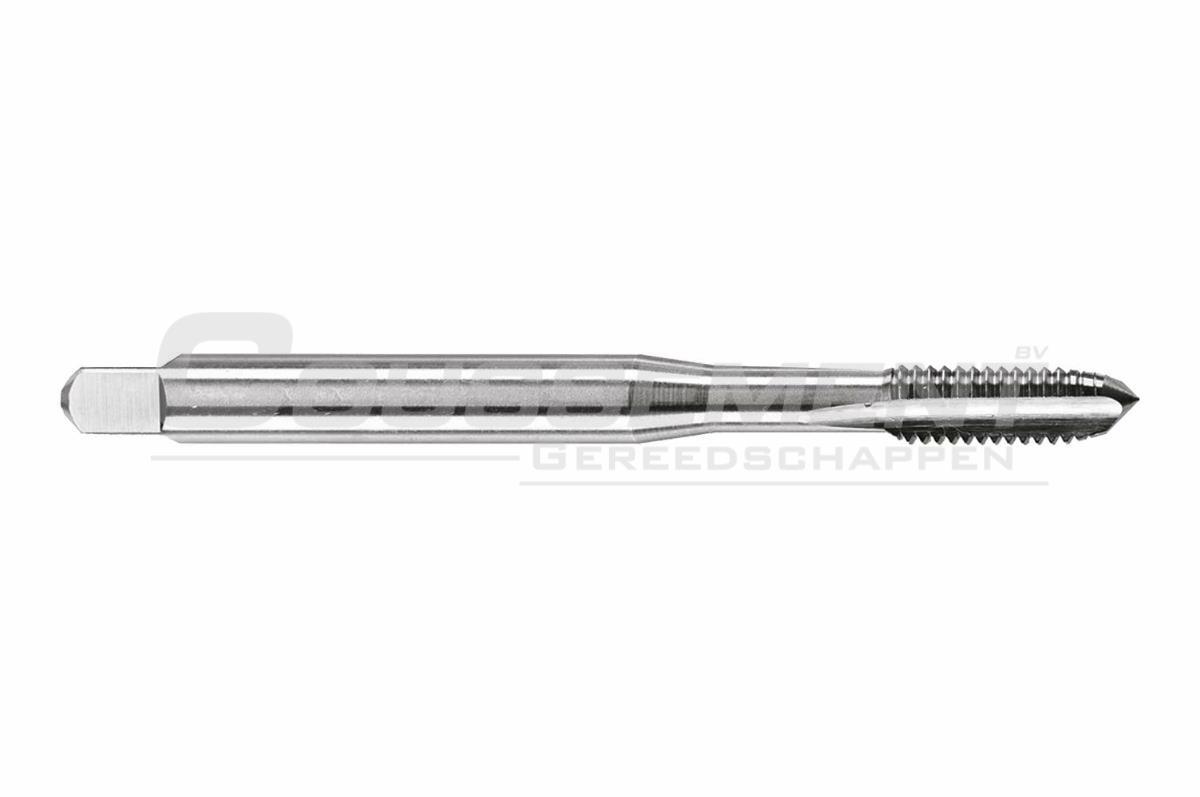

Machine Tap HSS-E M Blind-Trough Hole DIN 371 C Hepyc 2102


Machine tap HSS-E, metric, according to standard DIN 371, form C. Brand Hepyc with reference 2102.



For internal threading of metric thread DIN 13 with right direction of rotation in blind and through holes, in steel, cast iron and non-ferrous metal.

specifications

Brand Hepyc
Reference 2102
Cutting material HSS-E
Coating -
Standard DIN 371
Form C
Helix -
Cutting direction Right-hand
Thread Metric DIN 13
Tolerance 6H
Shank Straight with square

material

Articles

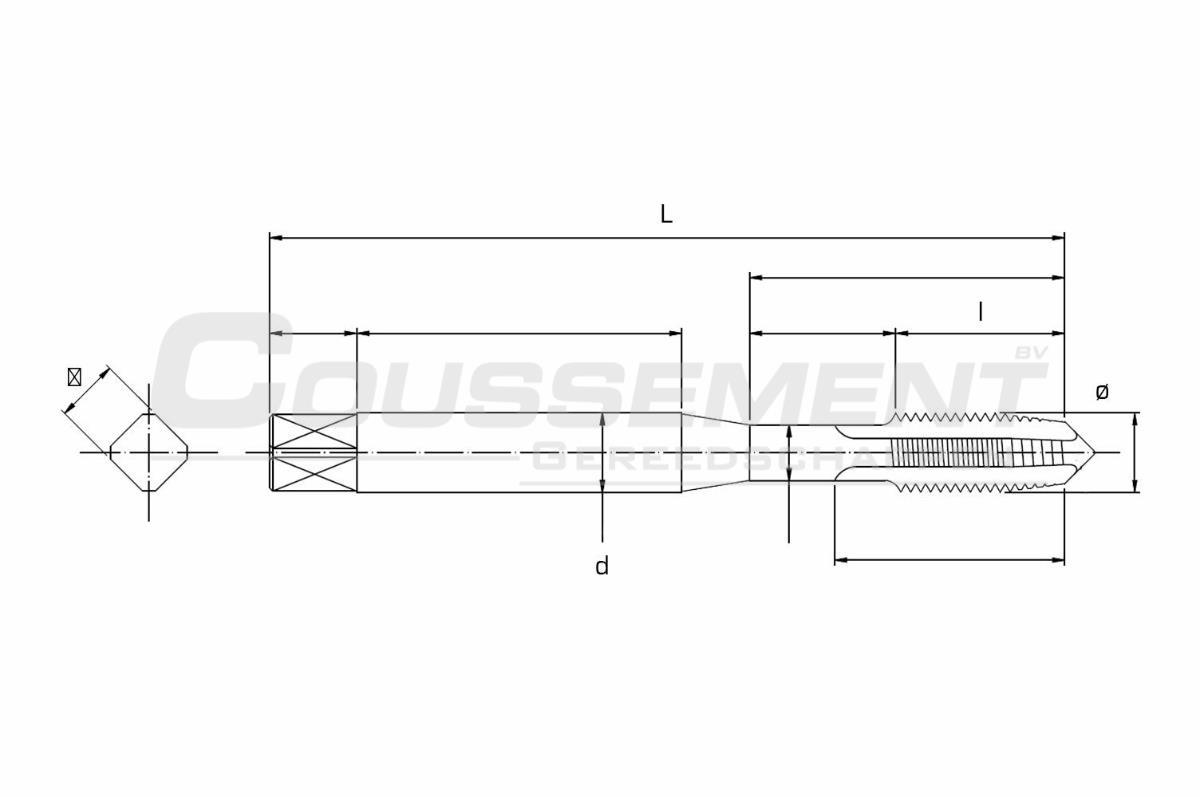

Article code ø x S mm L x l mm ◘ x d mm
21020001202 M 1,2 x 0,25 40 x 5 2,1 x 2,5
21020001403 M 1,4 x 0,30 40 x 7 2,1 x 2,5
21020001603 M 1,6 x 0,35 40 x 8 2,1 x 2,5
21020001703 M 1,7 x 0,35 40 x 8 2,1 x 2,5
21020001803 M 1,8 x 0,35 40 x 8 2,1 x 2,5
21020002004 M 2 x 0,40 45 x 8 2,1 x 2,8
21020002204 M 2,2 x 0,45 45 x 9 2,1 x 2,8
21020002304 45 x 9 2,1 x 2,8
21020002504 M 2,5 x 0,45 50 x 9 2,1 x 2,8
21020002604 M 2,6 x 0,45 50 x 9 2,1 x 2,8
21020003005 M 3 x 0,50 56 x 11 2,7 x 3,5
21020003506 M 3,5 x 0,60 56 x 12 3,0 x 4,0
21020004070 M 4 x 0,70 63 x 13 3,4 x 4,5
21020004507 M 4,5 x 0,75 70 x 14 4,9 x 6,0
21020005008 M 5 x 0,80 70 x 14 4,9 x 6,0
21020006010 M 6 x 1,00 80 x 16 4,9 x 6,0
21020007010 M 7 x 1,00 80 x 16 5,5 x 7,0
21020008012 M 8 x 1,25 90 x 18 6,2 x 8,0
21020009012 M 9 x 1,25 90 x 18 7,0 x 9,0
21020010015 M 10 x 1,50 100 x 22 8,0 x 10,0
