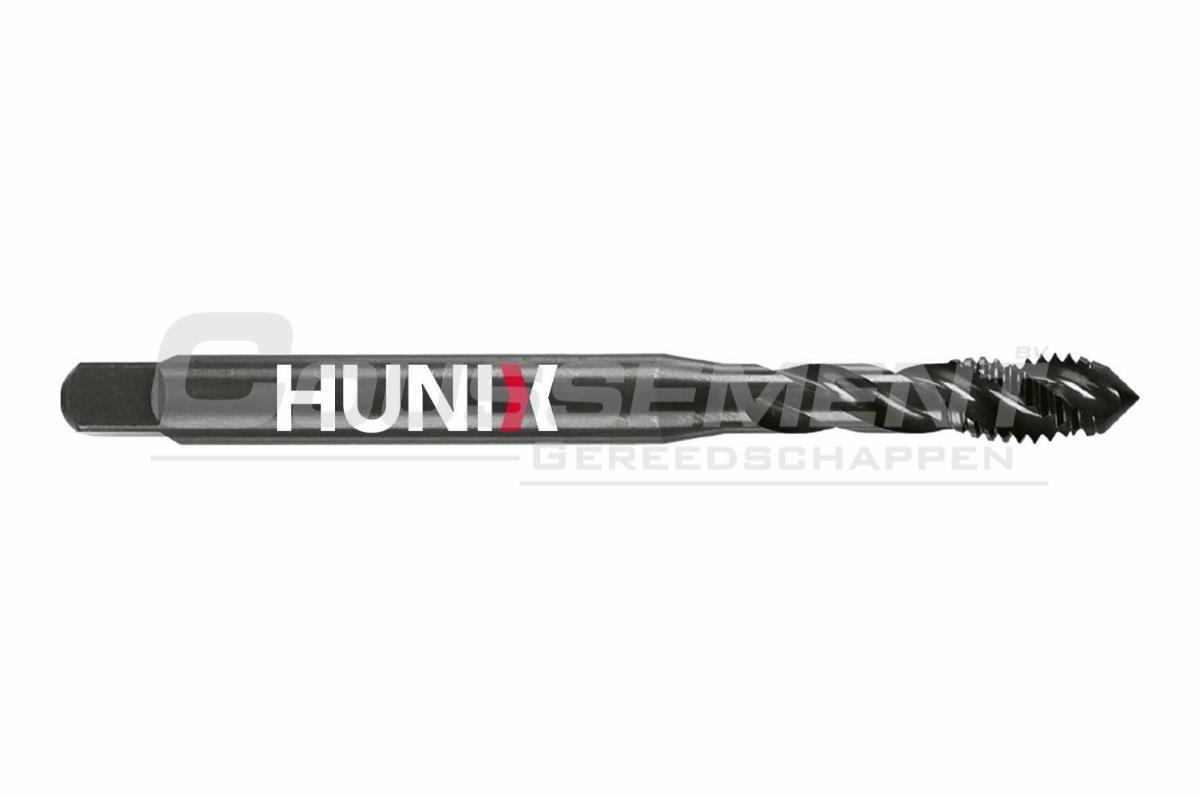

Machine Tap HSS-E VAP M Blind Hole DIN 371 C35° Hepyc 2252



Machine tap HSS-E, VAP-coated, metric, according to standard DIN 371, form C, helix 35°. Series Hunix by Hepyc with MicroFinish-technology. Brand Hepyc with reference 2252.

For internal threading of metric thread DIN 13 with right direction of rotation in blind holes, in steel, stainless steel, cast iron and non-ferrous metal.

specifications

Brand Hepyc
Reference 2252
Cutting material HSS-E
Coating VAP
Standard DIN 371
Form C
Helix 35°
Cutting direction Right-hand
Thread Metric DIN 13
Tolerance 6H
Shank Straight with square

materiaL

Articles

Article code ø x S mm L x l mm ◘ x d mm
22520002004 M 2 x 0,40 45 x 5 2,1 x 2,8
22520002504 M 2,5 x 0,45 50 x 5 2,1 x 2,8
22520003005 M 3 x 0,50 56 x 6 2,7 x 3,5
22520003506 M 3,5 x 0,60 56 x 6 3,0 x 4,0
22520004007 M 4 x 0,70 63 x 7 3,4 x 4,5
22520005008 M 5 x 0,80 70 x 8 4,9 x 6,0
22520006010 M 6 x 1,00 80 x 10 4,9 x 6,0
22520008012 M 8 x 1,25 90 x 14 6,2 x 8,0
22520010015 M 10 x 1,50 100 x 16 8,0 x 10,0
