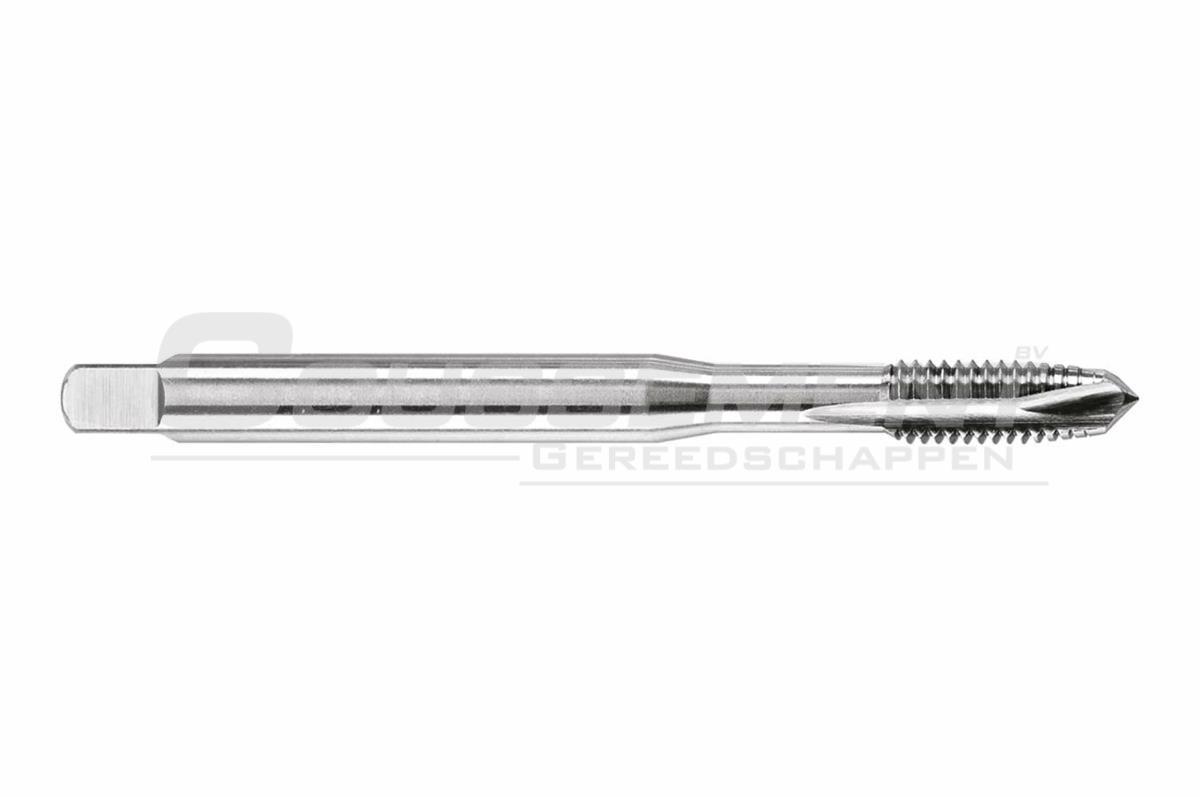

Machine Tap HSS-E BSW Trough Hole DIN 371 B Hepyc 2138


Machine tap HSS-E, BSW, according to standard DIN 371, form B. Brand Hepyc with reference 2138.



For internal threading of BSW thread BS 24 with right direction of rotation in trough holes, in steel, stainless steel, cast iron and non-ferrous metal.

specifications

Brand Hepyc
Reference 2138
Cutting material HSS-E
Coating -
Standard DIN 371
Form B / "Gun"
Helix -
Cutting direction Right-hand
Thread BSW BS 24
Tolerance -
Shank Straight with square

material

articles

Article code ø x G inch L x l mm ◘ x d mm
21380010800 1/8 x 40 56 x 11 2,7 x 3,5
21380053200 5/32 x 32 63 x 13 3,4 x 4,5
21380031600 3/16 x 24 70 x 16 4,9 x 6,0
21380010400 1/4 x 20 80 x 19 5,5 x 7,0
21380051600 5/16 x 18 90 x 22 6,2 x 8,0
