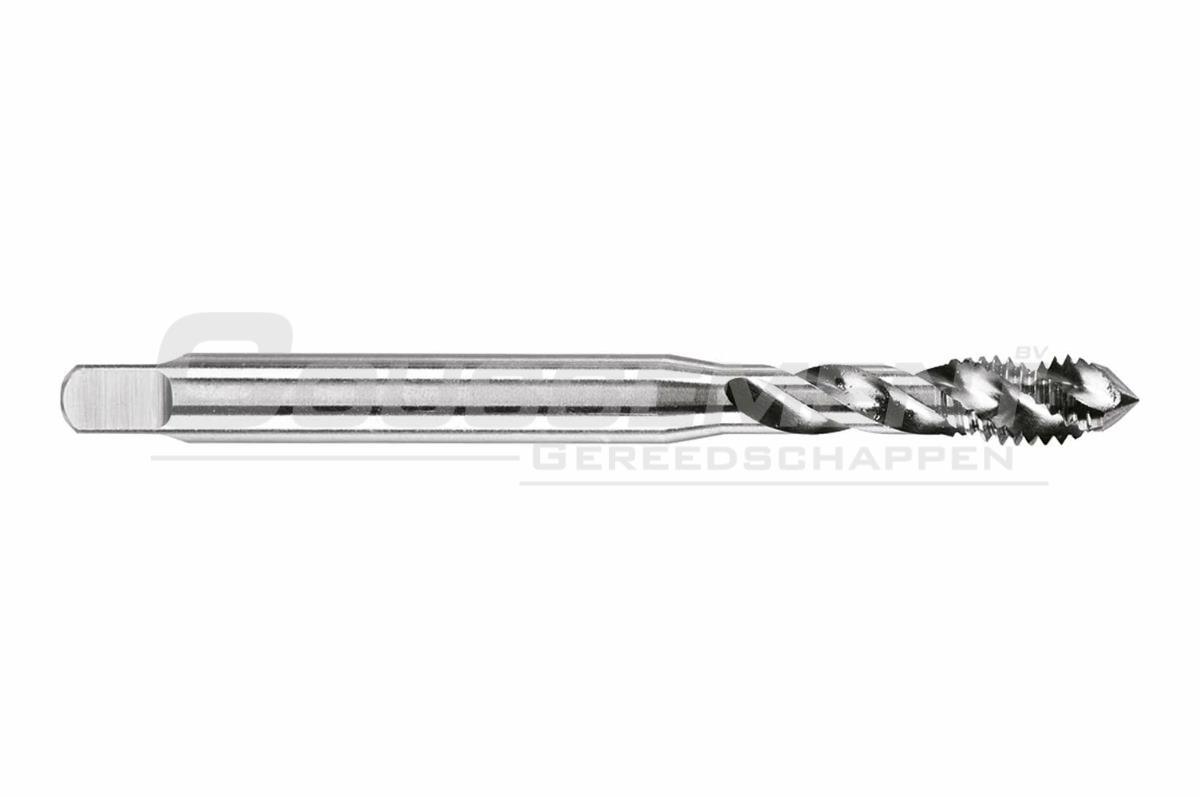

Machine Tap HSS-E BSW Blind Hole DIN 371 C35° Hepyc 2140


Machine tap HSS-E, BSW, according to standard DIN 371, form C, helix 35°. Brand Hepyc with reference 2140.



For internal threading of BSW thread BS 24 with right direction of rotation in blind holes, in steel, stainless steel, cast iron and non-ferrous metal.

specifications

Brand Hepyc
Reference 2140
Cutting material HSS-E
Coating -
Standard DIN 371
Form C
Helix 35°
Cutting direction Right-hand
Thread BSW BS 24
Tolerance -
Shank Straight with square

material

articles

Article code ø x G inch L x l mm ◘ x d mm
21400010800 1/8 x 40 56 x 6 2,7 x 3,5
21400053200 5/32 x 32 63 x 7 3,4 x 4,5
21400031600 3/16 x 24 70 x 8 4,9 x 6,0
21400010400 1/4 x 20 80 x 10 5,5 x 7,0
21400051600 5/16 x 18 90 x 14 6,2 x 8,0
