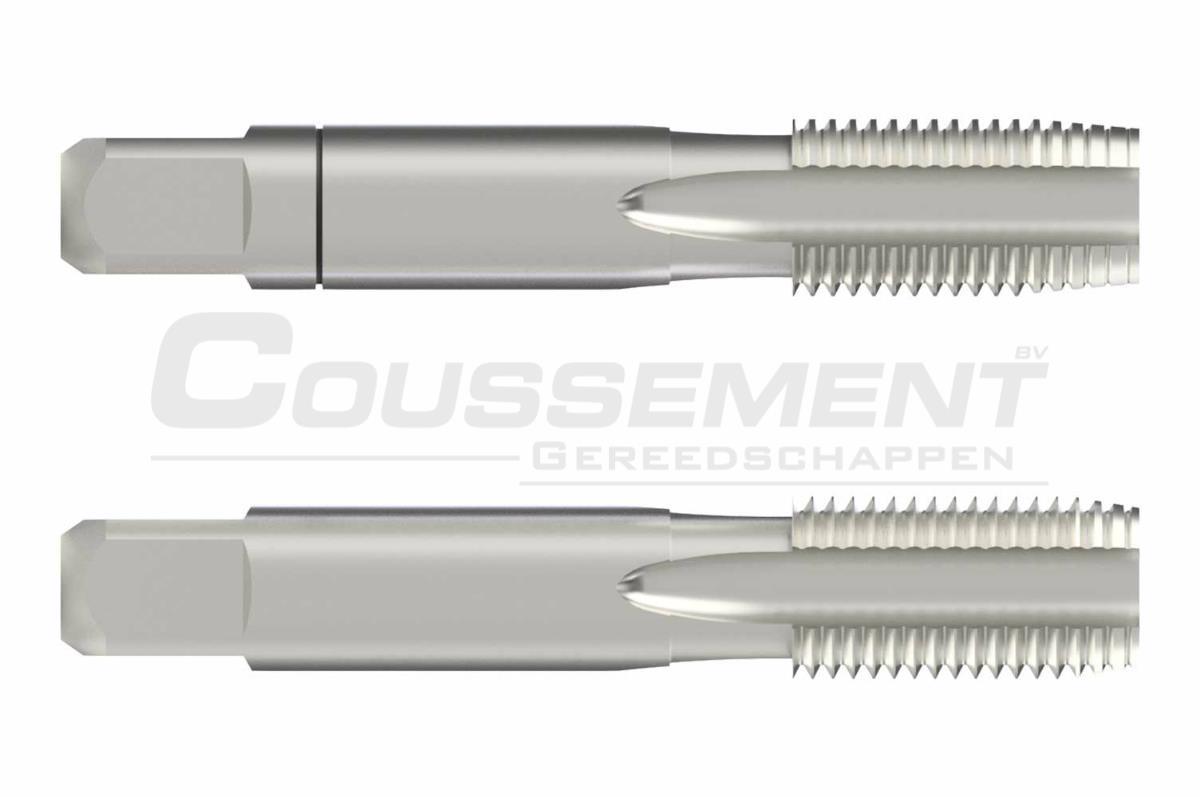

Set Hand Taps HSS BSP DIN 5157 Hepyc 2306

Set hand taps HSS, BSP, according to standard DIN 5157, 2-pieces with taper and plug tap. Brand Hepyc with reference 2306.

For internal threading of BSP thread ISO 228 with right direction of rotation in blind and through holes, in steel and non-ferrous metal.

specifications

Brand	Hepyc
Reference	2306
Cutting material	HSS
Coating	-
Standard	DIN 5157
Form	-
Helix	-
Cutting direction	Right-hand
Thread	BSP / "Gaz" ISO 228
Tolerance	-
Shank	Straight with square

materiel

articles

Article code	ø x G inch	L x l mm	◘ mm
23060010800	1/8 x 28	63 x 20	5,5
23060010400	1/4 x 19	70 x 22	9,0
23060030800	3/8 x 19	70 x 22	9,0
23060010200	1/2 x 14	80 x 22	12,0
23060050800	5/8 x 14	80 x 22	14,5
23060030400	3/4 x 14	90 x 22	16,0
23060070800	7/8 x 14	90 x 22	18,0
23060100000	1" x 11	100 x 25	20,0
23060110800	1.1/8" x 11	125 x 40	22,0
23060110400	1.1/4" x 11	140 x 40	24,0
23060130800	1.3/8" x 11	140 x 40	29,0
23060110200	1.1/2" x 11	140 x 40	29,0
23060130400	1.3/4" x 11	140 x 40	32,0
2306020000	2" x 11	160 x 40	35,0
23060210400	2.1/4" x 11	160 x 40	39,0
23060210200	2.1/2" x 11	160 x 40	39,0
23060230400	2.3/4" x 11	160 x 40	39,0
23060300000	3" x 11	160 x 40	39,0
