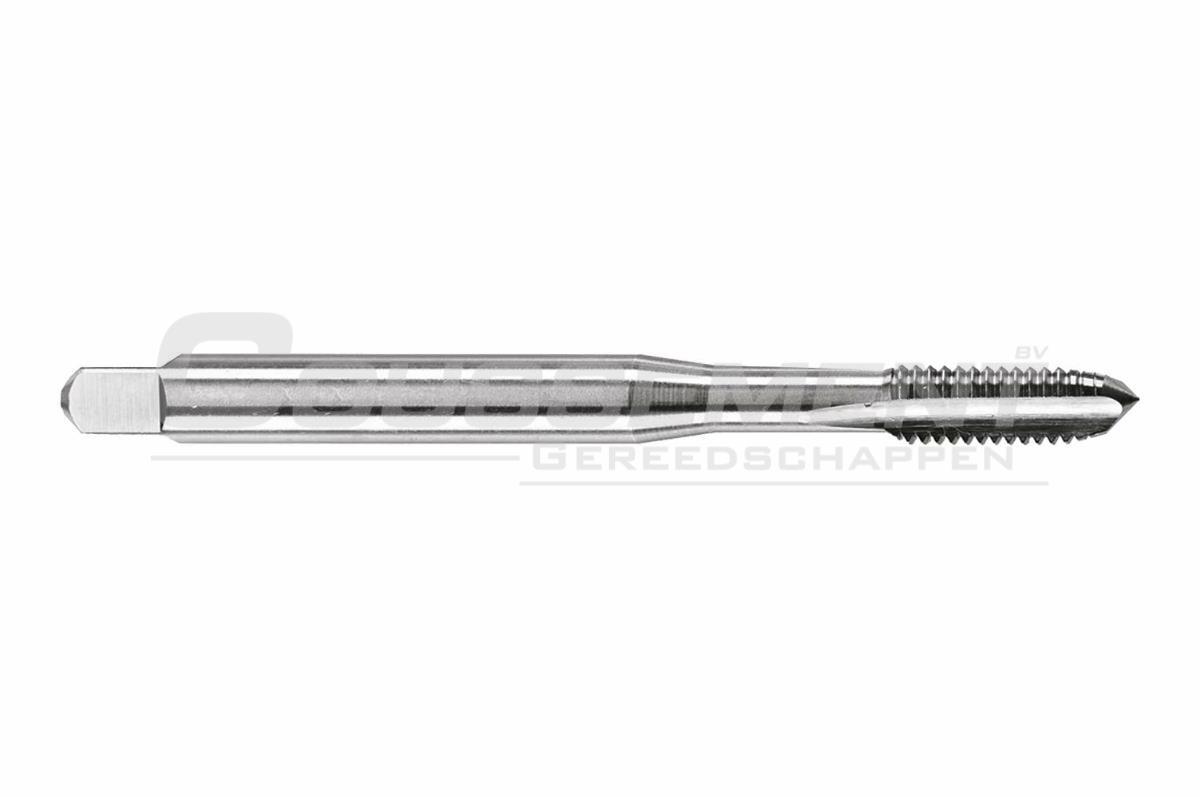

Machine Tap HSS-E BSF Blind-Trough Hole DIN 371 C Hepyc 2141


Machine tap HSS-E, BSF, according to standard DIN 371, form C. Brand Hepyc with reference 2141.



For internal threading of BSF thread BS 24 with right direction of rotation in blind and trough holes, in steel, cast iron and non-ferrous metal.

specifications

Brand Hepyc
Reference 2141
Cutting material HSS-E
Coating -
Standard DIN 371
Form C
Helix -
Cutting direction Right-hand
Thread BSF BS 24
Tolerance -
Shank Straight with square

material

articles

Article code ø x G inch L x l mm ◘ x d mm
21410031600 3/16 x 32 70 x 14 4,9 x 6,0
21410010400 1/4 x 26 80 x 19 5,5 x 7,0
21410051600 5/16 x 22 90 x 22 6,2 x 8,0
21410030800 3/8 x 20 100 x 24 8,0 x 10,0
