Drilling Insert WCMX

Drilling insert WCMX, trigon 80°, single-sided, in several brand and references. Contact us for your desired insert.


Suitable for drilling holes in all types of steel, according to the tech information of the insert.

specifications

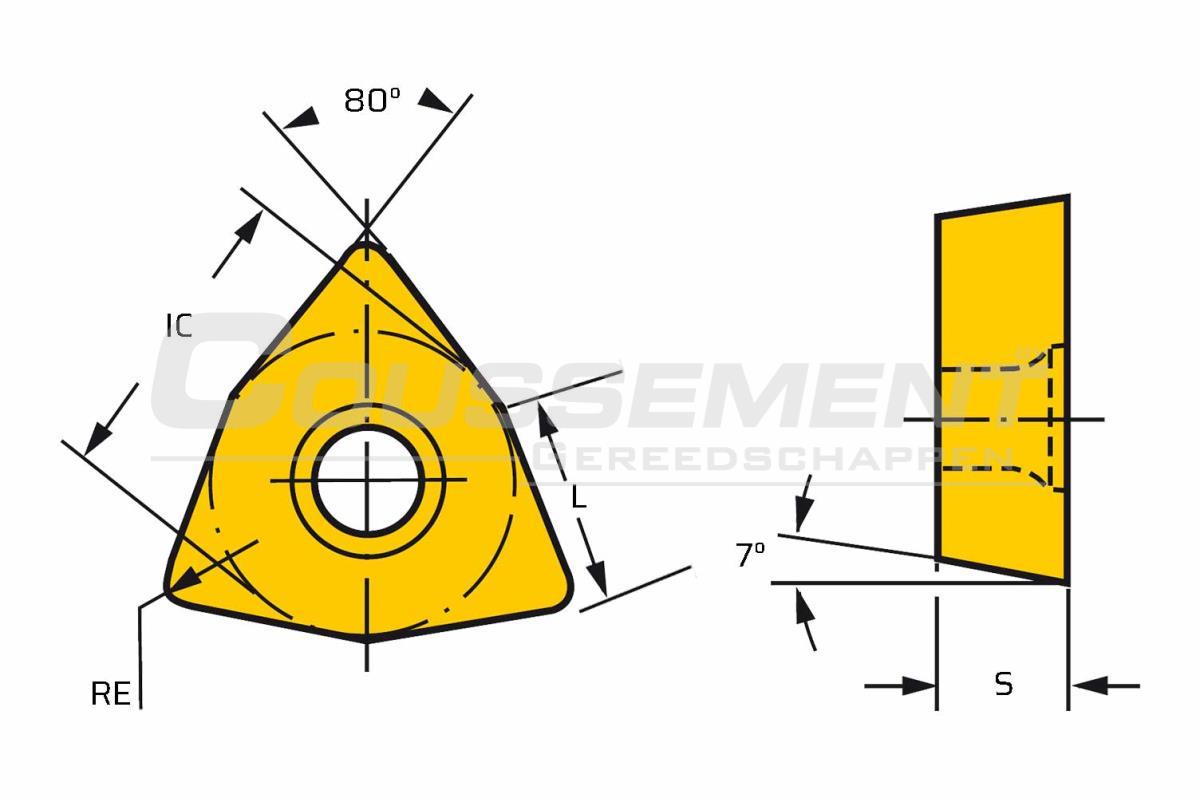

ISO code WCMX
Shape Trigon 80°
Flank 7°
Tolerance Class M
Hole configuration Special version
Chipbreaker -

material

Articles

Article code L mm IC mm S mm RE mm
WCMX 050304 5,3 7,94 3,18 0,4
WCMX 06T308 6,6 9,53 3,97 0,8
WCMX 080412 7,9 12,7 4,76 1,2
