Turning Insert SNMG

Turning insert SNMG, square, clearance angle 0°, double-sided, in several brand and references. Contact us for your desired insert.



First choice for external turning and boring of all types of steel, according to the technical information of the insert. Square with big nose angle means increased vibration tendency, but stronger cutting edge, suitable for roughing and medium finishing.

specifications

ISO code SNMG
Shape Square
Clearance angle
Tolerance Class M
Hole configuration Cylindrical hole
Chipbreaker Double-sided

material

Articles

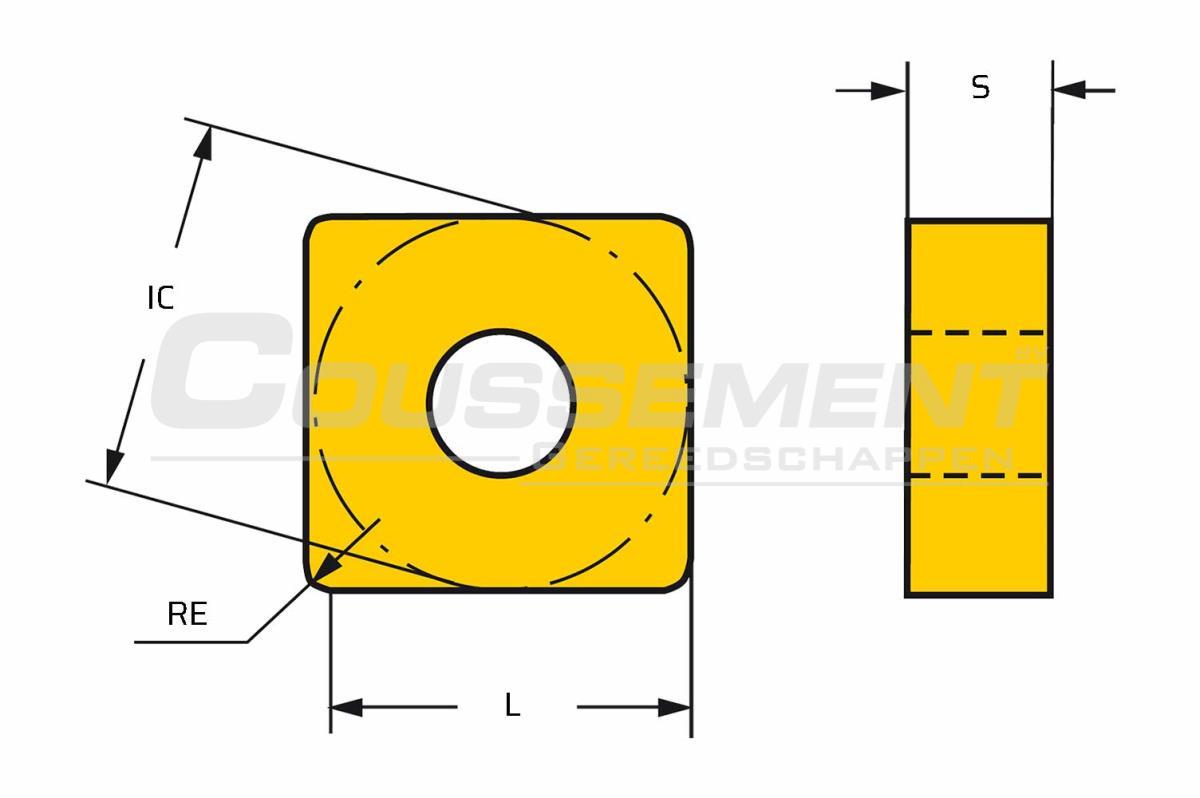

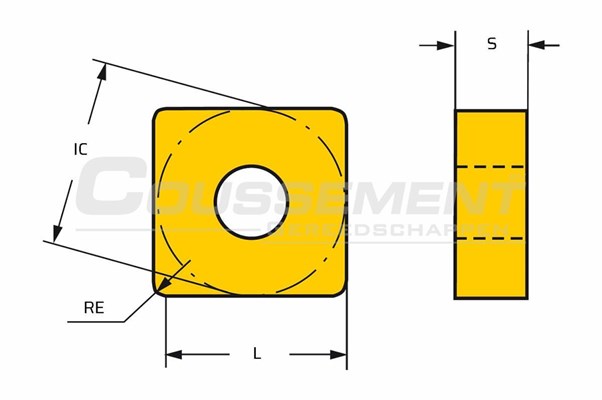

Article code IC mm S mm RE mm
SNMG 090308 9,52 3,17 0,8
SNMG 090404 9,52 4,76 0,4
SNMG 090408 9,52 4,76 0,8
SNMG 120404 12,7 4,76 0,4
SNMG 120408 12,7 4,76 0,8
SNMG 120412 12,7 4,76 1,2
SNMG 150612 15,88 6,35 1,2
SNMG 190612 19,05 6,35 1,2
SNMG 190616 19,05 6,35 1,6
