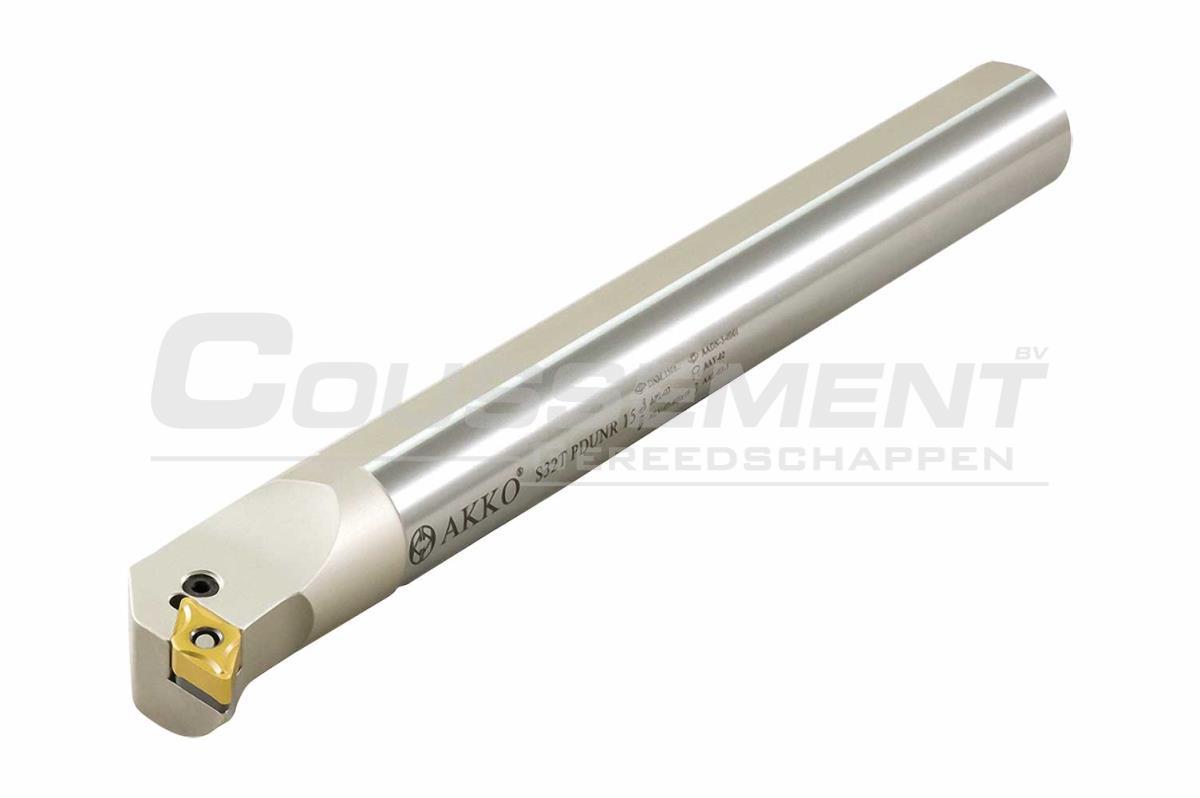

Boring Bar With Internal Coolant PDUNR/L Akko A-PDUN

Boring bar, according to ISO code PDUNR (right-hand) or PDUNL (left-hand), equiped with internal coolant. Brand Akko with reference A-PDUN.

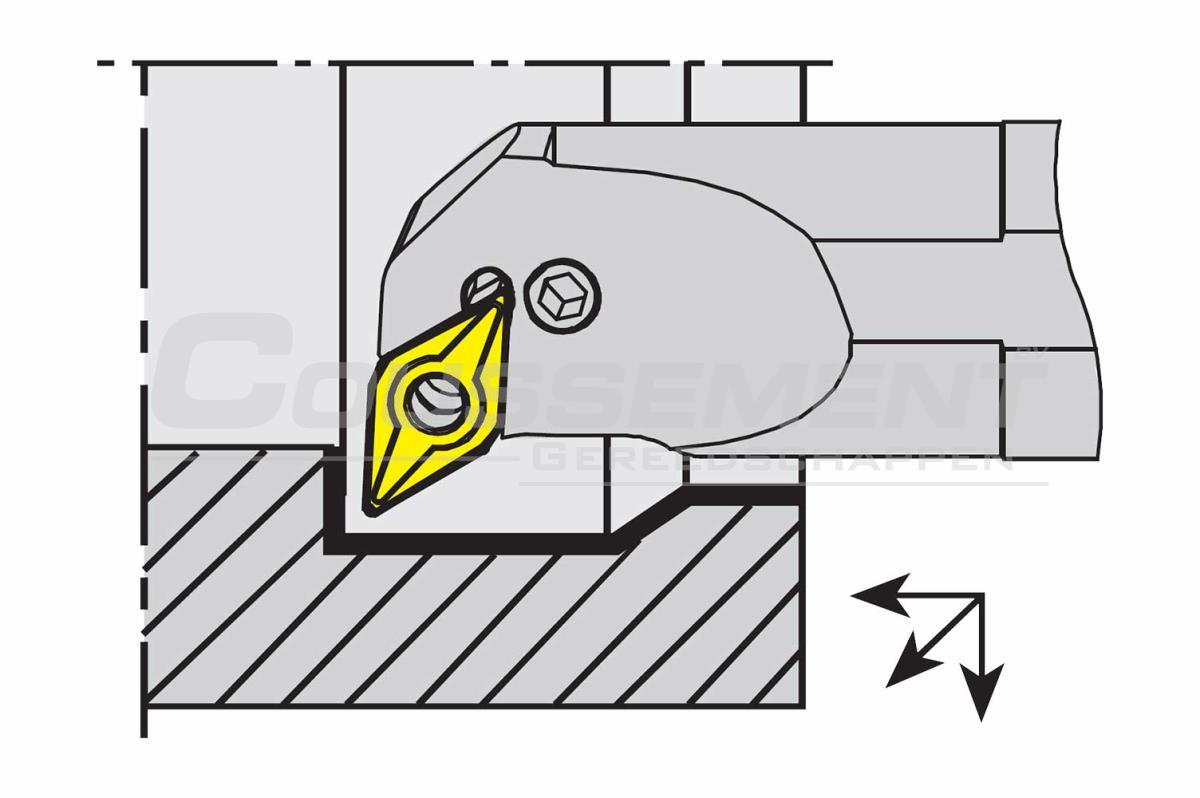

For clamping turning insert DNM., for internal turning with right or left direction of rotation according to turning toolholder.

specifications

Brand Akko
Reference A-PDUN
ISO code PDUNR (Right-hand) / PDUNL (Left-hand)
Type Internal
Coolant Internal coolant
Clamping Lever clamping
Entering angle (KAPR) 93°
Cutting direction Right-hand / Left-hand
Shank Rectangular, rounded

articles DNM. 1104..

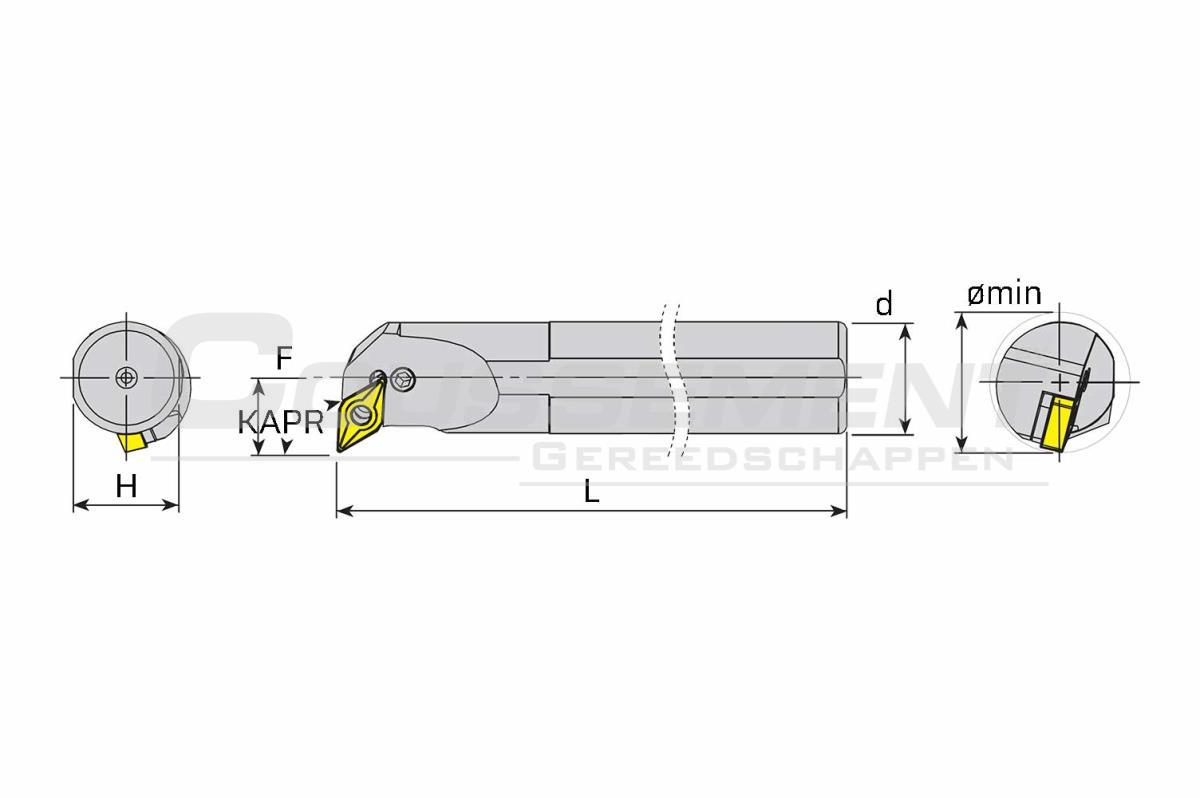

Article code d mm H mm L mm F mm ømin mm
A20P PDUNR 11 20 18,3 170 13 25
A20P PDUNL 11 20 18,3 170 13 25
A25R PDUNR 11 25 23 200 17 32
A25R PDUNL 11 25 23 200 17 32
A32S PDUNR 11 32 30 250 22 40
A32S PDUNL 11 32 30 250 22 40

articles DNM. 1506..

Article code d mm H mm L x l mm F mm ømin mm
A32S PDUNR 15 32 30 250 22 40
A32S PDUNL 15 32 30 250 22 40
A40T PDUNR 15 40 37,5 300 27 50
A40T PDUNL 15 40 37,5 300 27 50
A50U PDUNR 15 50 47 350 35 63
A50U PDUNL 15 50 47 350 35 63
