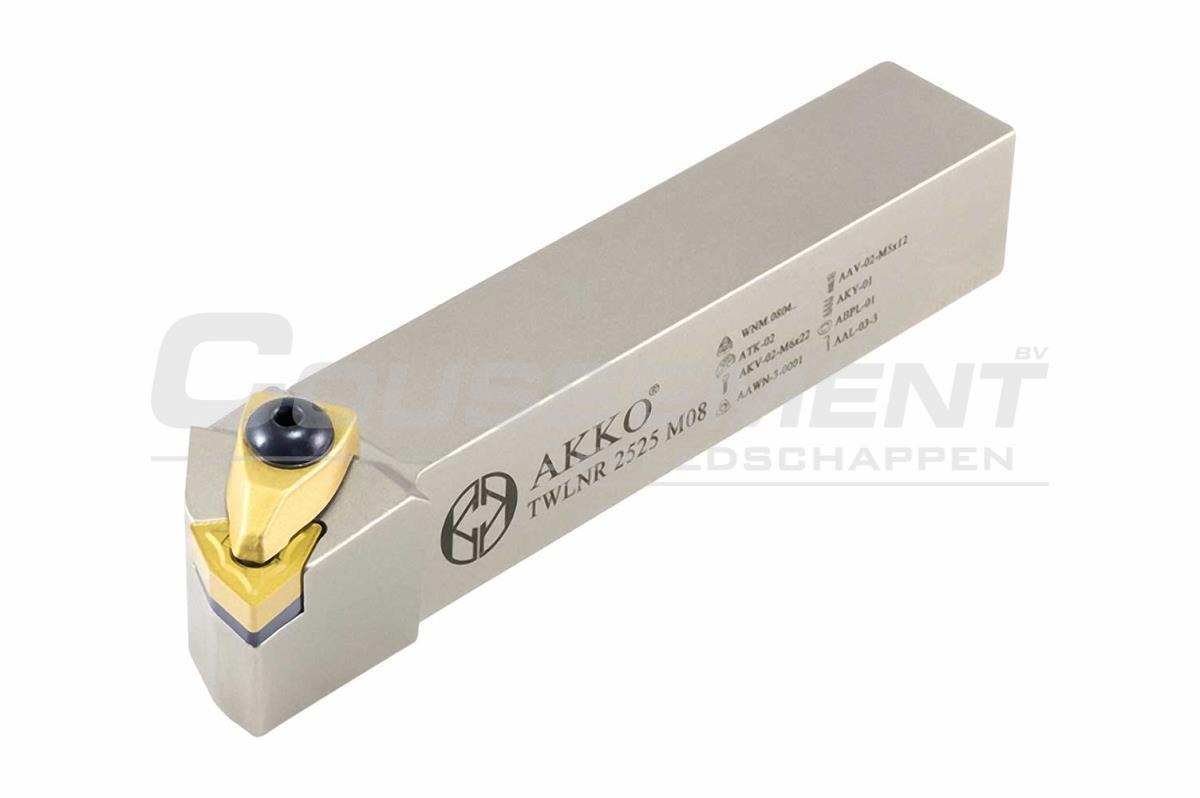

External Turning Toolholder TWLNR/L Akko TWLN

External turning toolholder, according to ISO code TWLNR (right-hand) or TWLNL (left-hand). Brand Akko with reference TWLN.

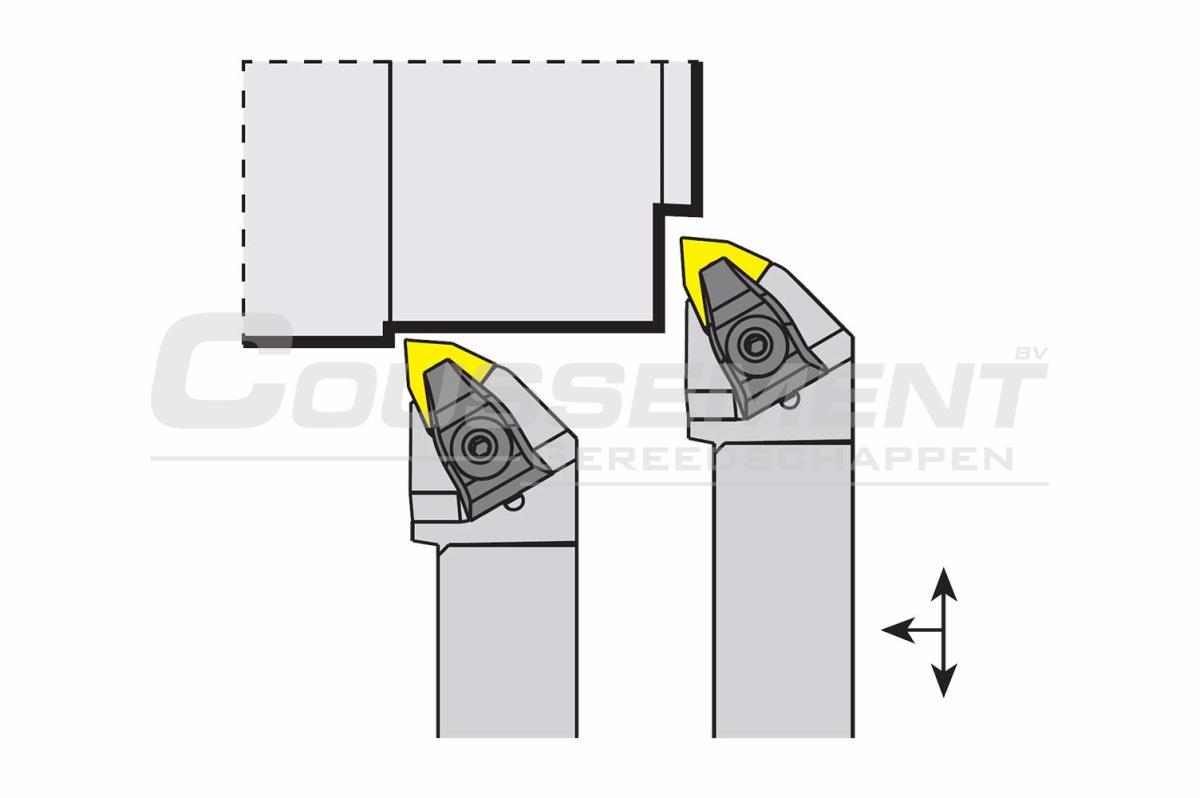

For clamping turning insert WNM., for external turning with right or left direction of rotation according to turning toolholder.

specifications

Brand Akko
Reference TWLN
ISO code TWLNR (Right-hand) / TWLNL (Left-hand)
Type External
Coolant -
Clamping Top clamping
Entering angle (KAPR) 95°
Cutting direction Right-hand / Left-hand
Shank Square

articles WNM. 0604..

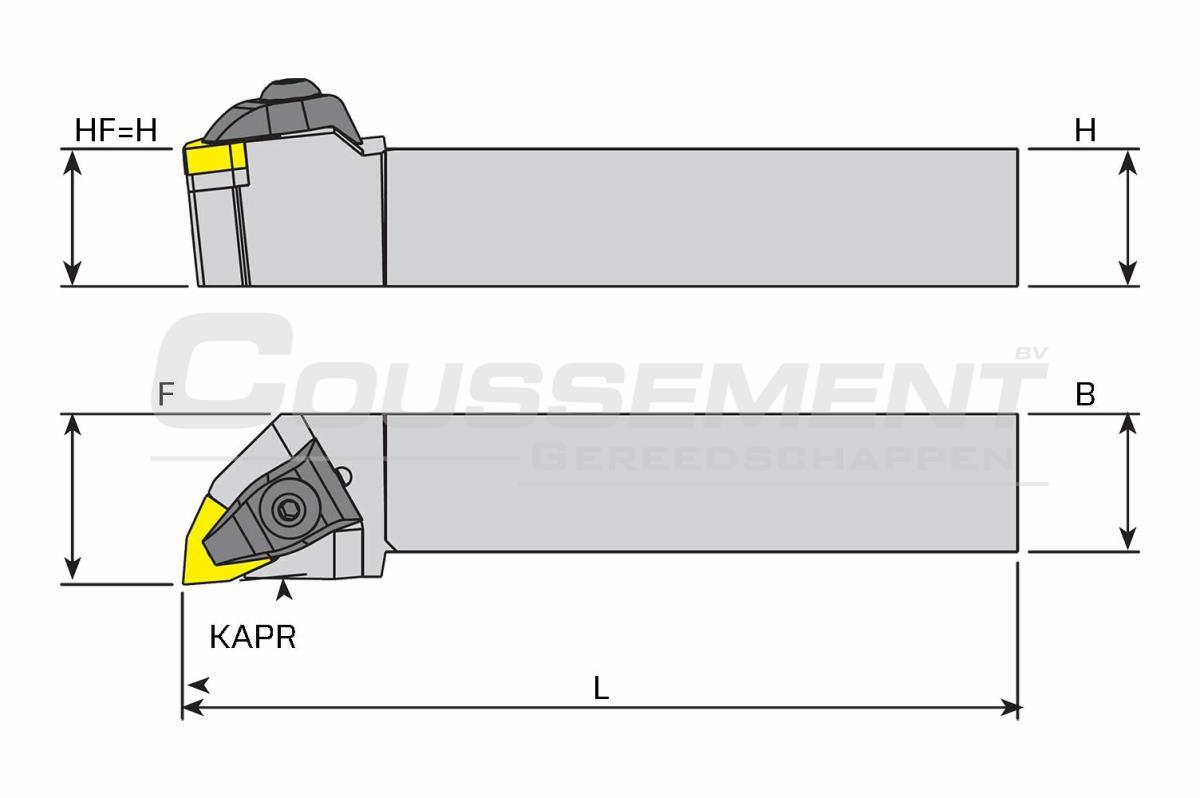

Article code H mm B mm L mm F mm
TWLNR 1616 H06 16 16 100 20
TWLNL 1616 H06 16 16 100 20
TWLNR 2020 K06 20 20 125 25
TWLNL 2020 K06 20 20 125 25
TWLNR 2525 M06 25 25 150 32
TWLNL 2525 M06 25 25 150 32

articles WNM. 0804..

Article code H mm B mm  L mm F mm
TWLNR 2020 K09 20 20 125 25
TWLNL 2020 K09 20 20 125 25
TWLNR 2525 M08 25 25 150 32
TWLNL 2525 M08 25 25 150 32
TWLNR 3232 P08 32 32 170 40
TWLNL 3232 P08 32 32 170 40
TWLNR 4040 S08 40 40 250 50
TWLNL 4040 S08 40 40 250 50
TWLNR 5050 S08 50 50 250 63
TWLNL 5050 S08 50 50 250 63
