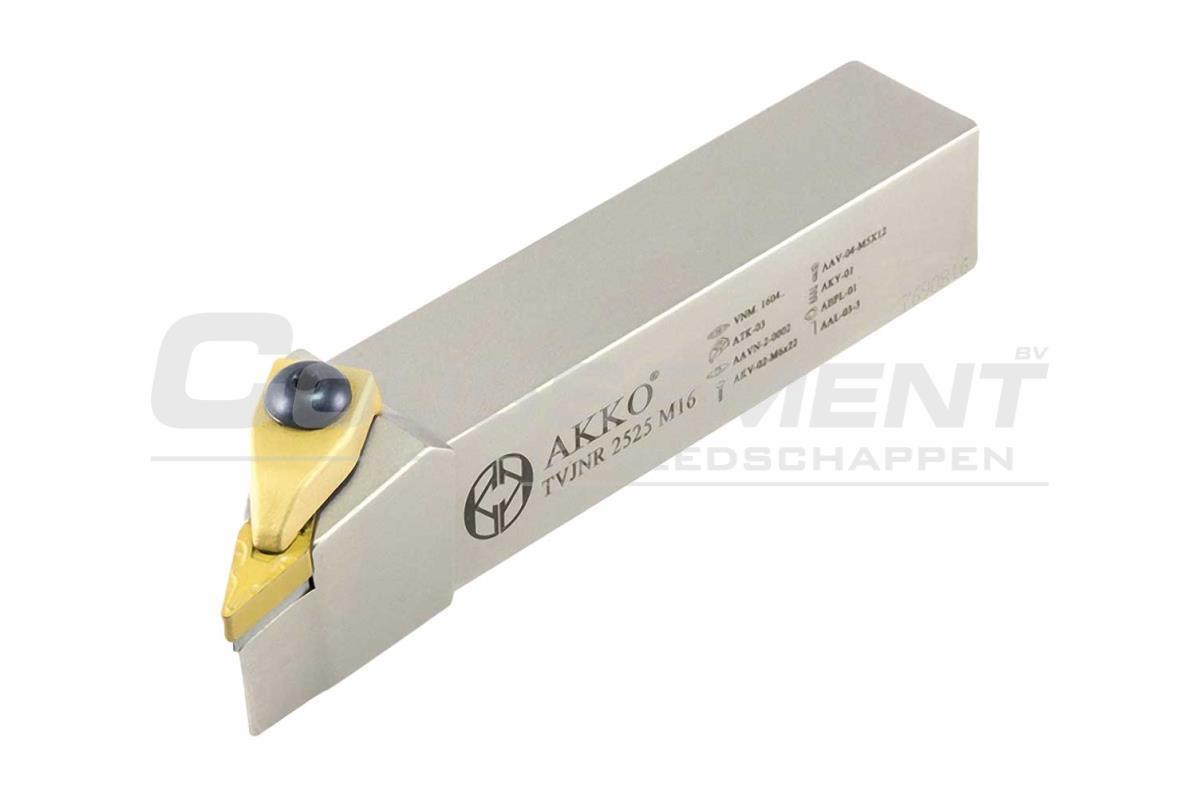

External Turning Toolholder TVJNR/L Akko TVJN

External turning toolholder, according to ISO code TVJNR (right-hand) or TVJNL (left-hand). Brand Akko with reference TVJN.



For clamping turning insert VNM., for external turning with right or left direction of rotation according to turning toolholder.

specifications

Brand Akko
Reference TVJN
ISO code TVJNR (Right-hand) / TVJNL (Left-hand)
Type External
Coolant -
Clamping Top clamping

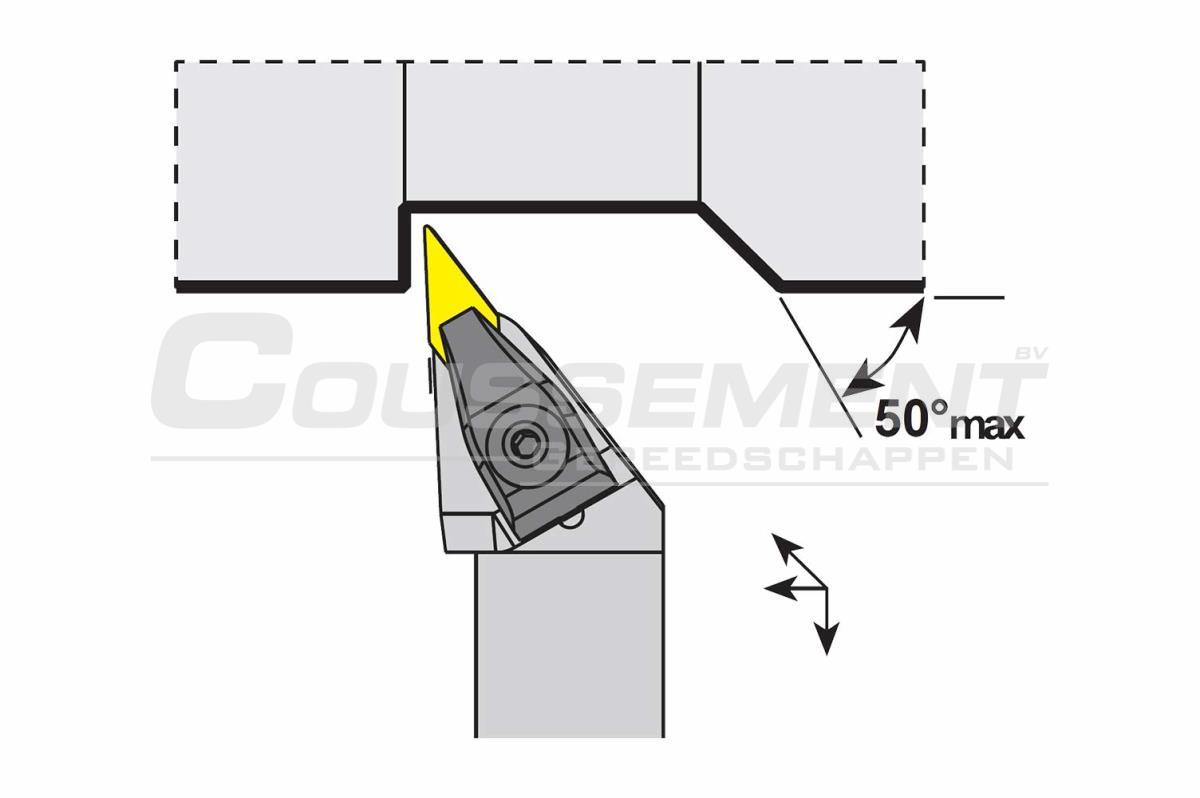

Entering angle (KAPR) 93°
Cutting direction Right-hand / Left-hand
Shank Square

articles VNM. 1604..

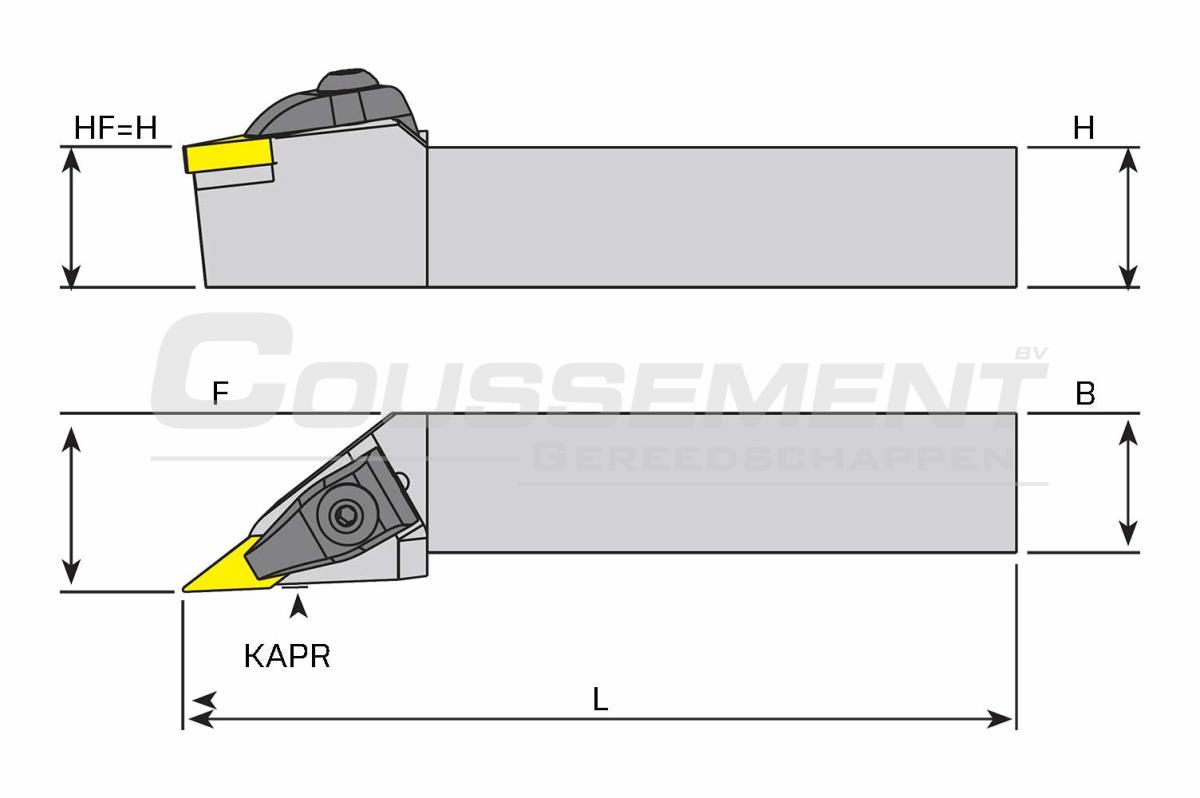

Article code H mm B mm L mm F mm
TVJNR 2020 K16 20 20 125 25
TVJNL 2020 K16 20 20 125 25
TVJNL 2525 M16 25 25 150 32
TVJNL 2525 M16 25 25 150 32
TVJNR 3232 P16 32 32 170 40
TVJNL 3232 P16 32 32 170 40
