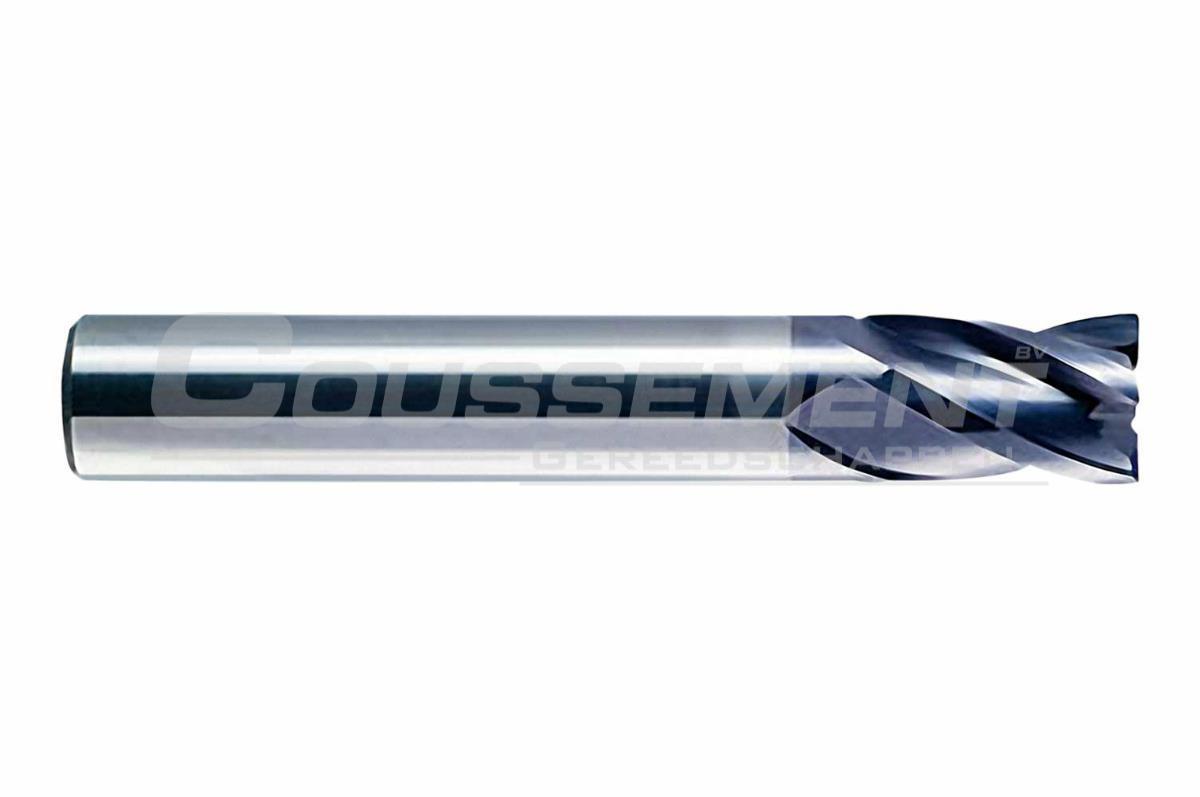

End Mill Solid Carbide TiAlN DIN 6527 S 4F Hepyc 3175


End mill solid carbide, TiAlN-coated, according to standard DIN 6527 S, type N, 4 flutes, with straight shank DIN 6535 HA. Brand Hepyc with reference 3175.



For milling in steel, stainless steel, cast iron, non-ferrous metal and superalloys.

specifications

Brand Hepyc
Reference 3175
Cutting material Carbide
Coating TiAlN
Standard DIN 6527 S
Type N
Cuttng edges 4 flutes
Point Flat - Center-cutting
Helix 30°
Cutting direction Right-hand
Shank DIN 6535 HA

material

Articles

Article code ø mm d mm L x l mm
31750000030 3,00 6 50 x 5
31750000035 3,50 6 50 x 6
31750000040 4,00 6 54 x 8
31750000045 4,50 6 54 x 8
31750000050 5,00 6 54 x 9
31750000060 6,00 6 54 x 10
31750000080 8,00 8 58 x 12
31750000100 10,00 10 66 x 14
31750000120 12,00 12 73 x 16
31750000140 14,00 14 75 x 18
31750000160 16,00 16 82 x 22
31750000180 18,00 18 84 x 24
31750000200 20,00 20 92 x 26
