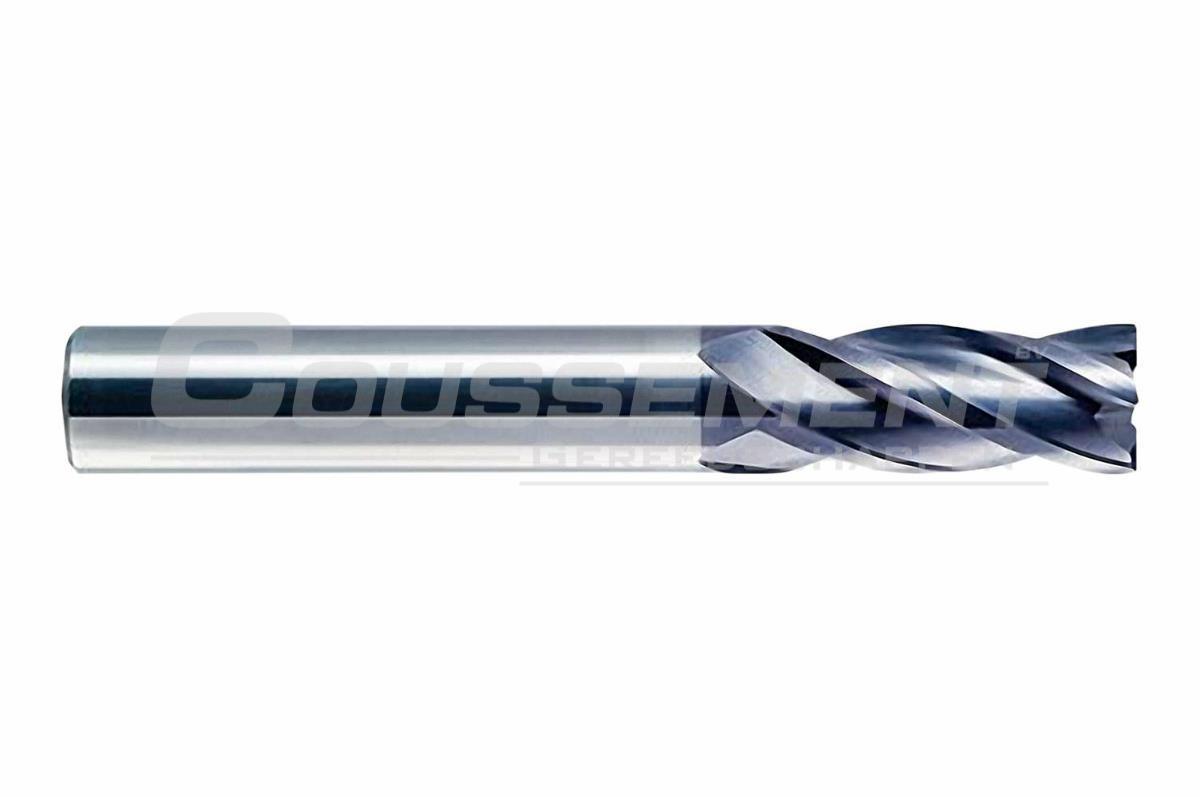

End Mill Solid Carbide TiAlN DIN 6527 L 4F Hepyc 3176


End mill solid carbide, TiAlN-coated, according to standard DIN 6527 L, type N, 4 flutes, with straight shank DIN 6535 HA. Brand Hepyc with reference 3176.


For milling in steel, stainless steel, cast iron, non-ferrous metal and superalloys.

specifications

Brand Hepyc
Reference 3176
Cutting material Carbide
Coating TiAlN
Standard DIN 6527 L
Type N
Cutting edges 4 flutes
Poiint Flat - Center-cutting
Helix 30°
Cutting direction Right-hand
Shank DIN 6535 HA

material

Articles

Article code ø mm d mm L x l mm
31760000030 3,0 6 57 x 8
31760000035 3,5 6 57 x 10
31760000040 4,0 6 57 x 11
31760000045 4,5 6 57 x 11
31760000050 5,0 6 57 x 13
31760000060 6,0 6 57 x 13
31760000080 8,0 8 63 x 19
31760000100 10,0 10 72 x 22
31760000120 12,0 12 83 x 26
31760000140 14,0 14 83 x 26
31760000160 16,0 16 92 x 32
31760000180 18,0 18 92 x 32
31760000200 20,0 20 104 x 38
