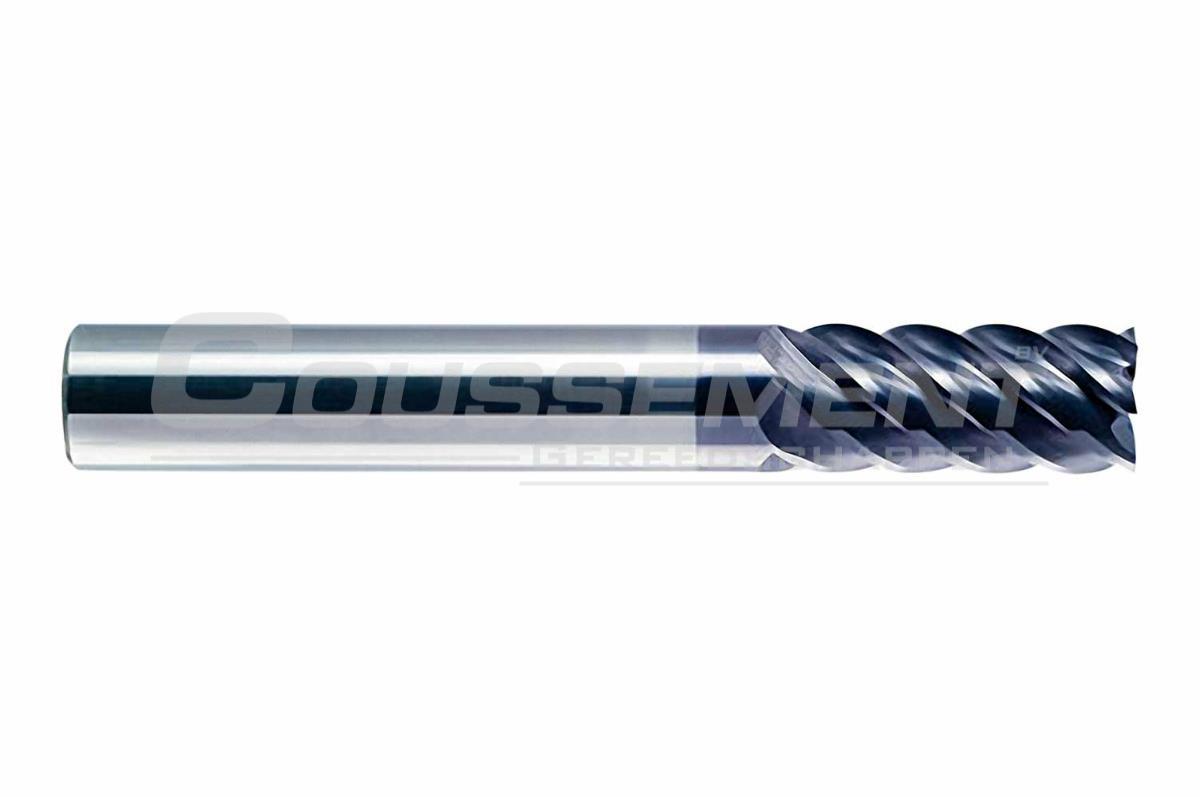

End Mill For Finishing Solid Carbide TiAlN DIN 6527 L Hepyc 3179


End mill for finishing solid carbide, TiAlN-coated, according to standard DIN 6527 L, type W, 6 to 8 flutes, with straight shank DIN 6535 HA. Brand Hepyc with reference 3179.


For contour milling as finishing in steel, stainless steel, cast iron, non-ferrous metal, superalloys and hard materials.

specifications

Brand Hepyc
Reference 3179
Cutting material Carbide
Coating TiAlN
Standard DIN 6527 L
Type W
Cutting edges 6 / 8 flutes
Point Flat - Center-cutting
Helix 45°
Cutting direction Right-hand
Shank DIN 6535 HA

material

Articles

Article code ø mm d mm L x l mm
31790000060 6,0 6 57 x 13
31790000080 8,0 8 63 x 19
31790000100 10,0 10 72 x 22
31790000120 12,0 12 83 x 26
31790000140 14,0 14 83 x 26
31790000160 16,0 16 92 x 32
31790000180 18,0 18 92 x 32
31790000200 20,0 20 104 x 38
