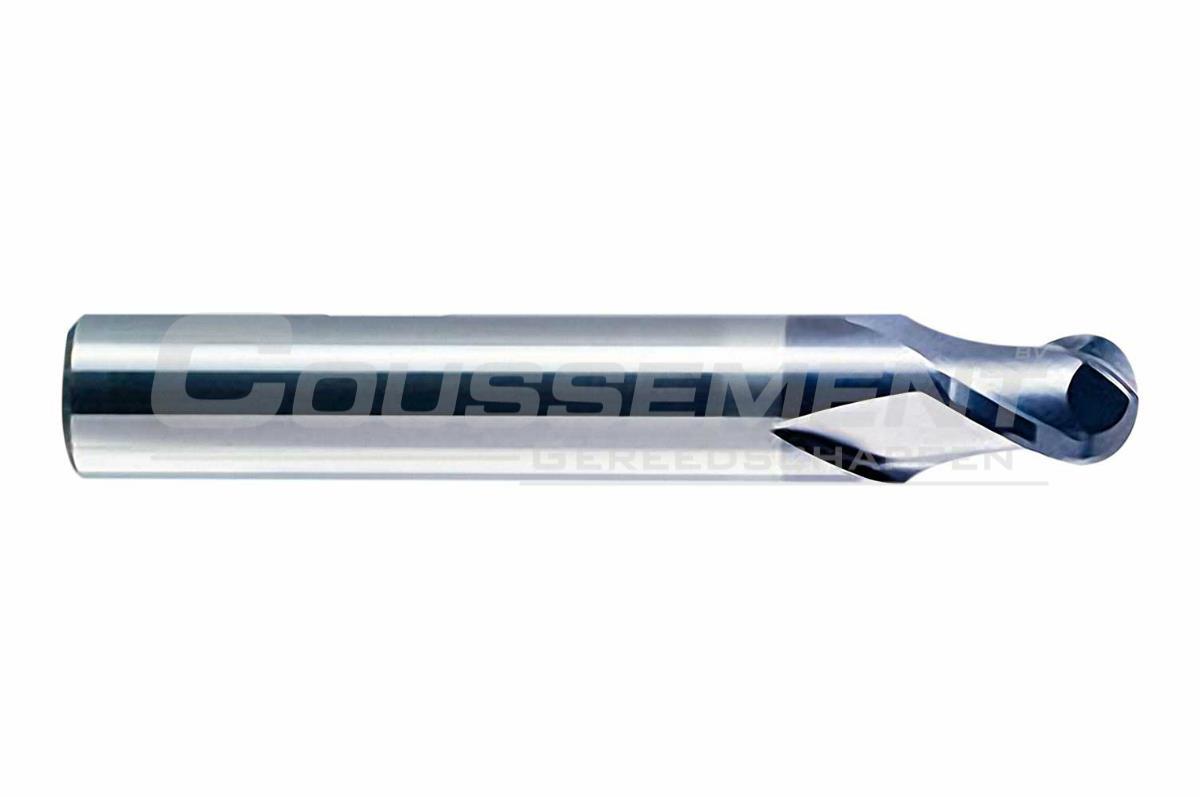

Ball Nose Milling Cutter Solid Carbide TiAlN DIN 6527 S 2F Hepyc 3169


Ball nose milling cutter, TiAlN-coated, according to standard DIN 6527 S, type N, 2 flutes, with straight shank DIN 6535 HA. Brand Hepyc with reference 3169.


For milling moulds and machining complex workpieces in steel, stainless steel, cast iron, non-ferrous metal and hard materials.

specifications

Brand Hepyc
Reference 3169
Cutting material Carbide
Coating TiAlN
Standard DIN 6527 S
Type N
Cutting edges 2 flutes
Point Radius
Helix 30°
Cutting direction Right-hand
Shank DIN 6535 HA

material

Articles

Article code ø mm d mm L x l mm
31690000030 3,0 6 50 x 4
31690000040 4,0 6 54 x 5
31690000050 5,0 6 54 x 6
31690000060 6,0 6 54 x 7
31690000080 8,0 8 58 x 9
31690000100 10,0 10 66 x 11
31690000120 12,0 12 73 x 12
31690000140 14,0 14 75 x 14
31690000160 16,0 16 82 x 16
31690000180 18,0 18 84 x 18
31690000200 20,0 20 92 x 20
