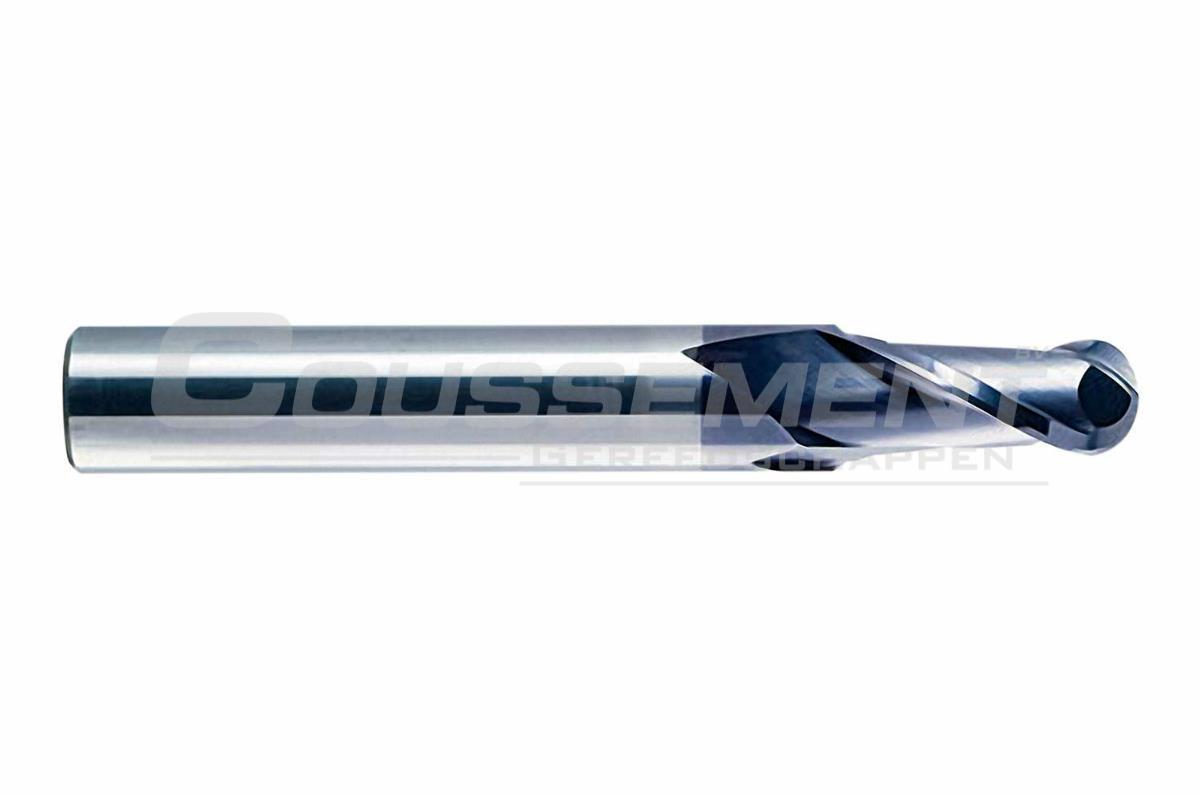

Ball Nose Milling Cutter Solid Carbide TiAlN DIN 6527 L 2F Hepyc 3170


Ball nose milling cutter, TiAlN-coated, according to standard DIN 6527 L, type N, 2 flutes, with straight shank DIN 6535 HA. Brand Hepyc with reference 3170.



For milling moulds and machining complex workpieces in steel, stainless steel, cast iron, non-ferrous metal and hard materials.

specifications

Brand Hepyc
Reference 3170
Cutting material Carbide
Coating TiAlN
Standard DIN 6527 L
Type N
Cutting edges 2 flutes
Point Radius
Helix 30°
Cutting direction Right-hand
Shank DIN 6535 HA

material

Articles

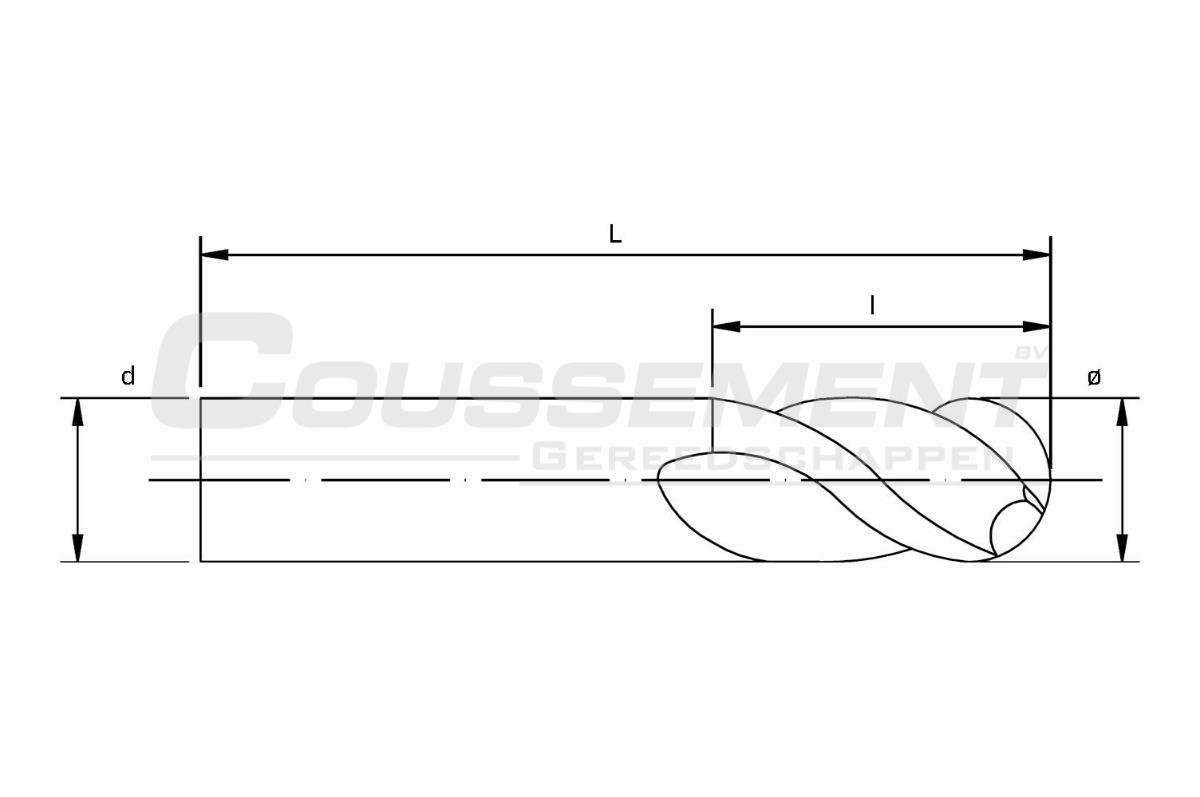

Article code ø mm d mm L x l mm
31700000030 3,00 6 57 x 7
31700000040 4,00 6 57 x 8
31700000050 5,00 6 57 x 10
31700000060 6,00 6 57 x 10
31700000080 8,00 8 63 x 16
31700000100 10,00 10 72 x 19
31700000120 12,00 12 83 x 22
31700000140 14,00 14 83 x 22
31700000160 16,00 16 92 x 26
31700000180 18,00 18 92 x 26
31700000200 20,00 20 104 x 32
