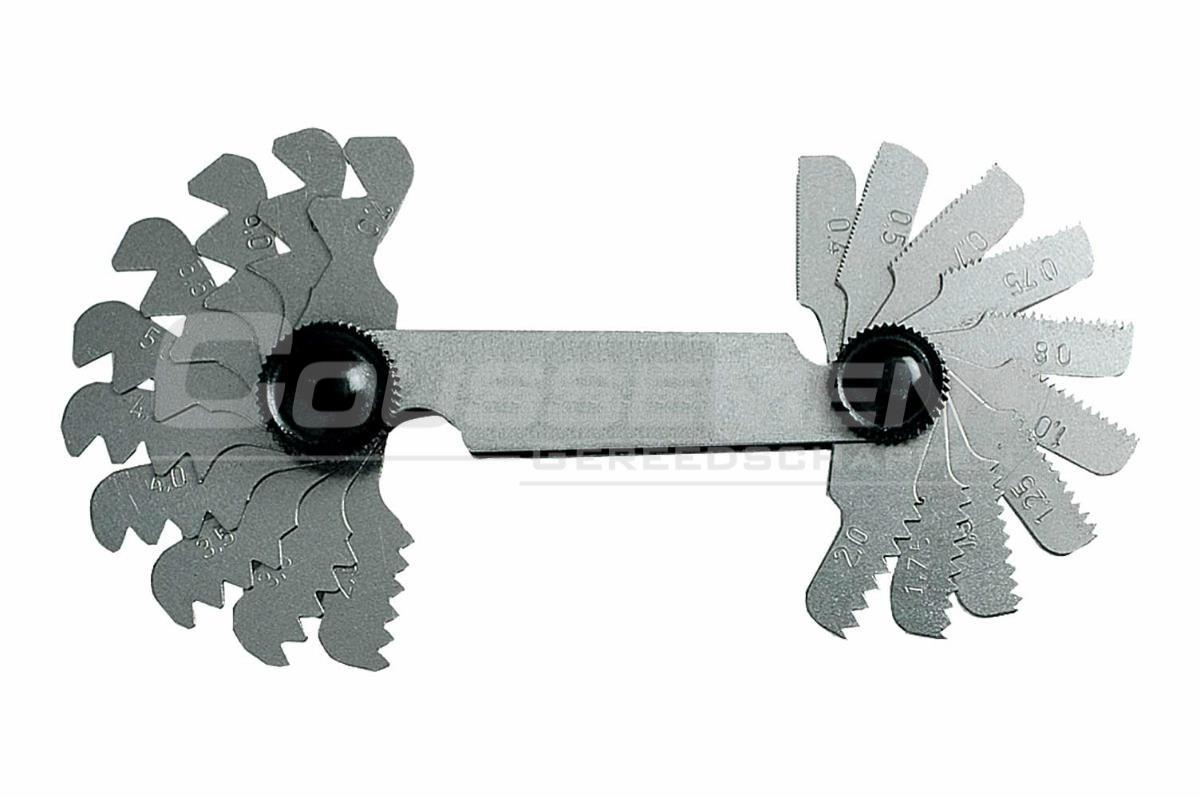

Set Thread Pitch Gauge Mib G84


Set thread pitch gauge, equiped with set screw. Brand Mib with reference G84.



For measuring metric, Withworth, US and iso thread, internal and external.

specifications

Brand Mib
Reference G84
Material Satin chrome finished
Standard -
Type Thread measurement
Measurement technology Analog
Measurement unit Metrisch / Whitworth / US / Iso
Scale division S mm / G inch
Accuracy -
Locking Set screw

Articles

Article code Thread S mm / G inch Pieces
08081000 Whitworth 4 - 62 28
08081001 Metrisch DIN 13 /14 0,40 - 7,00 20
08081002 Metrisch 0,25 - 6,00 24
08081003 Whitworth Pipe 8 - 28 6
08081004 Whitworth - Metrisch DIN 13 / 14 4 - 62 / 0,40 - 7,00 48
08081005 Whitworth - Metrisch 4 - 62 / 0,25 - 6,00 52
08081006 Whitworth - Whitworth Pipe - Metrisch DIN 13 / 14 - W 4 - 62 / 8 - 28 / 0,25 - 6,00 58
08081007 Vg 4 - 42 30
08081008 UN 10 - 40 14
08081009 UNF 12 - 80 16
08081010 UN 4 - 84 52
08081011 Metrisch ISO 0,50 - 6,00 18
08081012 Whitworth - Metrisch ISO 4 - 62 / 0,50 - 6,00 46
08081013 UNC 4 - 64 22
