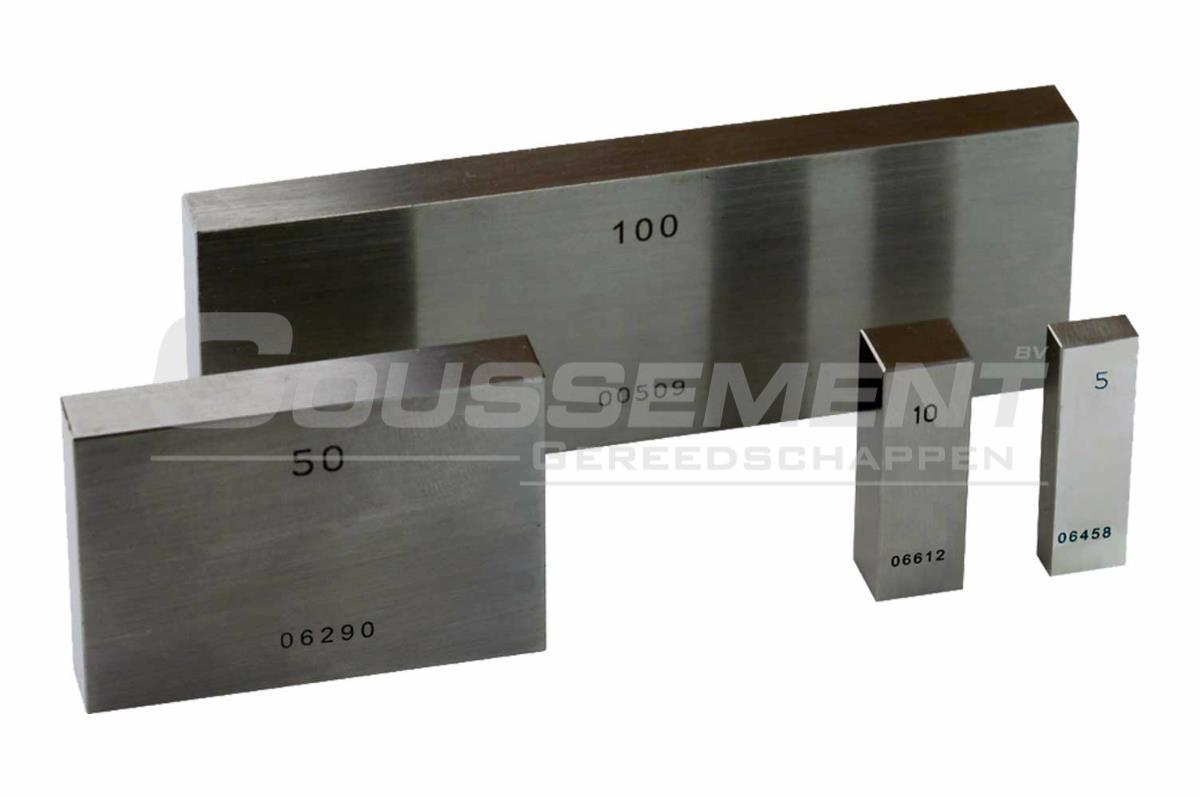

Gauge Block Grade 1 Mib 5020


Gauge block, according to standard DIN EN ISO 3650, grade 1. Brand Mib with reference 5020.



For testing check gauges, setting up measuring instruments and as working dimension.

specifications

Brand Mib
Reference 5020
Material Special steel hardened
Standard DIN EN ISO 3560
Type Parallel gauge block
Measurement technology Analog
Measurement unit Metric
Scale division 10 mm - 5 µm
Accuracy Grade 1

articles

Article code L mm B x D mm
06062140 0,50 30 x 9
06062045 1,00 30 x 9
06062141 1,0005 30 x 9
06062142 1,001 30 x 9

06062143

 1,002 30 x 9
06062144 1,003 30 x 9
06062145 1,004 30 x 9
06062146 1,005 30 x 9
06062147 1,006 30 x 9
06062148 1,007 30 x 9
06062149 1,008 30 x 9
06062150 1,009 30 x 9
06062151 1,01 30 x 9
06062152 1,02 30 x 9
06062153 1,03 30 x 9
06062154 1,04 30 x 9
06062155 1,05 30 x 9
06062156 1,06 30 x 9
06062157 1,07 30 x 9
06062158 1,08 30 x 9
06062159 1,09 30 x 9
06062160 1,10 30 x 9
06062400 1,11 30 x 9
06062401 1,12 30 x 9
06062402 1,13 30 x 9
06062403 1,14 30 x 9
06062404 1,15 30 x 9
06062405 1,16 30 x 9
06062406 1,17 30 x 9
06062407 1,18 30 x 9
06062408 1,19 30 x 9
06062161 1,20 30 x 9
06062409 1,21 30 x 9
06062410 1,22 30 x 9
06062411 1,23 30 x 9
06062412 1,24 30 x 9
06062413 1,25 30 x 9
06062414 1,26 30 x 9
06062415 1,27 30 x 9
06062416 1,28 30 x 9
06062417 1,29 30 x 9
06062162 1,30 30 x 9
06062418 1,31 30 x 9
06062419 1,32 30 x 9
06062420 1,33 30 x 9
06062421 1,34 30 x 9
06062422 1,35 30 x 9
06062423 1,36 30 x 9
06062424 1,37 30 x 9
06062425 1,38 30 x 9
06062426 1,39 30 x 9
06062163 1,40 30 x 9
06062427 1,41 30 x 9
06062428 1,42 30 x 9
06062429 1,43 30 x 9
06062430 1,44 30 x 9
06062431 1,45 30 x 9
06062432 1,46 30 x 9
06062433 1,47 30 x 9
06062434 1,48 30 x 9
06062435 1,49 30 x 9
06062164 1,50 30 x 9
06062165 1,60 30 x 9
06062166 1,70 30 x 9
06062167 1,80 30 x 9
06062168 1,90 30 x 9
06062046 2,00 30 x 9
06062169 2,50 30 x 9
06062047 3,00 30 x 9
06062170 3,50 30 x 9
06062048 4,00 30 x 9
06062171 4,50 30 x 9
06062049 5,00 30 x 9
06062172 5,50 30 x 9
06062050 6,00 30 x 9
06062173 6,50 30 x 9
06062051 7,00 30 x 9
06062174 7,50 30 x 9
06062052 8,00 30 x 9
06062175 8,50 30 x 9
06062053 9,00 30 x 9
06062176 9,50 30 x 9
06062054 10,00 30 x 9
06062436 10,50 30 x 9
06062437 11,00 30 x 9
06062438 11,50 30 x 9
06062439 12,00 30 x 9
06062440 12,50 30 x 9
06062441 13,00 30 x 9
06062442 13,50 30 x 9
06062443 14,00 30 x 9
06062444 14,50 30 x 9
06062445 15,00 30 x 9
06062446 15,50 30 x 9
06062447 16,00 30 x 9
06062448 16,50 30 x 9
06062449 17,00 30 x 9
06062450 17,50 30 x 9
06062451 18,00 30 x 9
06062452 18,50 30 x 9
06062453 19,00 30 x 9
06062454 19,50 30 x 9
06062055 20,00 30 x 9
06062455 20,50 30 x 9
06062456 21,00 30 x 9
06062457 21,50 30 x 9
06062458 22,00 30 x 9
06062459 22,50 30 x 9
06062460 23,00 30 x 9
06062461 23,50 30 x 9
06062462 24,00 30 x 9
06062463 24,50 30 x 9
06062177 25,00 30 x 9
06062056 30,00 30 x 9
06062057 40,00 35 x 9
06062058 50,00 35 x 9
06062059 60,00 35 x 9
06062060 70,00 35 x 9
06062178 75,00 35 x 9
06062061 80,00 35 x 9
06062062 90,00 35 x 9
06062063 100,00 35 x 9
