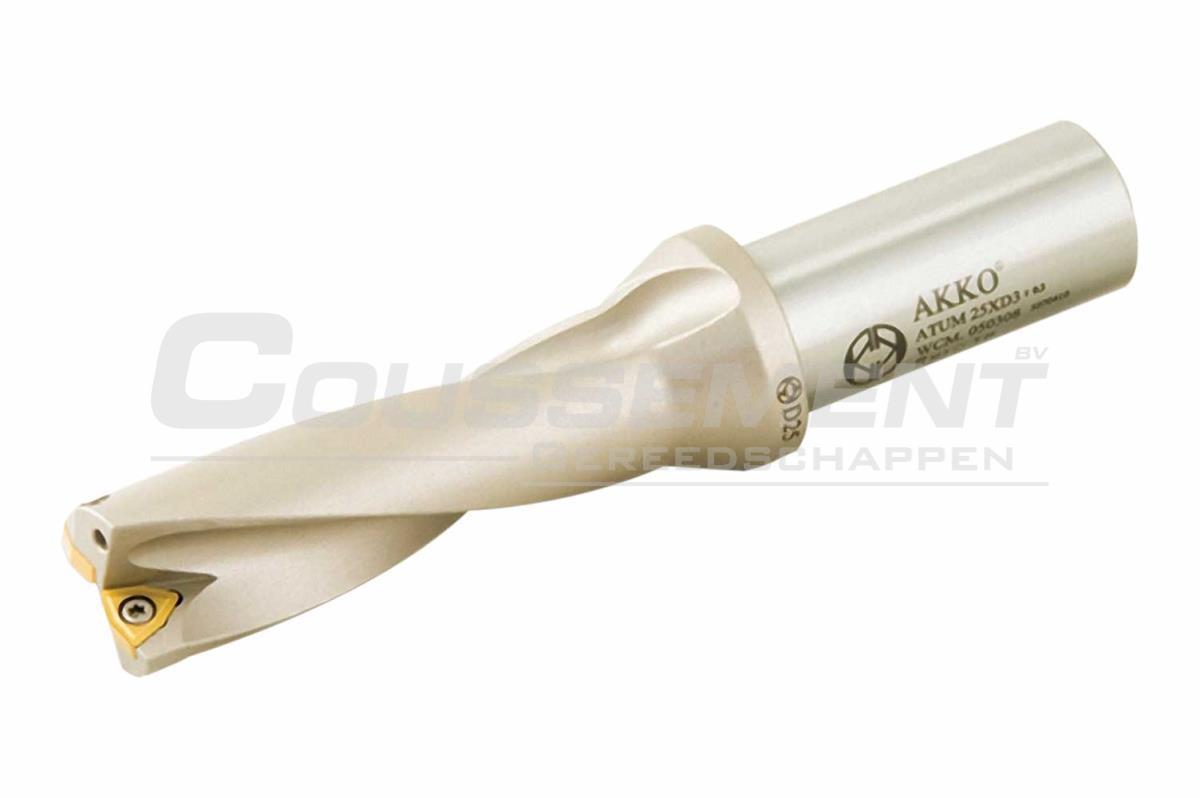

Indexable Insert Drill 3xD WCM. Akko ATUM D3-WCM.

Indexable insert drill, acording to standard 3xD, type WCM., with straight shank with parallel flat ISO 9766, equiped with internal coolant. Brand Akko with reference ATUM D3-WCM.



For clamping ISO drilling inserts WCM., for drilling holes.

specifications

Brand Akko
Reference ATUM D3-WCM.
Standard 3xD
Cutting edges 1
Coolant Internal coolant
Clamping Screw clamping
Shank ISO 9766

articles wcm. 030208

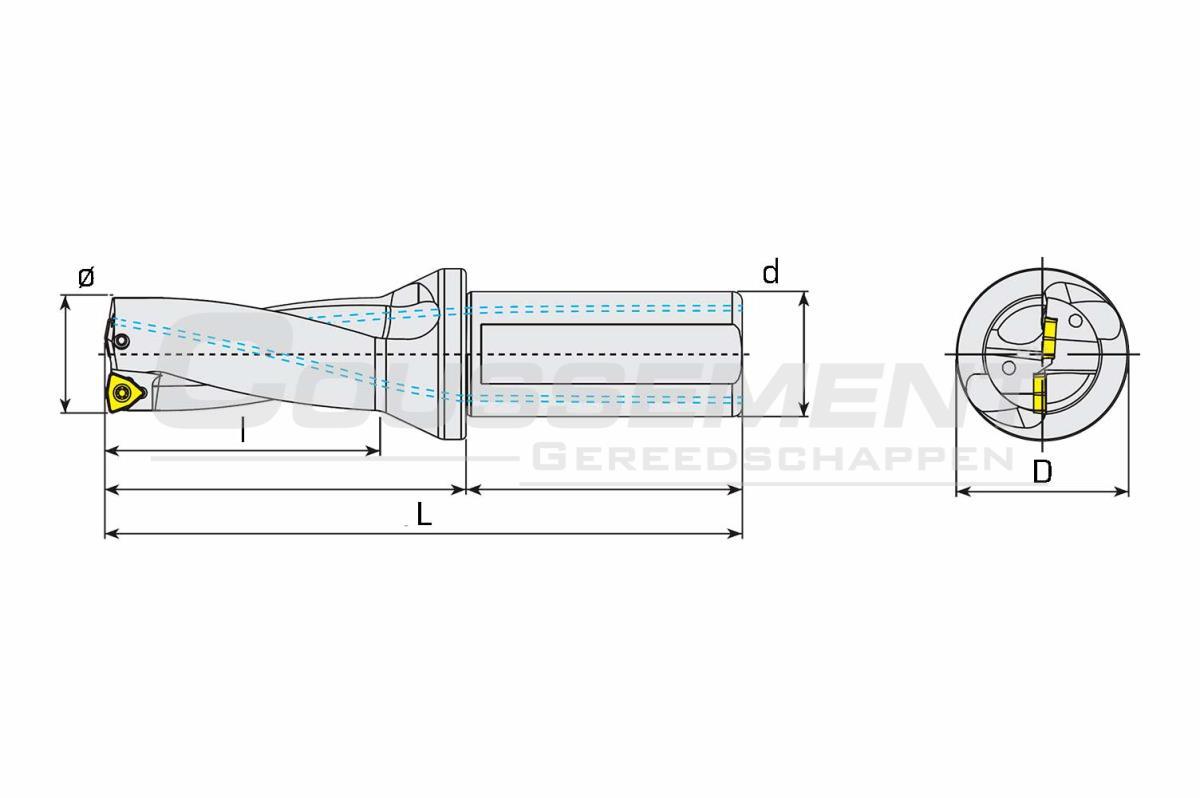

Article code ø mm d mm  D mm L x l mm
ATUM 16XD3 WCM. 16,00 25 34 126 x 48
ATUM 16.5XD3 WCM. 16,50 25 34 126 x 48
ATUM 17XD3 WCM. 17,00 25 34 129 x 51
ATUM 17.5XD3 WCM. 17,50 25 34 129 x 51
ATUM 18XD3 WCM. 18,00 25 34 132 x 54
ATUM 18.5XD3 WCM. 18,50 25 34 132 x 54
ATUM 19XD3 WCM. 19,00 25 34 135 x 57
ATUM 19.5XD3 WCM. 19,50 25 34 135 x 57

articles wcm. 040208

Article code ø mm d mm D mm  L x l mm
ATUM 20XD3 WCM. 20,00 25 34 138 x 60
ATUM 20.5XD3 WCM. 20,50 25 34 138 x 60
ATUM 21XD3 WCM.
 21,00 25 34 141 x 63
ATUM 21.5XD3 WCM. 21,50 25 34 141 x 63
ATUM 22XD3 WCM. 22,00 25 34 144 x 66
ATUM 22.5XD3 WCM.
 22,50  25 34 144 x 66
ATUM 23XD3 WCM. 23,00 25 34 147 x 69
ATUM 23.5XD3 WCM. 23,50 25 34 147 x 69

ARTIcles wcm. 050308

Article code ø mm d mm D mm  L x l mm
ATUM 24XD3 WCM. 24,00 25 34 150 x 72
ATUM 24.5XD3 WCM.
 24,50 25 34 150 x 72
ATUM 25XD3 WCM. 25,00 25 34 153 x 75
ATUM 25.5XD3 WCM. 25,50 25 34 153 x 75

ATUM 26XD3 WCM.

 26,00 25 34 156 x 78
ATUM 26.5XD3 WCM. 26,50 25 34 156 x 78
ATUM 27XD3 WCM. 27,00 25 34 159 x 81
ATUM 27.5XD3 WCM. 27,50 25 34 159 x 81
ATUM 28XD3 WCM. 28,00 25 34 162 x 84
ATUM 28.5XD3 WCM. 28,50 25 34 162 x 84
ATUM 29XD3 WCM. 29,00 25 34 165 x 87
ATUM 29.5XD3 WCM. 29,50 25 34 165 x 87

articles wcm. 06t308

Article code ø mm d mm  D mm L x l mm
ATUM 30XD3 WCM. 30,00 32 44 177 x 90
ATUM 30.5XD3 WCM. 30,50 32 44 177 x 90
ATUM 31XD3 WCM.
 31,00 32 44 180 x 93
ATUM 31.5XD3 WCM. 31,50 32 44 180 x 93
ATUM 32XD3 WCM. 32,00 32 44 183 x 96
ATUM 32.5XD3 WCM. 32,50 32 44 183 x 96
ATUM 33XD3 WCM. 33,00 32 44 186 x 99
ATUM 33.5XD3 WCM. 33,50 32 44 186 x 99
ATUM 34XD3 WCM. 34,00 32 44 189 x 102
ATUM 34.5XD3 WCM. 34,50 32 44 189 x 102
ATUM 35XD3 WCM. 35,00 32 44 192 x 105
ATUM 35.5XD3 WCM. 35,50 32 44 192 x 105
ATUM 36XD3 WCM. 36,00 32 44 195 x 108
ATUM 36.5XD3 WCM. 36,50 32 44 195 x 108
ATUM 37XD3 WCM. 37,00 32 44 198 x 111
ATUM 37.5XD3 WCM. 37,50 32 44 198 x 111
ATUM 38XD5 WCM. 38,00 32 44 201 x 114
ATUM 38.5XD3 WCM.
 38,50 32 44 201 x 114
ATUM 39XD3 WCM. 39,00 32 44 204 x 117
ATUM 39.5XD3 WCM. 39,50 32 44 204 X 117
ATUM 40XD3 WCM. 40,00 32  44 207 x 120
ATUM 40.5XD3 WCM. 40,50 32 44 207 x 120
ATUM 41XD3 WCM. 41,00 32 44 210 x 123
ATUM 41.5XD3 WCM. 41,50 32 44 210 x 123
ATUM 42XD3 WCM. 42,00 32 44 213 x 126
ATUM 42.5XD3 WCM. 42,50 32 44 213 x 126
ATUM 43XD3 WCM. 43,00 32 44 216 x 129
ATUM 43.5XD3 WCM. 43,50 32 44 216 x 129
ATUM 44XD3 WCM. 44,00 32 44 219 x 132
ATUM 44.5XD3 WCM. 44,50 32 44 219 x 132

articles wcm. 080412

Article code ø mm d mm D mm  L x l mm
ATUM 45XD3 WCM.
 45,00 40 54 237 x 135
ATUM 45.5XD3 WCM. 45,50 40 54 237 x 135
ATUM 46XD3 WCM.
 46,00 40 54 240 x 138
ATUM 47XD3 WCM. 47,00 40 54 243 x 141
ATUM 48XD3 WCM. 48,00 40 54 246 x 144
ATUM 49XD3 WCM. 49,00 40 54 249 x 147
ATUM 50XD3 WCM. 50,00 40 54 252 x 150
ATUM 51XD3 WCM. 51,00 40 54 255 x 153
ATUM 52XD3 WCM. 52,00 40 54 258 x 156
ATUM 53XD3 WCM. 53,00 40 54 261 x 159
ATUM 54XD3 WCM. 54,00 40 54 264 x 162
ATUM 55XD3 WCM. 55,00 40 54 267 x 165
ATUM 56XD3 WCM. 56,00 40 54 270 x 168
ATUM 57XD3 WCM. 57,00 40 54 273 x 171
ATUM 58XD3 WCM. 58,00 40 54 276 x 174
ATUM 59XD3 WCM. 59,00 40 54 279 x 177
ATUM 60XD3 WCM. 60,00 40 54 282 x 180
