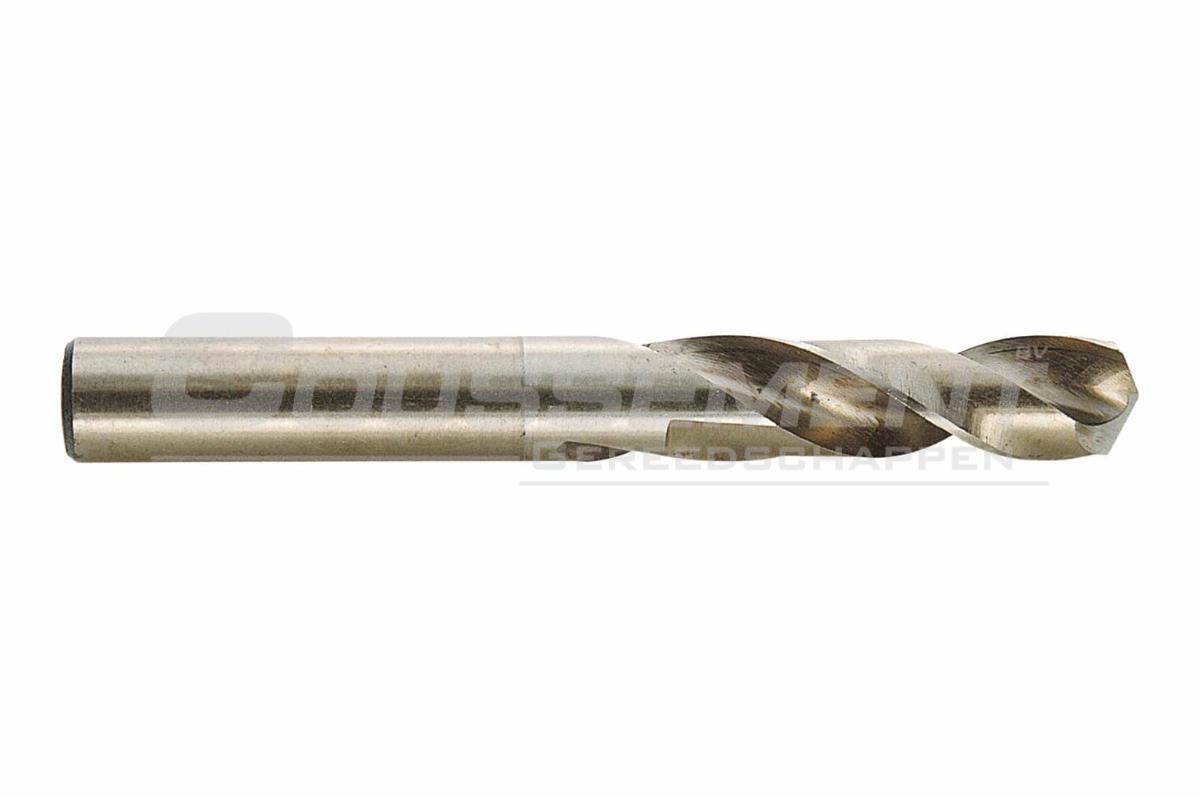

Twist Drill Bit Short HSS-Co5 DIN 1897 N Hepyc 1118


Twist drill bit short HSS-Co5, according to standard DIN 1897, type N, with straight shank, equiped with split point top corner. Brand Hepyc with reference 1118.
Available in standard packaging per 10/5 pieces.



For drilling holes in steel, stainless steel, cast iron and non-ferrous metal.

specifications

Brand Hepyc
Reference 1118
Cutting material HSS-Co5
Coating -
Standard DIN 1897
Type N
Point 135° - Split point
Helix 30°
Cutting direction Right-hand
Shank Straight

material

Articles

Article code ø mm ø mm L x l mm
11180000200 2,00 38 x 12
11180000220 2,20 38 x 12
11180000225 2,25 40 x 13
11180000250 2,50 43 x 14
11180000270 2,70 43 x 14
11180000275 2,75 46 x 16
11180000300 3,00 46 x 16
11180000320 3,20 46 x 16
11180000325 3,25 49 x 18
11180000350 3,50 52 x 20
11180000375 3,75 52 x 20
11180000400 4,00 55 x 22
11180000410 4,10 55 x 22
11180000420 4,20 55 x 22
11180000425 4,25 55 x 22
11180000450 4,50 58 x 24
11180000475 4,75 58 x 24
11180000490 4,90 58 x 24
11180000500 5,00 62 x 26
11180000510 5,10 62 x 26
11180000520 5,20 62 x 26
11180000525 5,25 62 x 26
11180000550 5,50 66 x 28
11180000575 5,75 66 x 28
11180000600 6,00 66 x 28
11180000650 6,50 70 x 31
11180000675 6,75 74 x 34
11180000700 7,00 74 x 34
11180000750 7,50 74 x 34
11180000800 8,00 79 x 37
11180000825 8,25 79 x 37
11180000850 8,50 79 x 37
11180000900 9,00 84 x 40
11180000950 9,50 84 x 40
11180001000 10,00 89 x 43
11180001050 10,50 89 x 43
11180001100 11,00 95 x 47
11180001150 11,50 95 x 47
11180001200 12,00 102 x 51
11180001250 12,50 102 x 51
11180001300 13,00 102 x 51
11180000330 3,3 49 x 18
