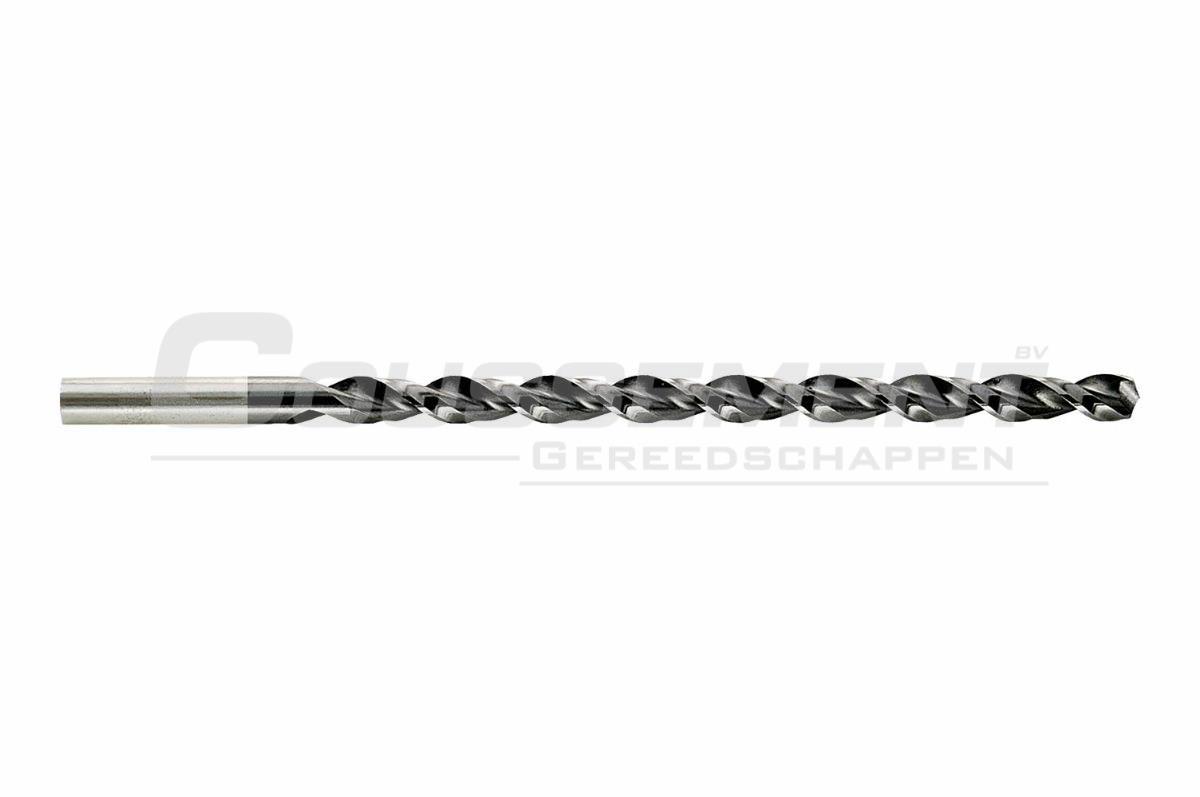

Twist Drill Bit Long HSS-Co5 TiAlN DIN 340 S Hepyc 1164


Twist drill bit long HSS-Co5, TiAln-coated, according to standard DIN 340, type S, with straight shank, equiped with split point top corner. Brand Hepyc with reference 1164.



For drilling holes in steel, stainless steel and non-ferrous metal.

specifications

Brand Hepyc
Reference 1164
Cutitng material HSS-Co5
Coating TiAlN
Standard DIN 338
Type S
Point 135° - Split point
Helix 30°
Cutting direction Right-hand
Shank Straight

material

Articles

Article code ø mm L x l mm
11640000200 2,00 85 x 56
11640000210 2,10 85 x 56
11640000230 2,30 90 x 59
11640000250 2,50 95 x 62
11640000270 2,70 100 x 66
11640000300 3,00 100 x 66
11640000310 3,10 100 x 69
11640000320 3,20 106 x 69
11640000330 3,30 106 x 69
11640000350 3,50 112 x 73
11640000360 3,60 112 x 73
11640000370 3,70 112 x 73
11640000400 4,00 119 x 78
11640000410 4,10 119 x 78
11640000420 4,20 119 x 78
11640000430 4,30 126 x 82
11640000450 4,50 126 x 82
11640000470 4,70 126 x 82
11640000480 4,80 132 x 87
11640000500 5,00 132 x 87
11640000510 5,10 132 x 87
11640000520 5,20 132 x 87
11640000550 5,50 139 x 91
11640000560 5,60 139 x 91
11640000580 5,80 139 x 91
11640000600 6,00 139 x 91
11640000620 6,20 148 x 97
11640000650 6,50 148 x 97
11640000680 6,80 156 x 102
11640000700 7,00 156 x 102
11640000720 7,20 156 x 102
11640000750 7,50 156 x 102
11640000800 8,00 165 x 109
11640000820 8,20 165 x 109
11640000850 8,50 165 x 109
11640000880 8,80 175 x 115
11640000900 9,00 175 x 115
11640000950 9,50 175 x 115
11640000980 9,80 184 x 121
11640001000 10,00 184 x 121
11640001050 10,50 184 x 121
11640001100 11,00 195 x 128
11640001150 11,50 195 x 128
11640001200 12,00 195 x 128
11640001300 13,00 195 x 128
