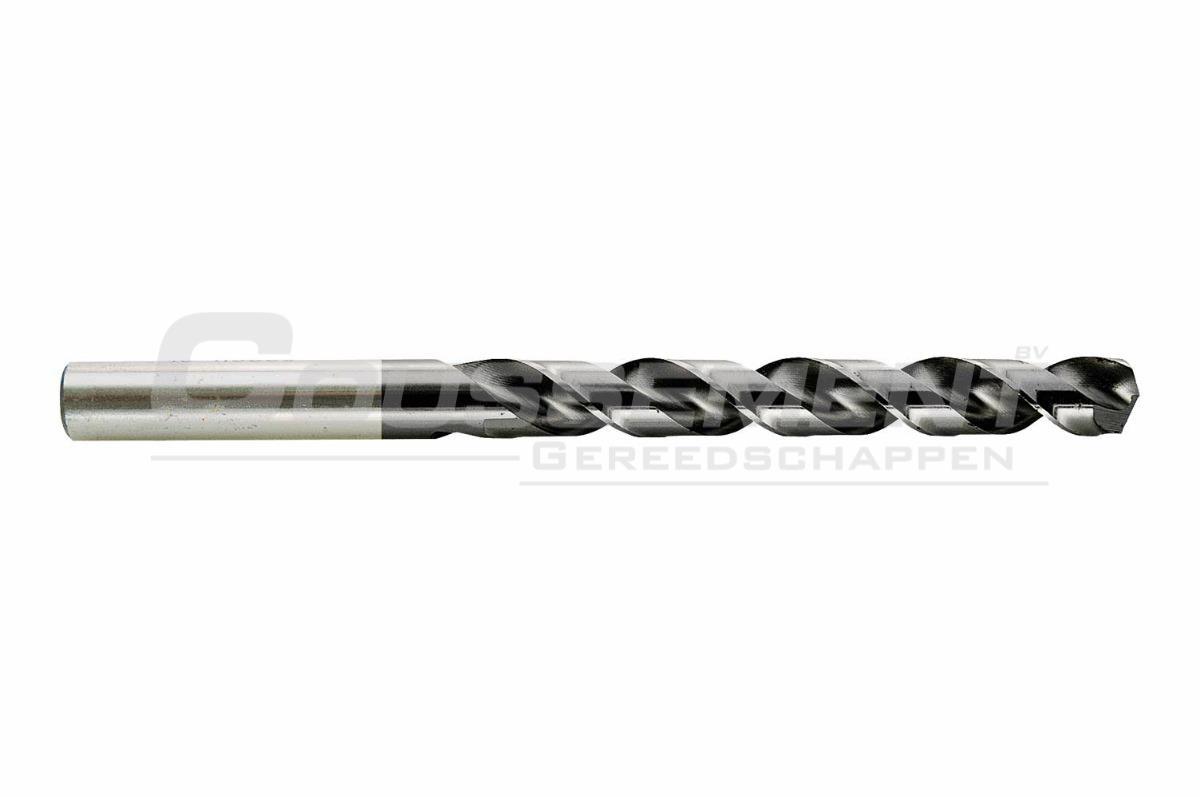

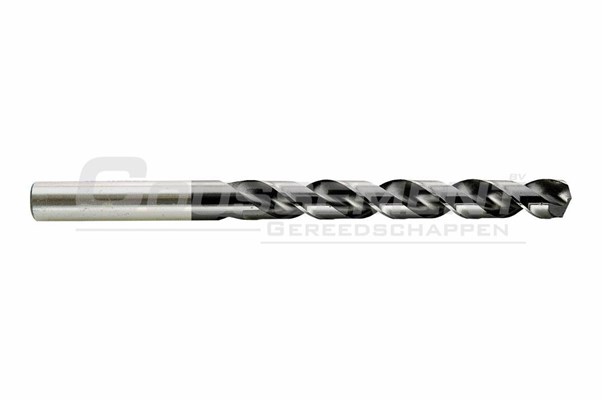

Twist drill bit HSS-Co5 TiAlN DIN 338 W Hepyc 1162


Twist drill bit HSS-Co5, TiAlN-coated, according to standard DIN 338, type W, with straight shank, equiped with split point top corner. Brand Hepyc with reference 1162.



For drilling holes in stainless steel, non-ferrous metal and superalloys.

specifications

Brand Hepyc
Reference 1162
Cutting material HSS-Co5
Coating TiAlN
Standard DIN 338
Type W
Point 135° - Split point
Helix 40°
Cutting direction Right-hand
Shank Straight

material

Articles

Article code ø mm L x l mm
11620000100 1,00 34 x 12
11620000125 1,25 38 x 16
11620000150 1,50 40 x 18
11620000200 2,00 49 x 24
11620000225 2,25 53 x 27
11620000250 2,50 57 x 30
11620000275 2,75 61 x 33
11620000300 3,00 61 x 33
11620000310 3,10 65 x 36
11620000320 3,20 65 x 36
11620000325 3,25 65 x 36
11620000330 3,30 65 x 36
11620000340 3,40 70 x 39
11620000350 3,50 70 x 39
11620000375 3,75 70 x 39
11620000400 4,00 75 x 43
11620000410 4,10 75 x 43
11620000420 4,20 75 x 43
11620000425 4,25 75 x 43
11620000450 4,50 80 x 47
11620000475 4,75 80 x 47
11620000500 5,00 86 x 52
11620000510 5,10 86 x 52
11620000520 5,20 86 x 52
11620000525 5,25 86 x 52
11620000550 5,50 93 x 57
11620000575 5,75 93 x 57
11620000600 6,00 93 x 57
11620000625 6,25 101 x 63
11620000650 6,50 101 x 63
11620000675 6,75 109 x 69
11620000700 7,00 109 x 69
11620000725 7,25 109 x 69
11620000750 7,50 109 x 69
11620000800 8,00 117 x 75
11620000825 8,25 117 x 75
11620000850 8,50 117 x 75
11620000900 9,00 125 x 81
11620000950 9,50 125 x 81
11620001000 10,00 133 x 87
11620001025 10,25 133 x 87
11620001050 10,50 133 x 87
11620001100 11,00 142 x 94
11620001150 11,50 142 x 94
11620001200 12,00 151 x 101
11620001250 12,50 151 x 101
11620001300 13,00 151 x 101
