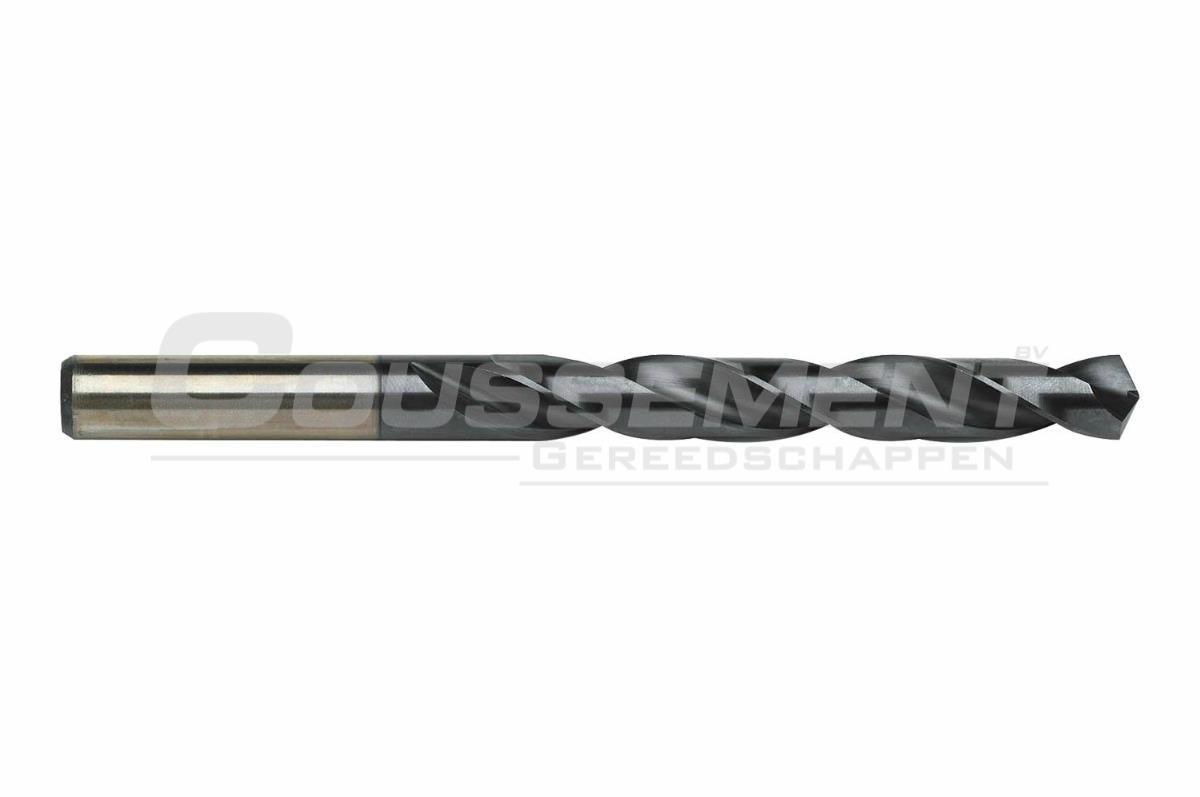

Twist Drill Bit HSS-Co5 TiAlN DIN 338 N Hepyc 1161


Twist drill bit HSS-Co5, TiAln-coated, according to standard DIN 338, type N, with straight shank, equiped with split point top corner. Brand Hepyc with reference 1161.



For drilling holes in steel, stainless steel, cast iron and non-ferrous metal.

specifications

Brand Hepyc
Reference 1161
Cutting material HSS-Co5
Coating TiAlN
Standard DIN 338
Type N
Point 135° - Split point
Helix 30°
Cutting direction Right-hand
Shank Straight

material

Articles

Article code ø mm L x l mm
11610000200 2,00 49 x 24
11610000250 2,50 57 x 30
11610000300 3,00 61 x 33
11610000310 3,10 65 x 36
11610000325 3,25 65 x 36
11610000330 3,30 65 x 36
11610000340 3,40 70 x 39
11610000350 3,50 70 x 39
11610000400 4,00 75 x 43
11610000410 4,10 75 x 43
11610000420 4,20 75 x 43
11610000425 4,25 75 x 43
11610000430 4,30 80 x 47
11610000450 4,50 80 x 47
11610000500 5,00 86 x 52
11610000510 5,10 86 x 52
11610000525 5,25 86 x 52
11610000550 5,50 93 x 57
11610000600 6,00 93 x 57
11610000650 6,50 101 x 63
11610000700 7,00 109 x 69
11610000750 7,50 109 x 69
11610000800 8,00 117 x 75
11610000850 8,50 117 x 75
11610000900 9,00 125 x 81
11610000950 9,50 125 x 81
11610001000 10,00 133 x 87
11610001050 10,50 133 x 87
11610001100 11,00 142 x 94
11610001150 11,50 142 x 94
11610001200 12,00 151 x 101
11610001250 12,50 151 x 101
11610001300 13,00 151 x 101
