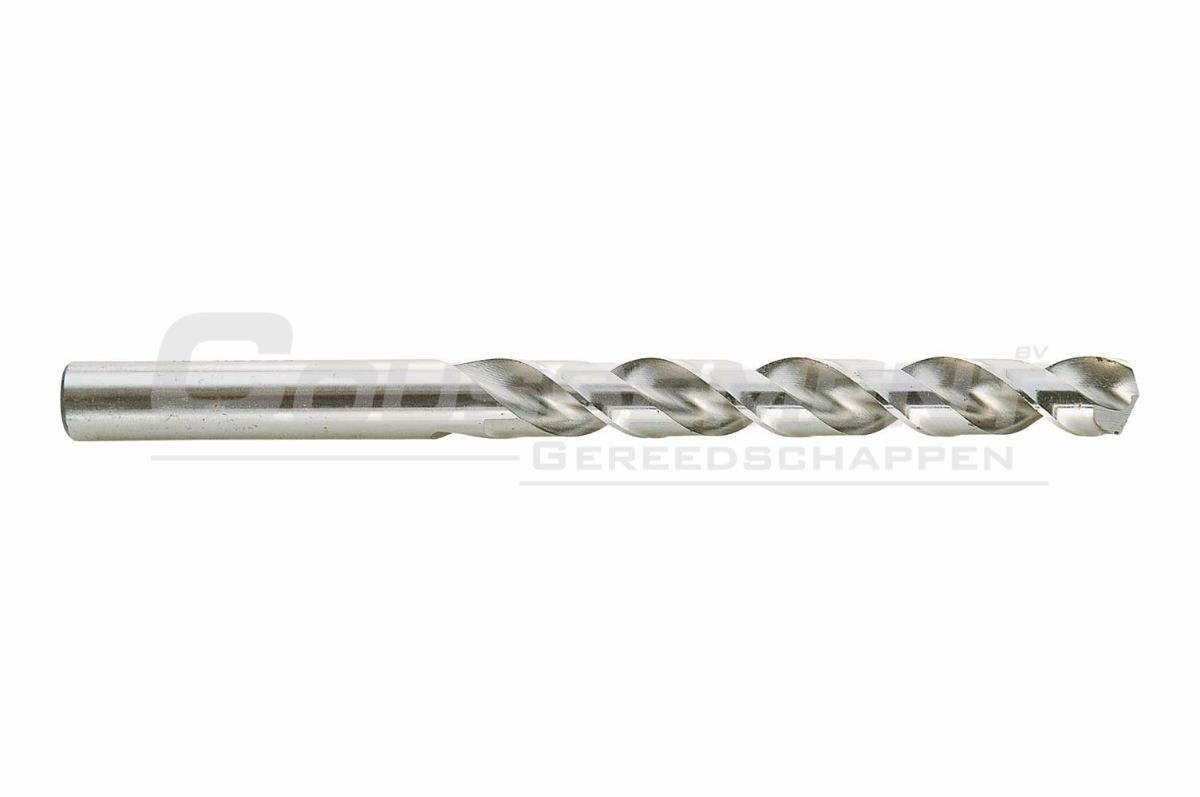

Twist Drill Bit HSS-Co5 DIN 338 W Hepyc 1106


Twist drill bit HSS-Co5, according to standard DIN 338, type W, with straight shank, equiped with split point top corner. Brand Hepyc with reference 1106.

Available in standard packaging per 10/5/4 pieces or per piece.



For drilling holes in stainless steel, non-ferrous metal and superalloys.

specifications

Brand Hepyc
Reference 1106
Cutting material HSS-Co5
Coating -
Standard DIN 338
Type W
Point 135° - Split point
Helix 35°
Cutting direction Right-hand
Shank Straight

material

Articles

Article code ø mm L x l mm
11060000100 1,00 34 x 12
11060000125 1,25 38 x 16
11060000150 1,50 40 x 18
11060000200 2,00 49 x 24
11060000225 2,25 53 x 27
11060000250 2,50 57 x 30
11060000275 2,75 61 x 33
11060000300 3,00 61 x 33
11060000310 3,10 65 x 36
11060000320 3,20 65 x 36
11060000325 3,25 65 x 36
11060000330 3,30 65 x 36
11060000340 3,40 70 x 39
11060000350 3,50 70 x 39
11060000375 3,75 70 x 39
11060000400 4,00 75 x 43
11060000410 4,10 75 x 43
11060000420 4,20 75 x 43
11060000425 4,25 75 x 43
11060000450 4,50 80 x 47
11060000475 4,75 80 x 47
11060000500 5,00 86 x 52
11060000510 5,10 86 x 52
11060000520 5,20 86 x 52
11060000525 5,25 86 x 52
11060000550 5,50 93 x 57
11060000575 5,75 93 x 57
11060000600 6,00 93 x 57
11060000625 6,25 101 x 63
11060000650 6,50 101 x 63
11060000675 6,75 109 x 69
11060000700 7,00 109 x 69
11060000725 7,25 109 x 69
11060000750 7,50 109 x 69
11060000800 8,00 117 x 75
11060000825 8,25 117 x 75
11060000850 8,50 117 x 75
11060000900 9,00 125 x 81
11060000950 9,50 125 x 81
11060001000 10,00 133 x 87
11060001025 10,25 133 x 87
11060001050 10,50 133 x 87
11060001100 11,00 142 x 94
11060001150 11,50 142 x 94
11060001200 12,00 151 x 101
11060001250 12,50 151 x 101
11060001300 13,00 151 x 101
