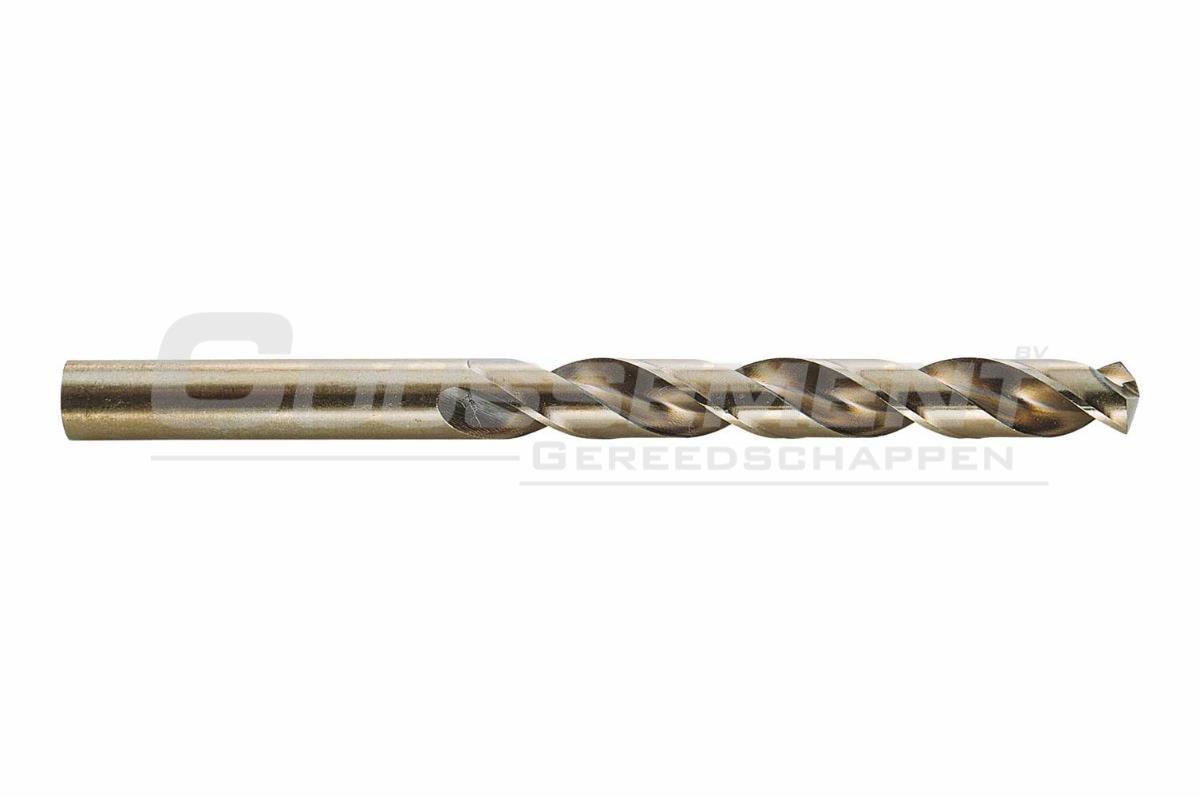

Twist Drill Bit HSS-Co5 DIN 338 N Hepyc 1105


Twist drill bit HSS-Co5, according to standard DIN 338, type N, with straight shank, equiped with split point top corner. Brand Hepyc with reference 1105.
Available in standard packaging per 10/5/4 pieces or per piece.



For drilling holes in steel, stainless steel, cast iron and non-ferrous metal.

specifications

Brand Hepyc
Reference 1105
Cutting material HSS-Co5
Coating -
Standard DIN 338
Type N
Point 135° - Split point
Helix 30°
Cutting direction Right-hand
Shank Straight

material

Articles

Article code ø mm L x l mm
11050000050 0,50 22 x 6
11050000060 0,60 24 x 7
11050000070 0,70 28 x 9
11050000075 0,75 28 x 9
11050000080 0,80 30 x 10
11050000090 0,90 32 x 11
11050000100 1,00 34 x 12
11050000110 1,10 36 x 14
11050000120 1,20 38 x 16
11050000125 1,25 38 x 16
11050000130 1,30 38 x 16
11050000140 1,40 40 x 18
11050000150 1,50 40 x 18
11050000160 1,60 43 x 20
11050000170 1,70 43 x 20
11050000175 1,75 46 x 22
11050000180 1,80 46 x 22
11050000190 1,90 46 x 22
11050000200 2,00 49 x 24
11050000210 2,10 49 x 24
11050000220 2,20 53 x 27
11050000225 2,25 53 x 27
11050000230 2,30 53 x 27
11050000240 2,40 57 x 30
11050000250 2,50 57 x 30
11050000260 2,60 57 x 30
11050000270 2,70 61 x 33
11050000275 2,75 61 x 33
11050000280 2,80 61 x 33
11050000290 2,90 61 x 33
11050000300 3,00 61 x 33
11050000310 3,10 65 x 36
11050000320 3,20 65 x 36
11050000325 3,25 65 x 36
11050000330 3,30 70 x 39
11050000340 3,40 70 x 39
11050000350 3,50 70 x 39
11050000360 3,60 70 x 39
11050000370 3,70 70 x 39
11050000375 3,75 70 x 39
11050000380 3,80 75 x 43
11050000390 3,90 75 x 43
11050000400 4,00 75 x 43
11050000410 4,10 75 x 43
11050000420 4,20 75 x 43
11050000425 4,25 75 x 43
11050000430 4,30 80 x 47
11050000440 4,40 80 x 47
11050000450 4,50 80 x 47
11050000460 4,60 80 x 47
11050000470 4,70 80 x 47
11050000475 4,75 80 x 47
11050000480 4,80 86 x 52
11050000490 4,90 86 x 52
11050000500 5,00 86 x 52
11050000510 5,10 86 x 52
11050000520 5,20 86 x 52
11050000525 5,25 86 x 52
11050000530 5,30 86 x 52
11050000540 5,40 93 x 57
11050000550 5,50 93 x 57
11050000560 5,60 93 x 57
11050000570 5,70 93 x 57
11050000575 5,75 93 x 57
11050000580 5,80 93 x 57
11050000590 5,90 93 x 57
11050000600 6,00 93 x 57
11050000610 6,10 101 x 63
11050000620 6,20 101 x 63
11050000625 6,25 101 x 63
11050000630 6,30 101 x 63
11050000640 6,40 101 x 63
11050000650 6,50 101 x 63
11050000660 6,60 101 x 63
11050000670 6,70 101 x 63
11050000675 6,75 109 x 69
11050000680 6,80 109 x 69
11050000690 6,90 109 x 69
11050000700 7,00 109 x 69
11050000710 7,10 109 x 69
11050000720 7,20 109 x 69
11050000725 7,25 109 x 69
11050000730 7,30 109 x 69
11050000740 7,40 109 x 69
11050000750 7,50 109 x 69
11050000760 7,60 117 x 75
11050000770 7,70 117 x 75
11050000775 7,75 117 x 75
11050000780 7,80 117 x 75
11050000790 7,90 117 x 75
11050000800 8,00 117 x 75
11050000810 8,10 117 x 75
11050000820 8,20 117 x 75
11050000825 8,25 117 x 75
11050000830 8,30 117 x 75
11050000840 8,40 117 x 75
11050000850 8,50 117 x 75
11050000860 8,60 125 x 81
11050000870 8,70 125 x 81
11050000875 8,75 125 x 81
11050000880 8,80 125 x 81
11050000890 8,90 125 x 81
11050000900 9,00 125 x 81
11050000910 9,10 125 x 81
11050000920 9,20 125 x 81
11050000925 9,25 125 x 81
11050000930 9,30 125 x 81
11050000940 9,40 125 x 81
11050000950 9,50 125 x 81
11050000960 9,60 133 x 87
11050000970 9,70 133 x 87
11050000975 9,75 133 x 87
11050000980 9,80 133 x 87
11050000990 9,90 133 x 87
11050001000 10,00 133 x 87
11050001010 10,10 133 x 87
11050001020 10,20 133 x 87
11050001025 10,25 133 x 87
11050001030 10,30 133 x 87
11050001040 10,40 133 x 87
11050001050 10,50 133 x 87
11050001060 10,60 133 x 87
11050001070 10,70 142 x 94
11050001075 10,75 142 x 94
11050001080 10,80 142 x 94
11050001090 10,90 142 x 94
11050001100 11,00 142 x 94
11050001110 11,10 142 x 94
11050001120 11,20 142 x 94
11050001125 11,25 142 x 94
11050001130 11,30 142 x 94
11050001140 11,40 142 x 94
11050001150 11,50 142 x 94
11050001160 11,60 142 x 94
11050001170 11,70 142 x 94
11050001175 11,75 142 x 94
11050001180 11,80 142 x 94
11050001190 11,90 151 x 101
11050001200 12,00 151 x 101
11050001210 12,10 151 x 101
11050001220 12,20 151 x 101
11050001225 12,25 151 x 101
11050001230 12,30 151 x 101
11050001240 12,40 151 x 101
11050001250 12,50 151 x 101
11050001260 12,60 151 x 101
11050001270 12,70 151 x 101
11050001275 12,75 151 x 101
11050001280 12,80 151 x 101
11050001290 12,90 151 x 101
11050001300 13,00 151 x 101
11050001350 13,50 160 x 108
11050001400 14,00 160 x 108
11050001450 14,50 169 x 114
11050001500 15,00 169 x 114
11050001550 15,50 178 x 120
11050001600 16,00 178 x 120
11050001650 16,50 184 x 125
11050001700 17,00 184 x 125
11050001750 17,50 191 x 130
11050001800 18,00 191 x 130
11050001850 18,50 198 x 125
11050001900 19,00 198 x 125
11050001950 19,50 205 x 140
11050002000 20,00 205 x 140
