Twist Drill Bit HSS Widia DIN 345 N Hepyc 1123

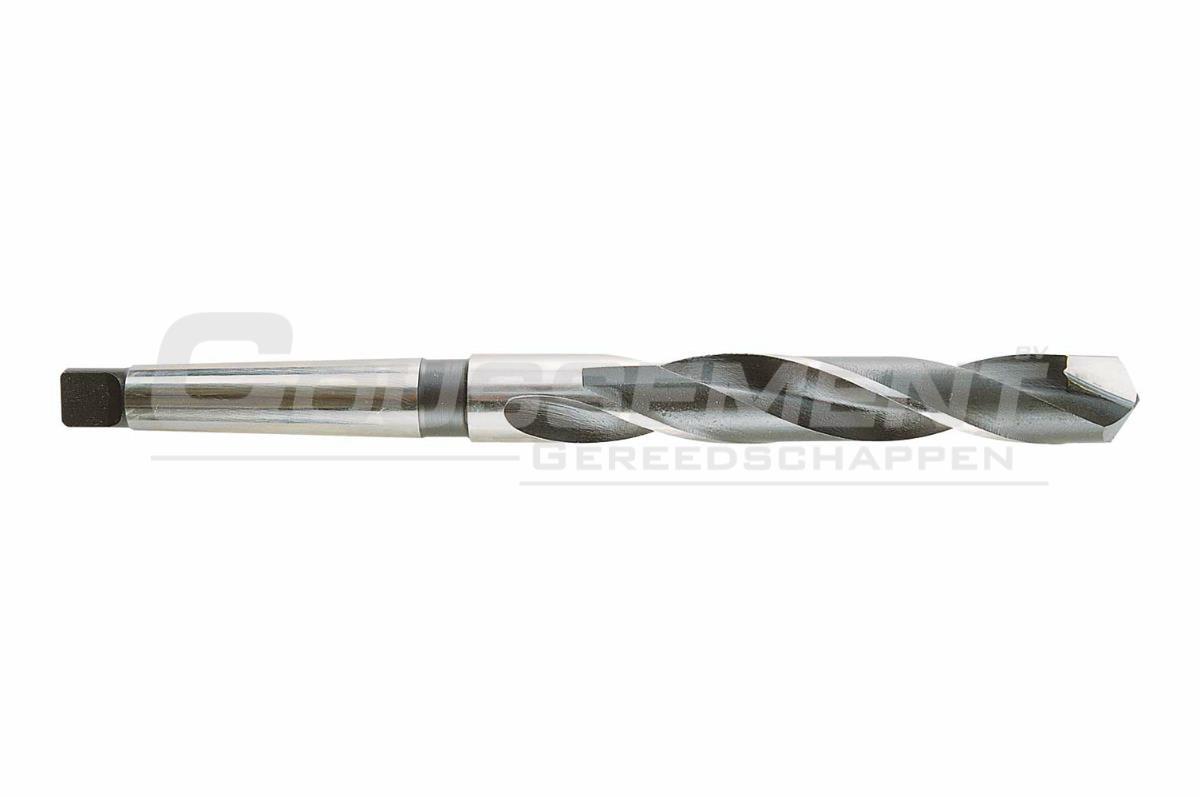

Twist drill bit HSS, according to standard DIN 345, type N, with morse taper shank, equiped with Widia point. Brand Hepyc with reference 1123.



For drilling holes in steel, cast iron and non-ferrous metal.

specifications

Brand Hepyc
Reference 1123
Cutting material HSS - Widia
Coating -
Standard DIN 345
Type N
Point 118°
Helix 25°
Cutting direction Right-hand
Shank Morse taper

material

Articles

Article code ø mm ø mm MT L x l mm
11230001000 10,00 1 168 x 87
11230001100 11,00 1 175 x 94
11230001200 12,00 1 182 x 101
11230001300 13,00 1 182 x 101
11230001400 14,00 1 189 x 108
11230001450 14,50 1 212 x 114
11230001500 15,00 2 212 x 114
11230001550 15,50 2 218 x 120
11230001600 16,00 2 218 x 120
11230001650 16,50 2 223 x 125
11230001700 17,00 2 223 x 125
11230001750 17,50 2 228 x 130
11230001800 18,00 2 228 x 130
11230001850 18,50 2 233 x 135
11230001900 19,00 2 233 x 135
11230001950 19,50 2 238 x 140
11230002000 20,00 2 238 x 140
11230002050 20,50 2 243 x 145
11230002100 21,00 2 243 x 145
11230002150 21,50 2 248 x 150
11230002200 22,00 2 248 x 150
11230002250 22,50 2 253 x 155
11230002300 23,00 2 253 x 155
11230002400 24,00 3 281 x 160
11230002500 25,00 3 281 x 160
11230002600 26,00 3 286 x 165
11230002700 27,00 3 291 x 170
11230002800 28,00 3 291 x 170
11230002900 29,00 3 296 x 175
11230003000 30,00 3 296 x 175
