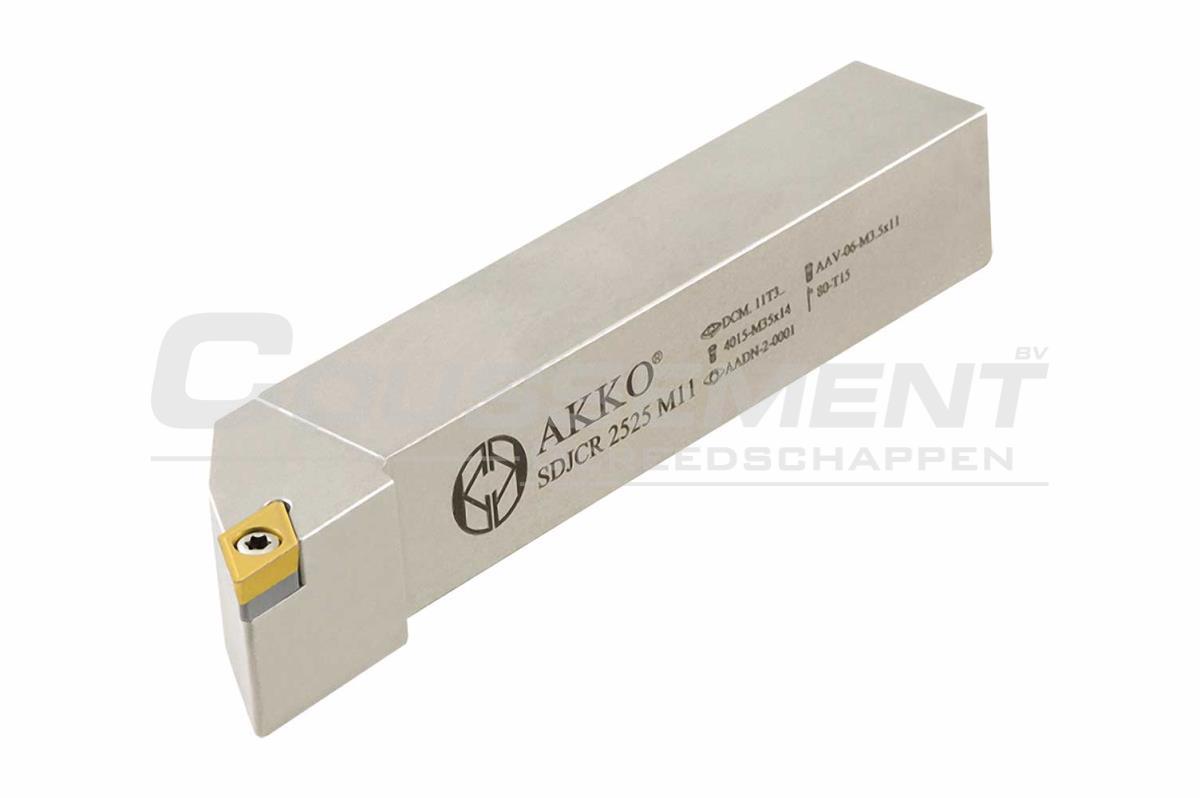

External Turning Toolholder SDJCR/L Akko SDJC

External turning toolholder, according to ISO code SDJCR (right-hand) or SDJCL (left-hand). Brand Akko with reference SDJC.

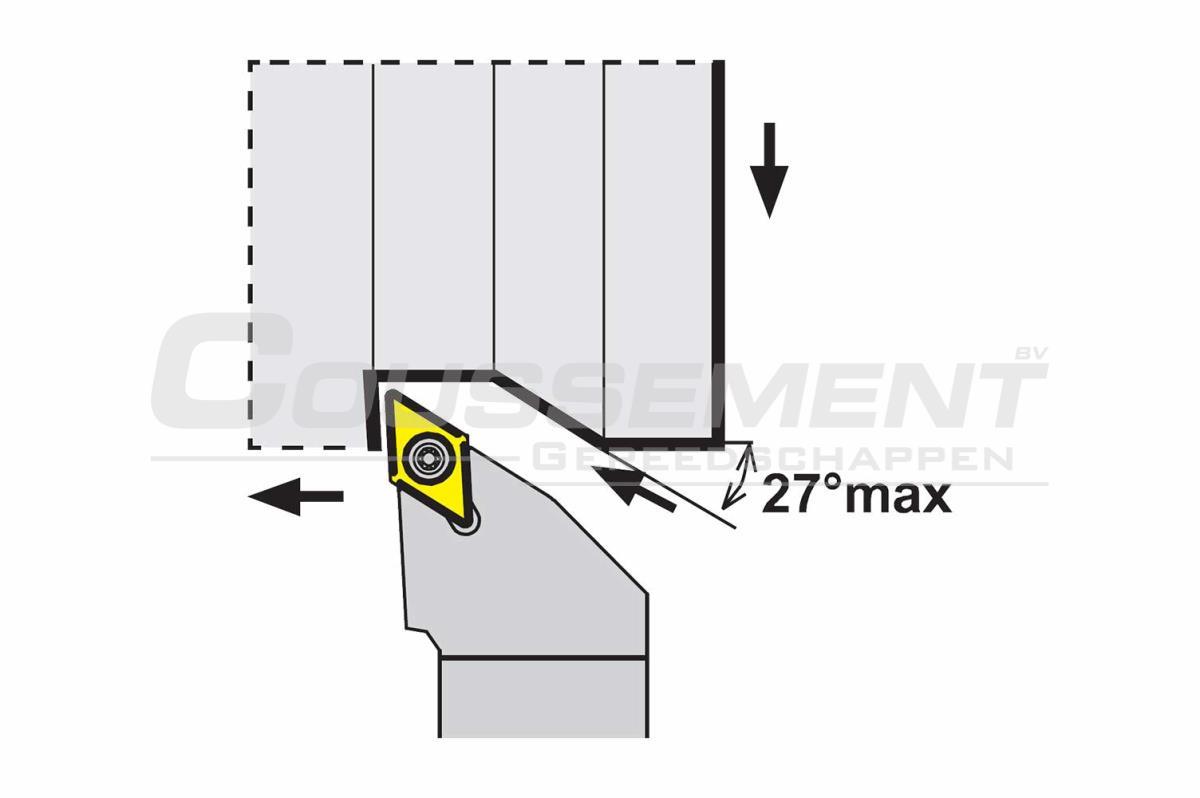

For clamping turning insert DC.T, for external turning with right or left direction of rotation according to turning toolholder.

specifications

Brand Akko
Reference SDJC
ISO code SDJCR (Right-hand) / SDJCL (Left-hand)
Type External
Coolant -
Clamping Screw clamping
Entering angle (KAPR) 93°
Cutting direction Right-hand / Left-hand
Shank Square

articles Dc.T 0702..

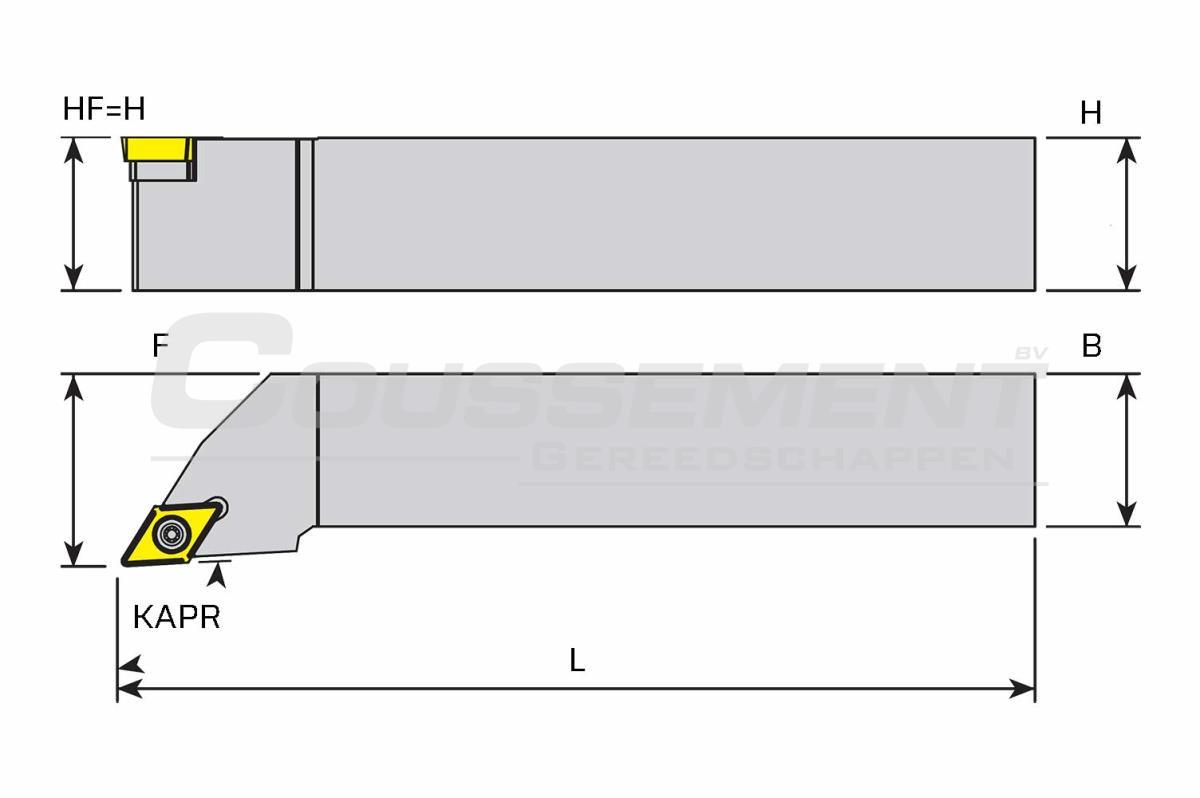

Article code H mm B mm L mm F mm
SDJCR 0808 E07 8 8 70 10
SDJCL 0808 E07 8 8 70 10
SDJCR 1010 E07 10 10 70 12
SDJCL 1010 E07 10 10 70 12
SDJCR 1212 F07 12 12 80 16
SDJCL 1212 F07 12 12 80 16
SDJCR 1616 H07 16 16 100 20
SDJCL 1616 H07 16 16 100 20

articles dc.t 11t3..

Article code H mm B mm L mm F mm
SDJCR 1616 H11 16 16 100 20
SDJCL 1616 H11 16 16 100 20
SDJCR 2020 K11 20 20 125 25
SDJCL 2020 K11 20 20 125 25
SDJCR 2525 M11 25 25 150 32
SDJCL 2525 M11 25 25 150 32
SDJCR 3232 P11 32 32 170 40
SDJCL 3232 P11 32 32 170 40
