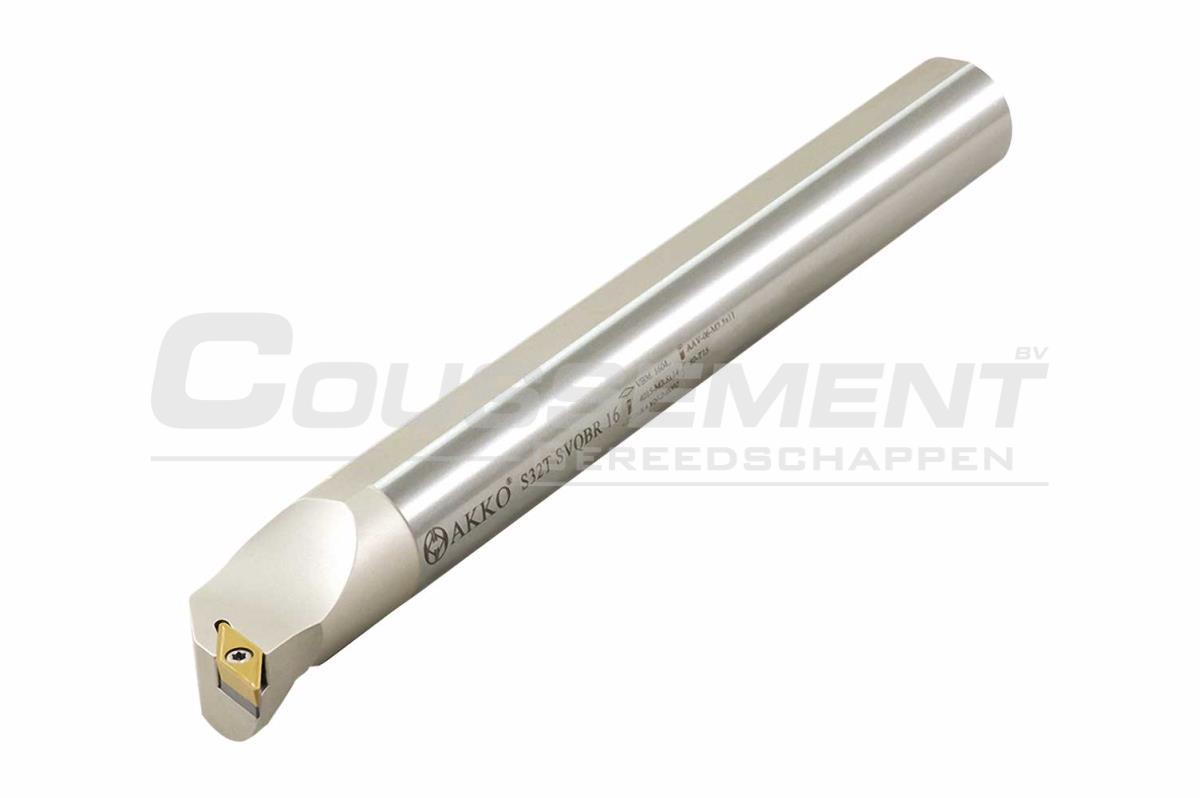

Boring Bar With Internal Coolant SVQBR/L Akko A-SVQB

Boring bar, according to ISO code SVQBR (right-hand) or SVQBL (left-hand), equiped with internal coolant. Brand Akko with reference A-SVQB.

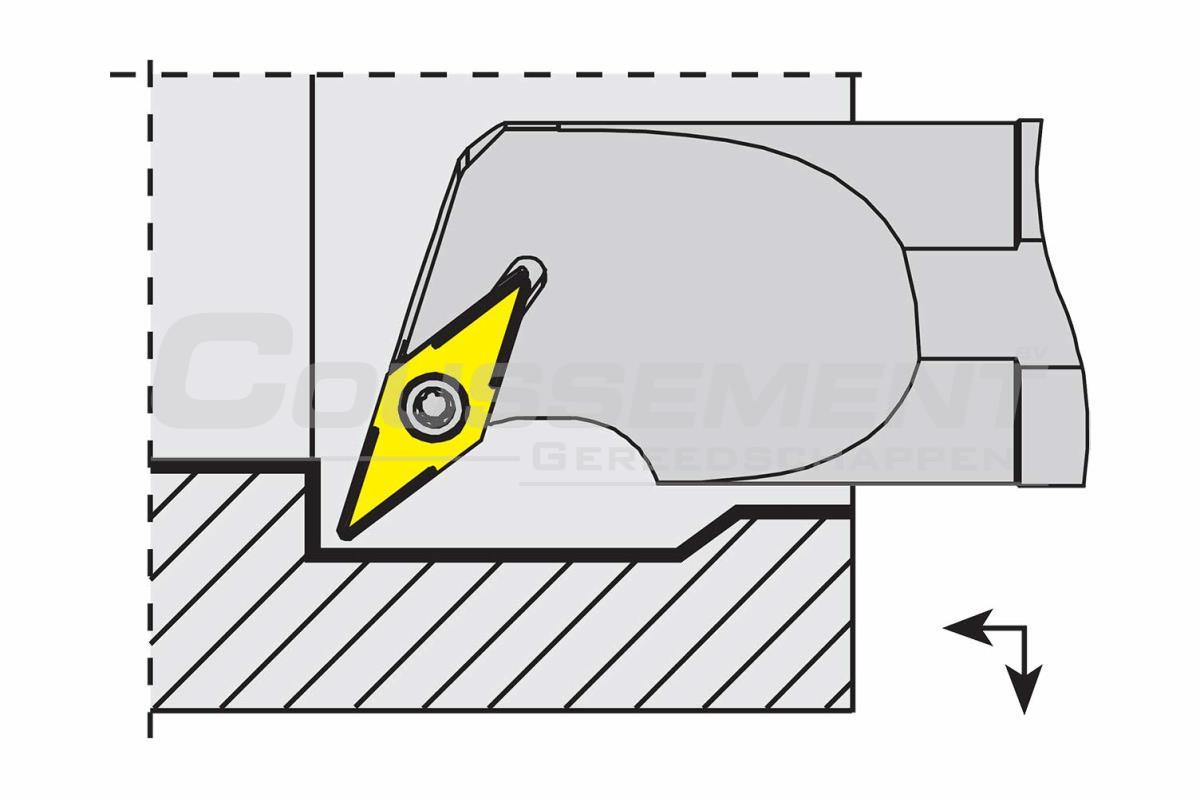

For clamping turning insert VB.T, for internal turning with right or left direction of rotation according to turning toolholder.

specifications

Brand Akko
Reference A-SVQB
ISO code SVQBR (Right-hand) / SVQBL (Left-hand)
Type Internal
Coolant Internal coolant
Clamping Screw clamping
Entering angle (KAPR) 107,5°
Cutting direction Right-hand / Left-hand
Shank Rectangular, rounded

articles VB.t 1103..

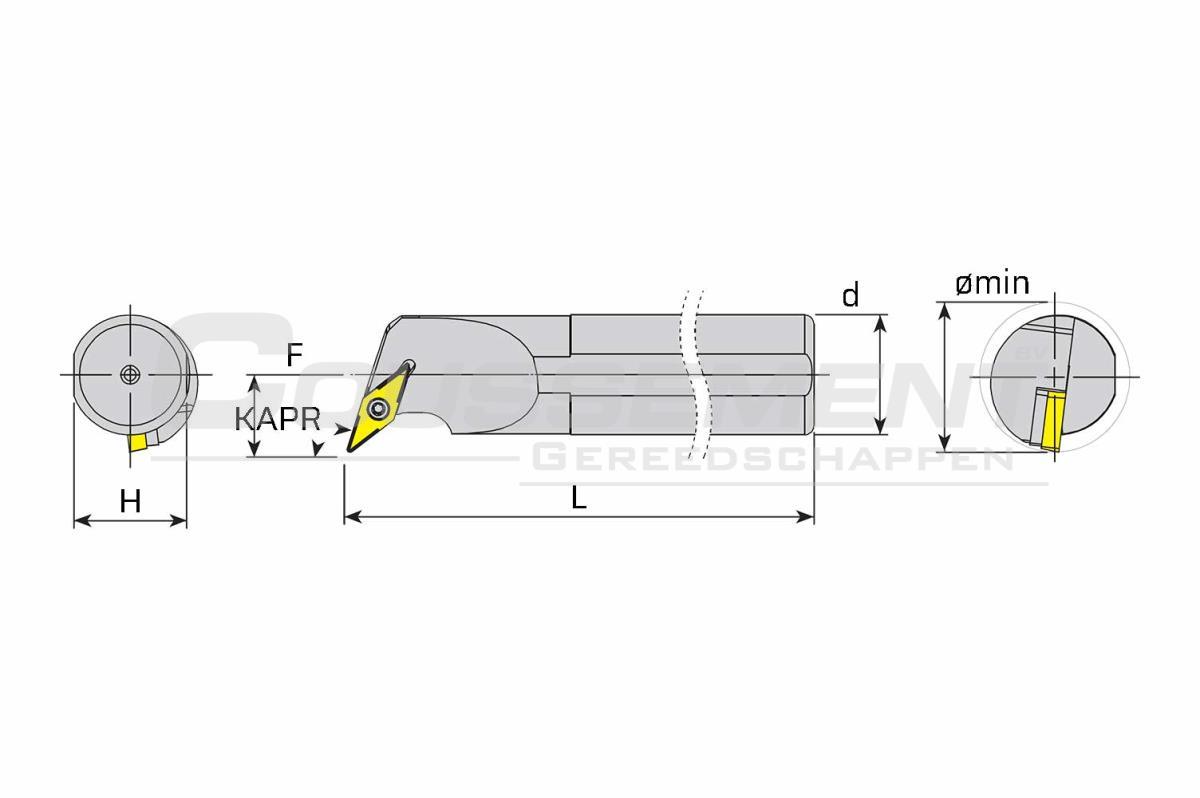

Article code d mm H mm L x l mm F mm ømin mm
A20Q SVQBR 11 20 18,5 180 13 25
A20Q SVQBL 11 20 18,5 180 13 25

ARTIcles VB.T 1604..

Article code d mm H mm L x l mm F mm  ømin mm
A20Q SVQBR 16 20 18,5 180 20 30
A20Q SVQBL 16 20 18,5 180 20 30
A25S SVQBR 16 25 23 250 17 32
A25S SVQBL 16 25 23 250 17 32
A32S SVQBR 16 32 30 250 22 40
A32S SVQBL 16 32 30 250 22 40
