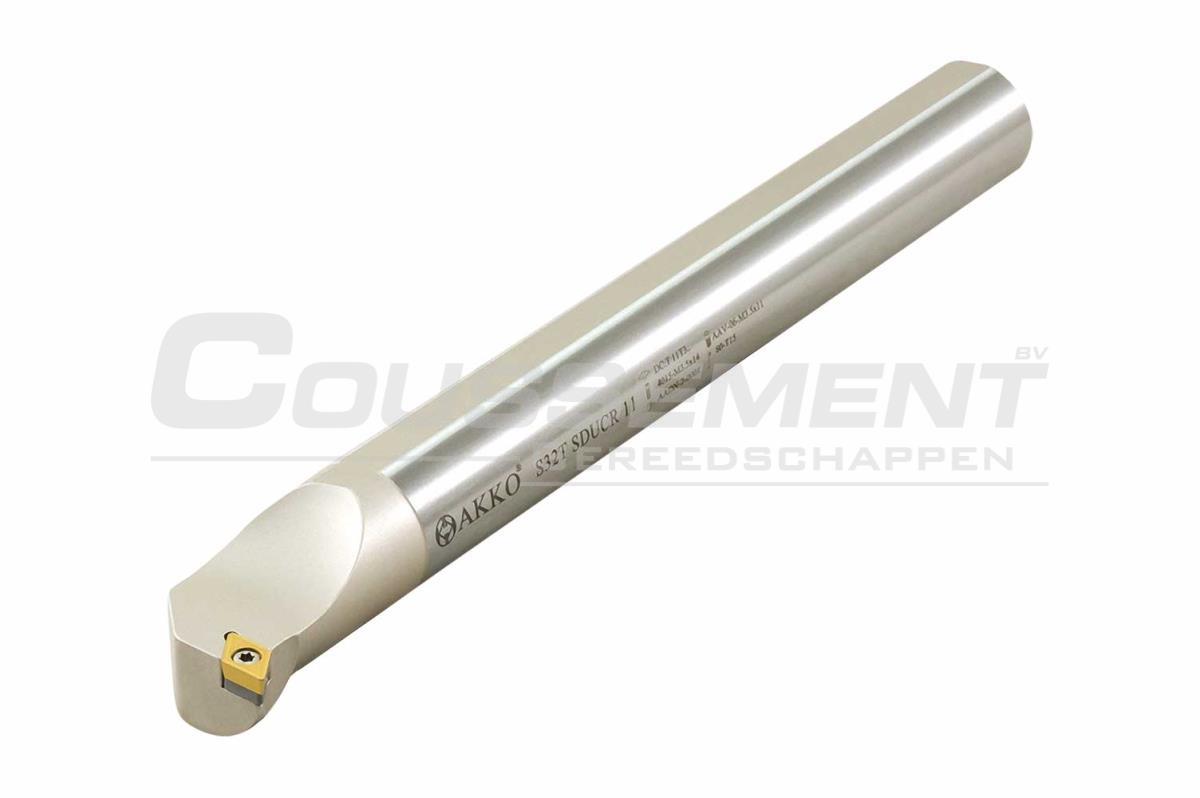

Boring Bar SDUCR/L Akko S-SDUC

Boring bar, according to ISO code SDUCR (right-hand) or SDUCL (left-hand). Brand Akko with reference S-SDUC.

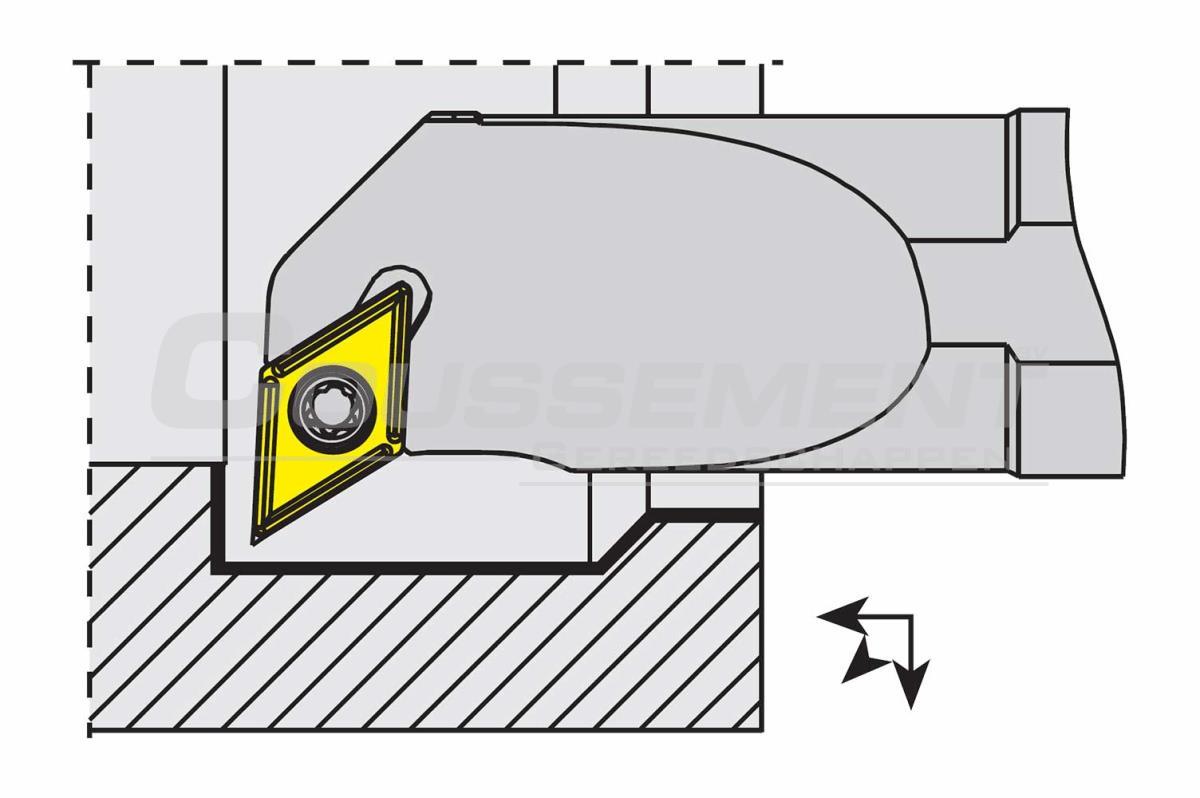

For clamping turning insert DC.T, for internal turning with right or left direction of rotation according to turning toolholder.

specifications

Brand	Akko
Reference	S-SDUC
ISO code	SDUCR (Right-hand) / SDUCL (Left-hand)
Type	Internal
Coolant	-
Clamping	Screw clamping
Entering angle (KAPR)	93°
Cutting direction	Right-hand / Left-hand
Shank	Rectangular, rounded

articles Dc.T 0702..

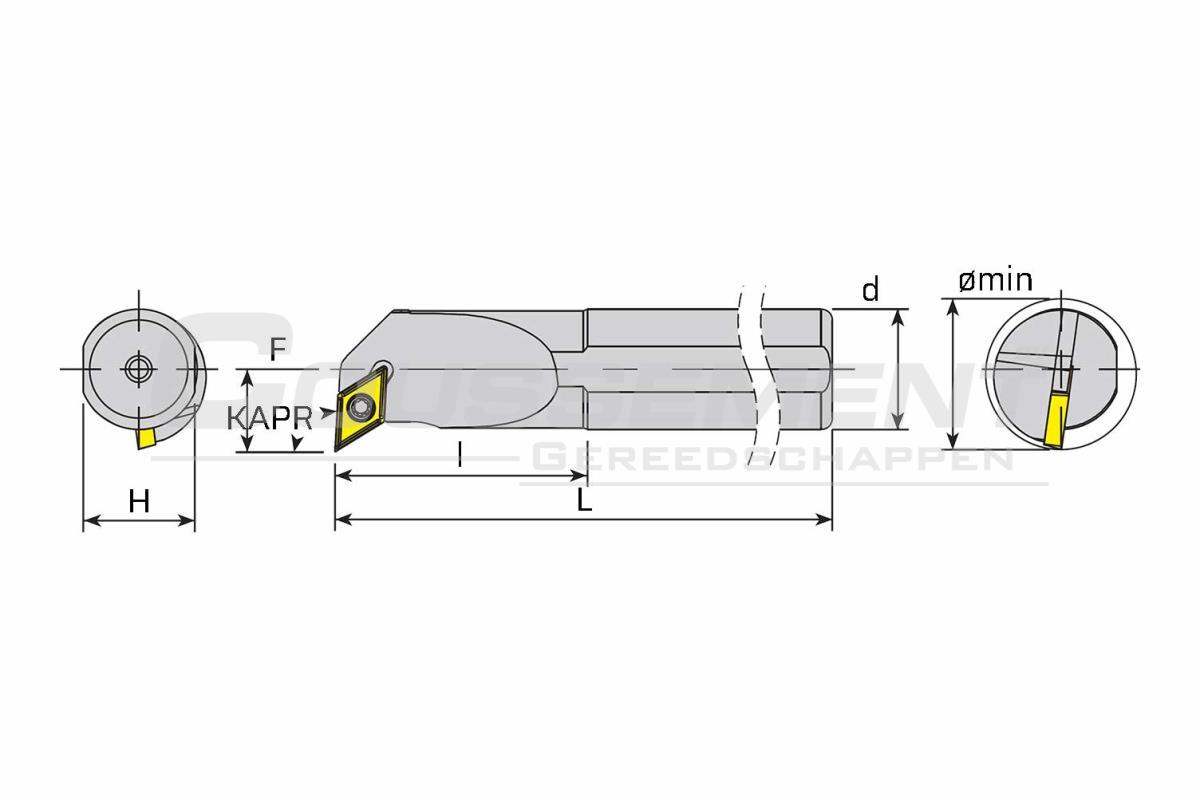

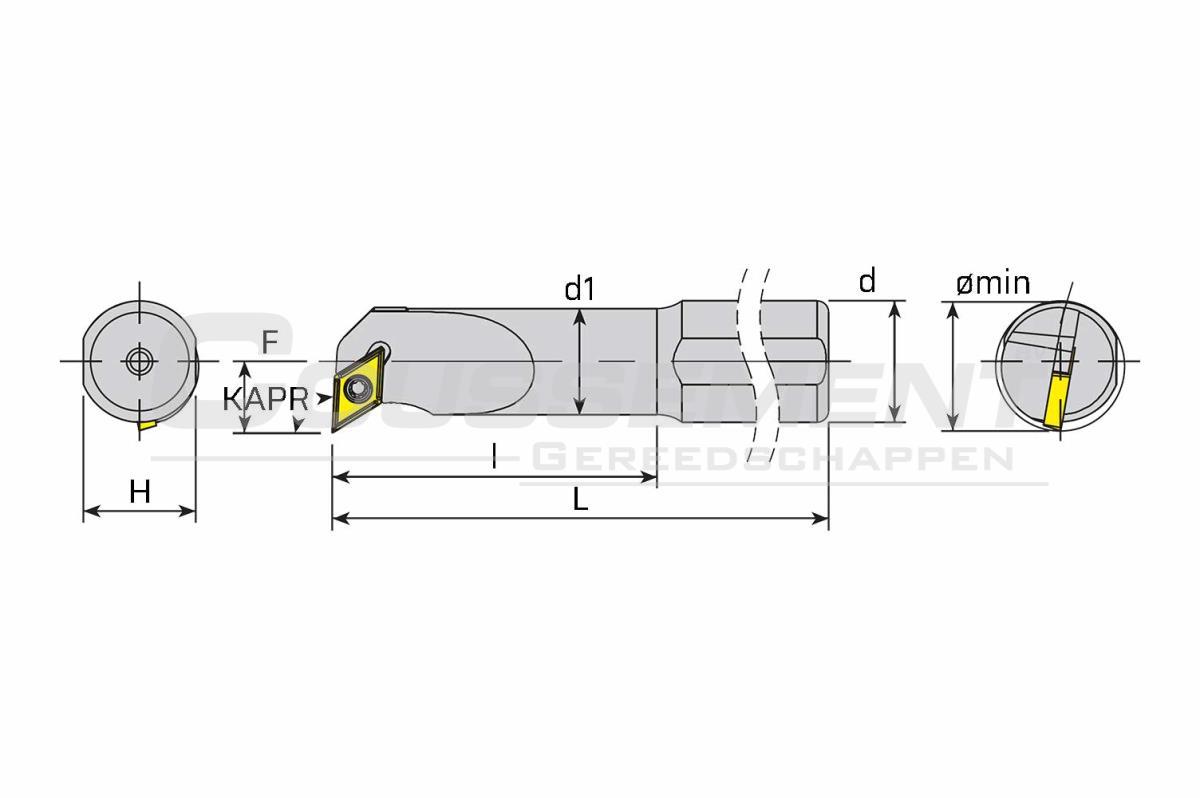

Article code	d (x d1) mm	H mm	L x l mm	F mm	ømin mm
S0810K SDUCR 07	10 x 8	9	125 x 30	8	13
S0810K SDUCL 07	10 x 8	9	125 x 30	8	13
S10K SDUCR 07	10	9	125 x 25	8	13
S10K SDUCL 07	10	9	125 x 25	8	13
S12K SDUCR 07	12	11	125 x 25	9	16
S12K SDUCL 07	12	11	125 x 25	9	16
S1216P SDUCR 07	16 x 11,5	14,8	170 x 37	9	16
S1216P SDUCL 07	16 X 11,5	14,8	170 x 37	9	16
S1416P SDUCR 07	16 x 14	14,8	170 x 45	9,5	17
S1416P SDUCL 07	16 x 14	14,8	170 x 45	9,5	17
S16P SDUCR 07	16	14,8	170 x 35	11	20
S16P SDUCL 07	16	14,8	170 x 35	11	20
S20R SDUCR 07	20	18,3	200 x 40	13	25
S20R SDUCL 07	20	18,3	200 x 40	13	25

articles Dc.t 11t3

Article code	d (x d1) mm	H mm	L x l mm	F mm	ømin mm
S1416P SDUCR 11	16 x 14	14,8	170 x 45	11	18
S1416P SDUCL 11	16 x 14	14,8	170 x 45	11	18
S16P SDUCR 11	16	14,8	170 x 35	11	20
S16P SDUCL 11	16	14,8	170 x 35	11	20
S1620R SDUCR 11	20 x 16	18,3	200 x 50	11	20
S1620R SDUCL 11	20 x 16	18,3	200 x 50	11	20
S20R SDUCR11	20	18,3	200 x 40	13	25
S20R SDUCL 11	20	18,3	200 x 40	13	25
S25S SDUCR 11	25	23	250 x 50	17	32
S25S SDUCL 11	25	23	250 x 50	17	32
S32T SDUCR 11	32	30	300 x 60	22	40
S32T SDUCL 11	32	30	300 x 60	22	40
S40U SDUCR 11	40	37,5	350 x 70	27	50
S40U SDUCL 11	40	37,5	350 x 70	27	50
S50V SDUCR 11	50	47	400 x 80	35	63
S50V SDUCL 11	50	47	400 x 80	35	63
